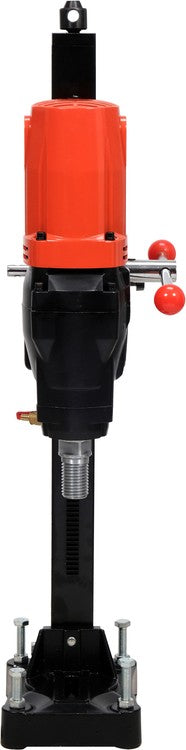

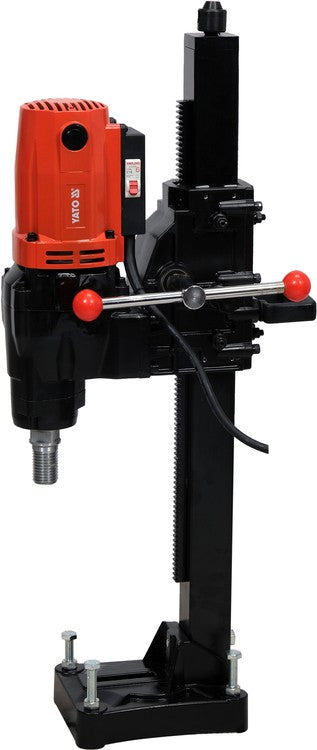

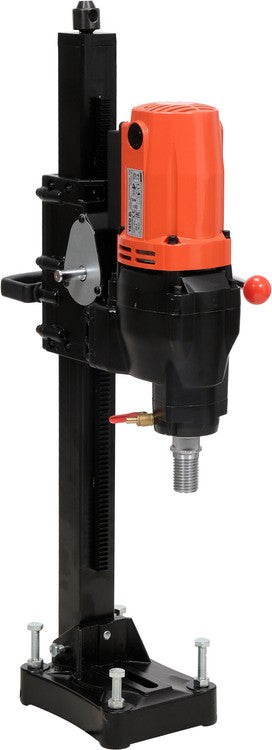

DIAMOND DRILL 2800W (YT-81983)

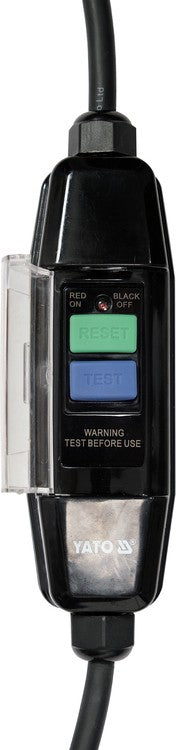

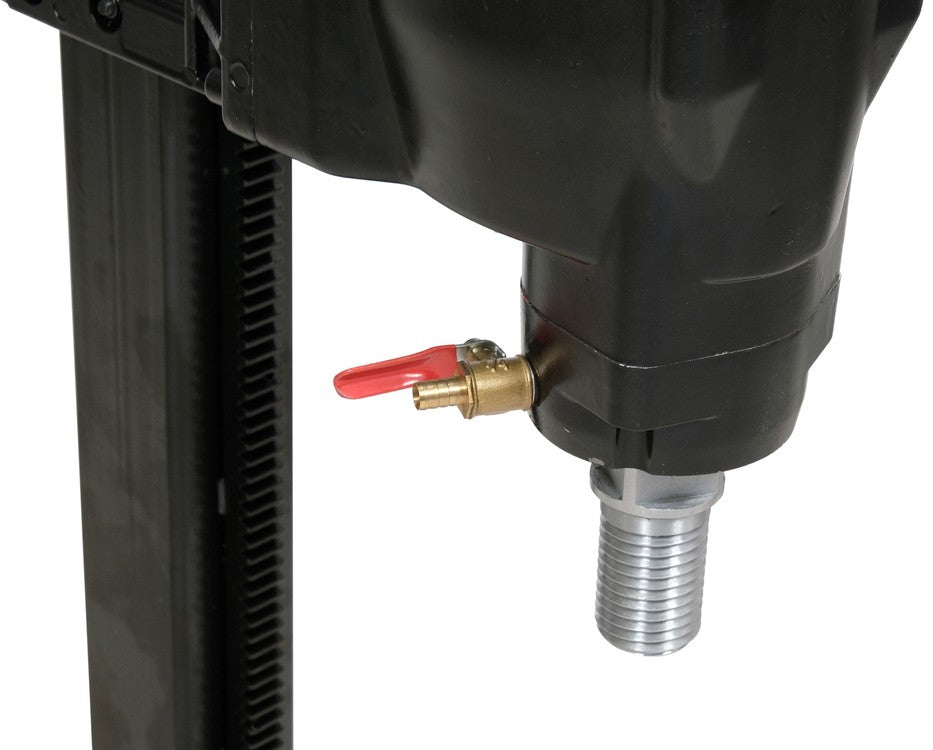

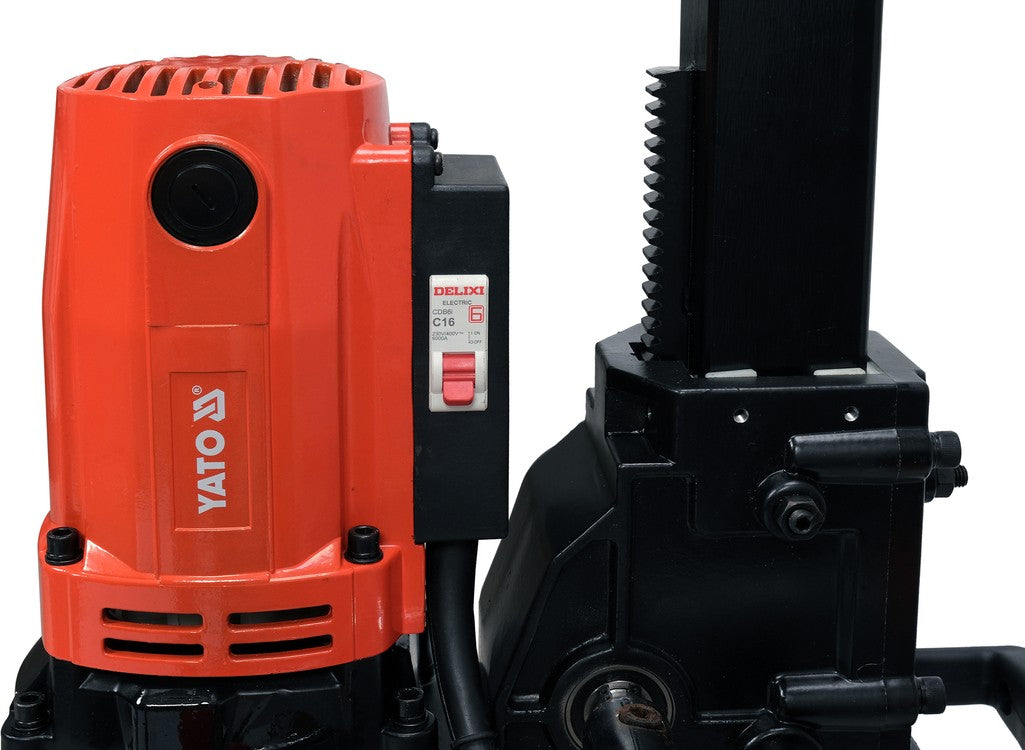

The YATO YT-81983 electric diamond core drill with a standard 1-1/4” UNC chuck is a versatile PRO+ class industrial tool designed for diamond drilling of reinforced concrete, concrete, or natural stone using specially designed drill bits. It is recommended for work with heating, ventilation, and air conditioning (HVAC) systems, laying cable or ventilation pipe routes, drilling sewage pipes through building ceilings, installing heat pumps or storm drains, renovating monuments, and performing other similar tasks. The device's planetary gear is made of 53-56HRC steel. This ensures the longevity of the mechanism and high torque, allowing this diamond drill to drill even the hardest materials. With the YATO YT-81983 diamond drill, you can use both dry and wet drilling methods. The motor's rotor and stator windings are made of 100% copper. Residual current protection is included. The motor has thermal overload protection. A comfortable stand with a handle allows drilling hard materials without exerting force. The device operates smoothly, drilling holes in reinforced concrete without jerking. The YATO YT-81983 diamond drill is water-cooled (1/4” connection).

The YATO YT-81983 diamond drill complies with the following European standards: EN 62841-1:2015, EN 61841-3-6:2014 + A11:2017, EN 55014-1:2017 + A11:2020, EN 55014-2:2015, EN IEC 61000-3-2:2019, and EN 61000-3-11:2000, and is manufactured in accordance with the requirements of European Union directives: 2006/42/EC Machinery and Safety Elements, 2014/30/EU Electromagnetic Compatibility (EMC) Directive, 2011/65/EU Restriction of the Use of Certain Hazardous Substances, and 2014/35/EU.

Rated power: 2800W

Rated speed: 700min-1

Chuck: 1-1/4” UNC

Drill bit diameter: 32-300mm

Drill bit length: 150-450mm

The YATO YT-81983 diamond drill comes complete with a stand, a YATO YT-86211 cordless sprayer, and a set of core drills: 32mm | 42mm | 52mm | 68mm | 82mm | 102mm | 122mm | 152mm | 182mm

Model year: 2021

Total weight [kg]: 22.0

YATO YT-81983 User Manual PDF
