DIAMOND DRILL 2200W (YT-81980)

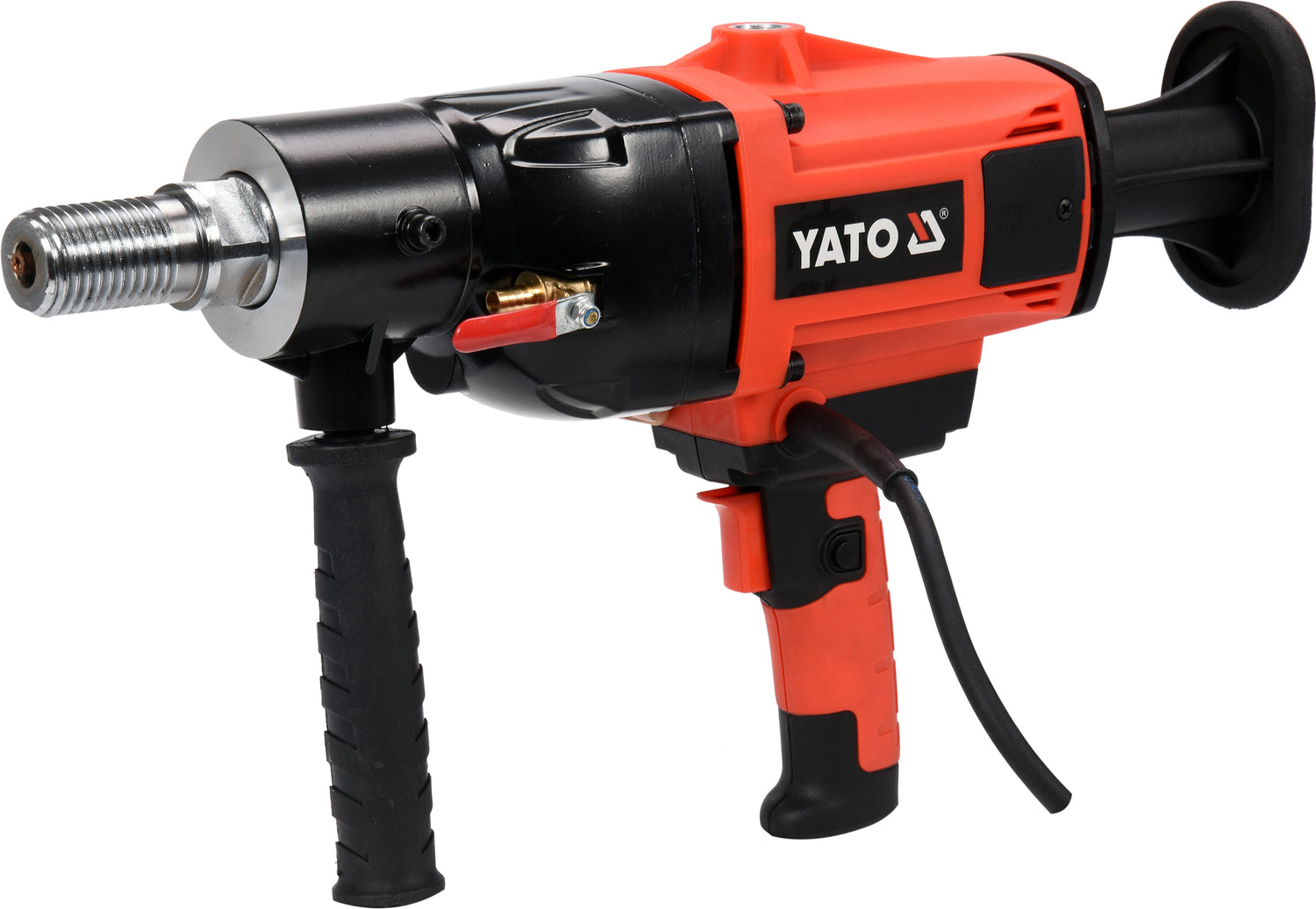

The YATO YT-81980 electric diamond drill with a standard 1-1/4” UNC chuck is a versatile PRO-class tool designed for diamond drilling of reinforced concrete with specialized drill bits. It is recommended for laying cable or ventilation pipe routes and performing other similar tasks. The machine can be used as a handheld tool or stationary, mounted on a sturdy stand. The comfortable stand with a handle allows drilling hard materials without applying force. The device operates smoothly, drilling holes in reinforced concrete without jerking. The YATO YT-81980 diamond drill is water-cooled (1/4” connection).

The YATO YT-81980 diamond drill complies with the following European standards: EN 62841-1:2015, EN 61841-3-6:2014 + A11:2017, EN 55014-1:2006 + A1:2009 + A2:2011, EN 55014-2:2015, EN 61000-3-2:2014, and EN 61000-3-3:2013, and is manufactured in accordance with the requirements of European Union directives: 2006/42/EC Machinery and Safety Elements, 2014/30/EU Electromagnetic Compatibility (EMC) Directive, 2011/65/EU Restriction of the Use of Certain Hazardous Substances.

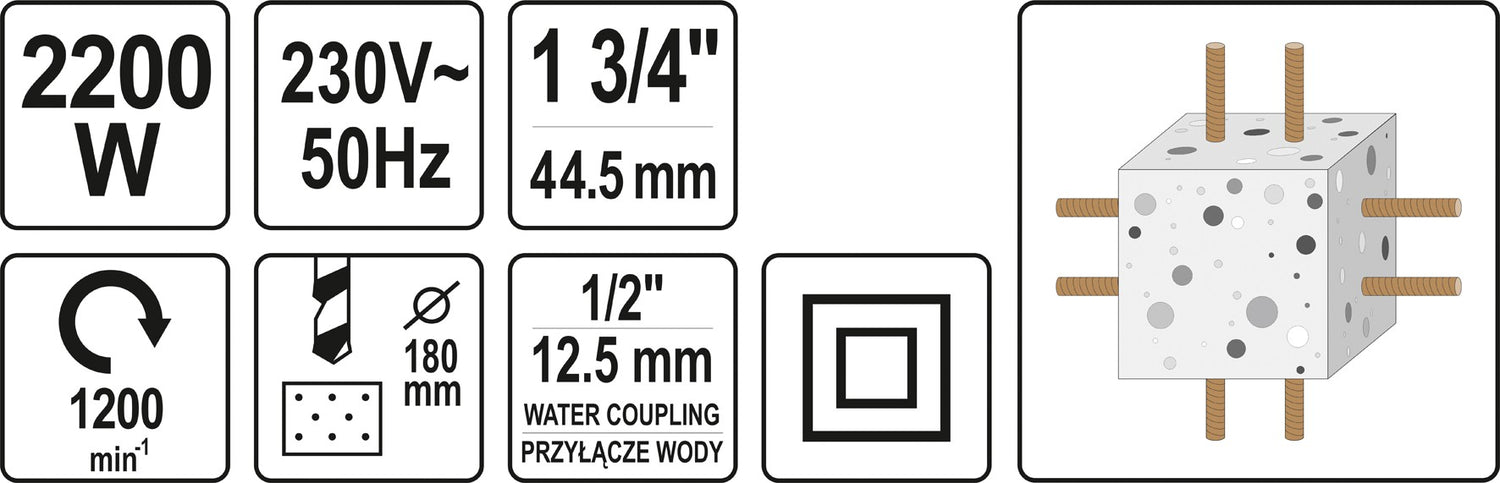

Rated power: 2200W

Rated speed: 0-1200min-1

Chuck: 1-1/4” UNC

Drill bit diameter: 12-180mm

Drill bit length: 150-450mm

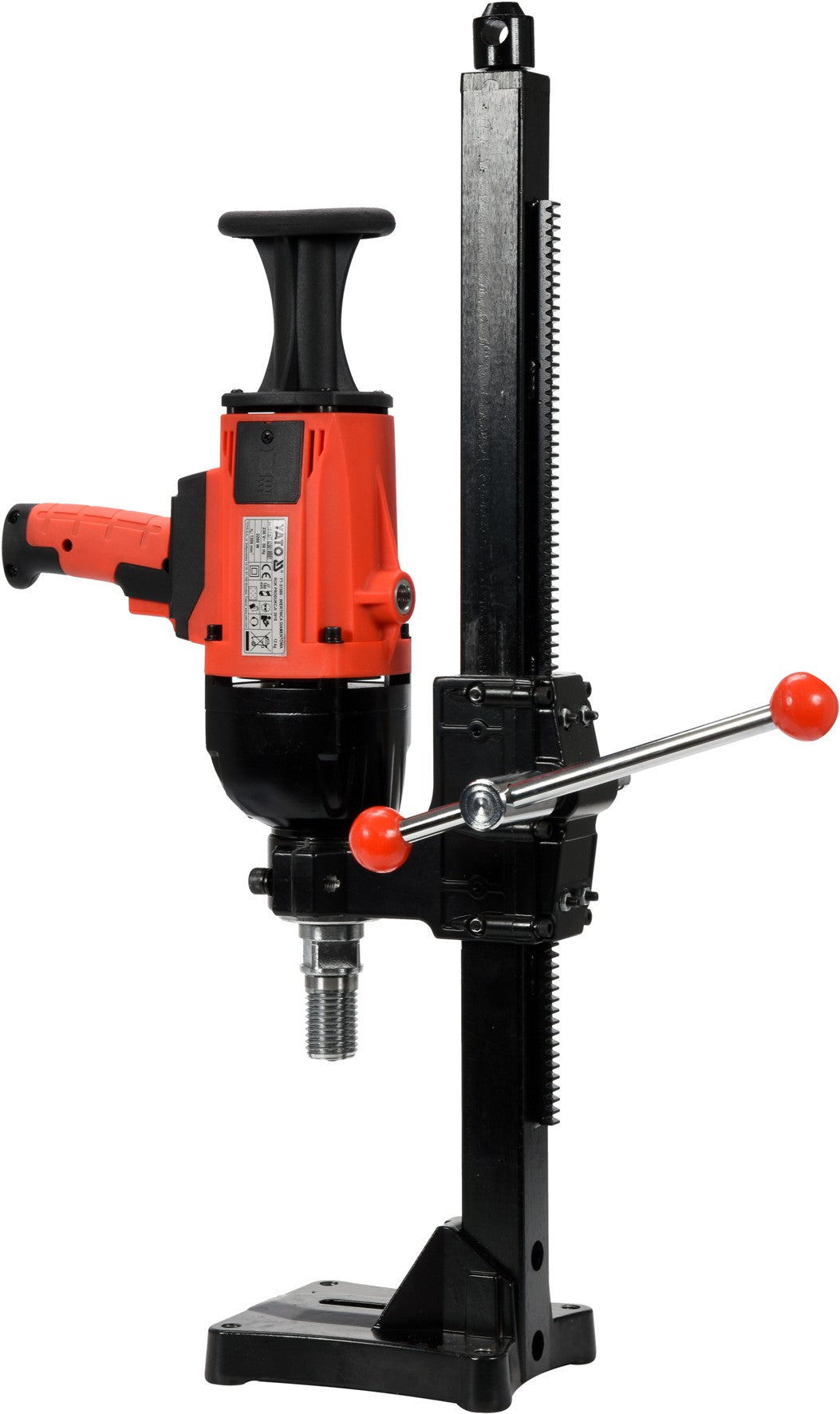

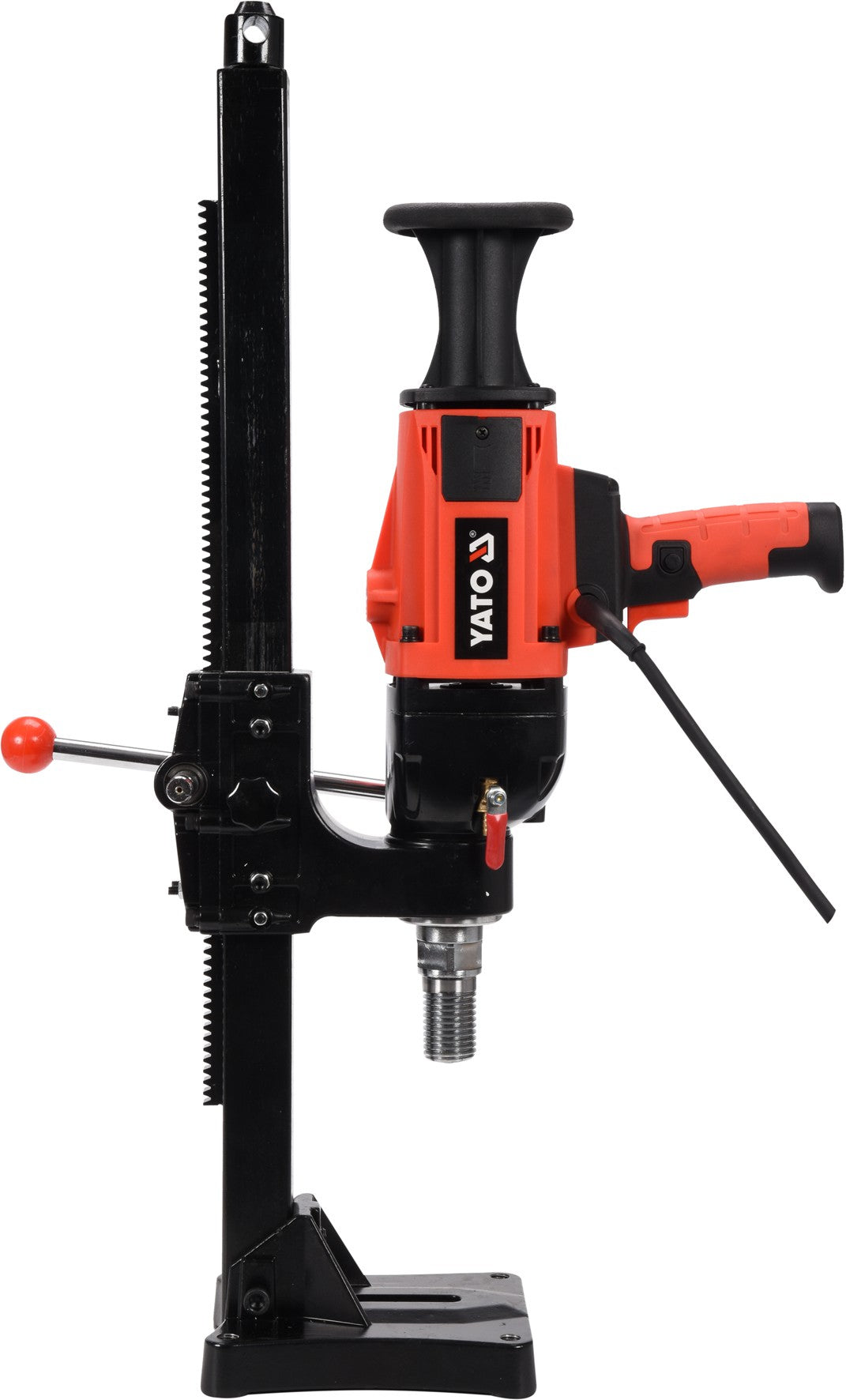

The YATO YT-81980 diamond drill comes with a stand.

Model year: 2020

Total weight [kg]: 12.0

YATO YT-81980 user manual PDF
