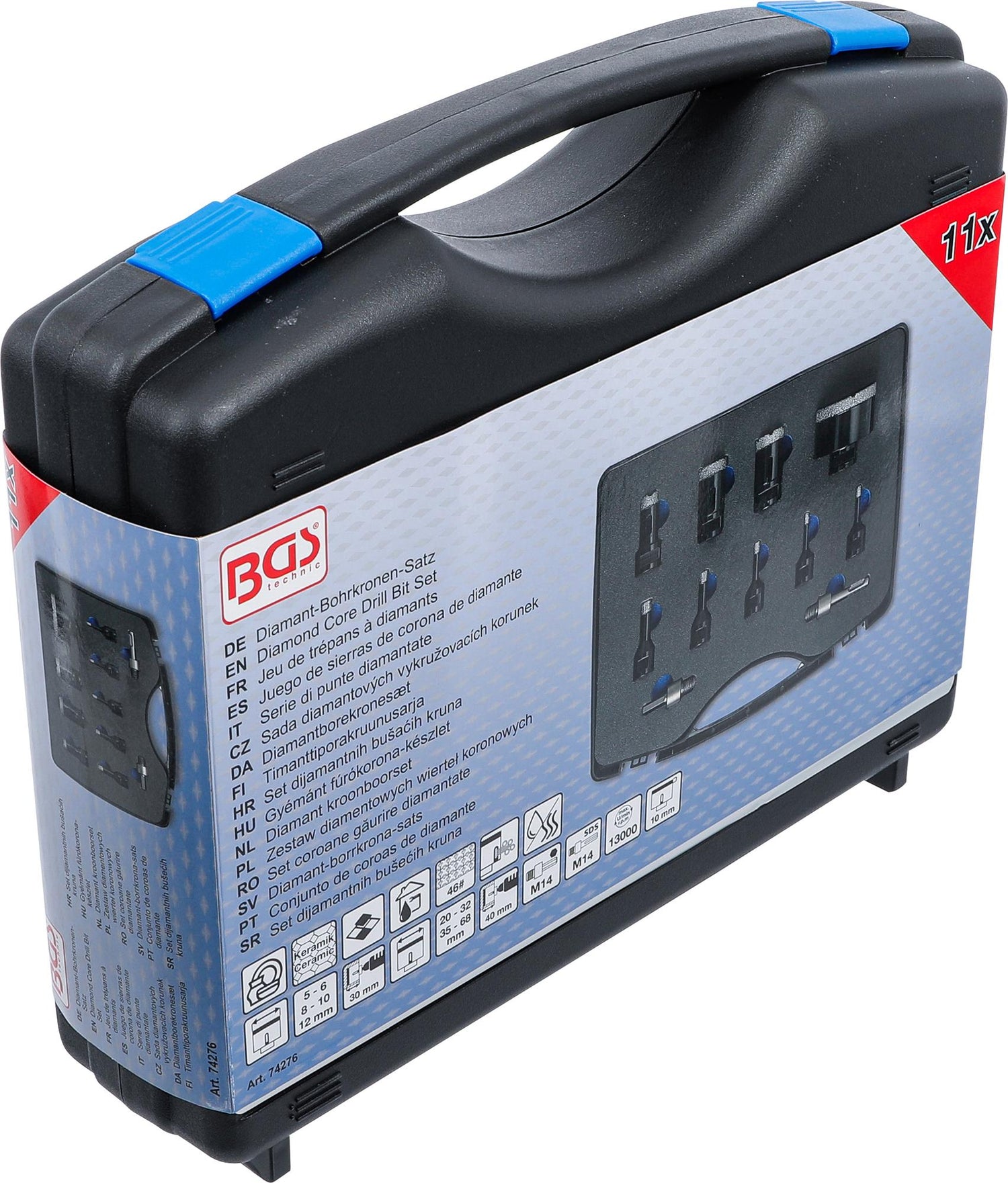

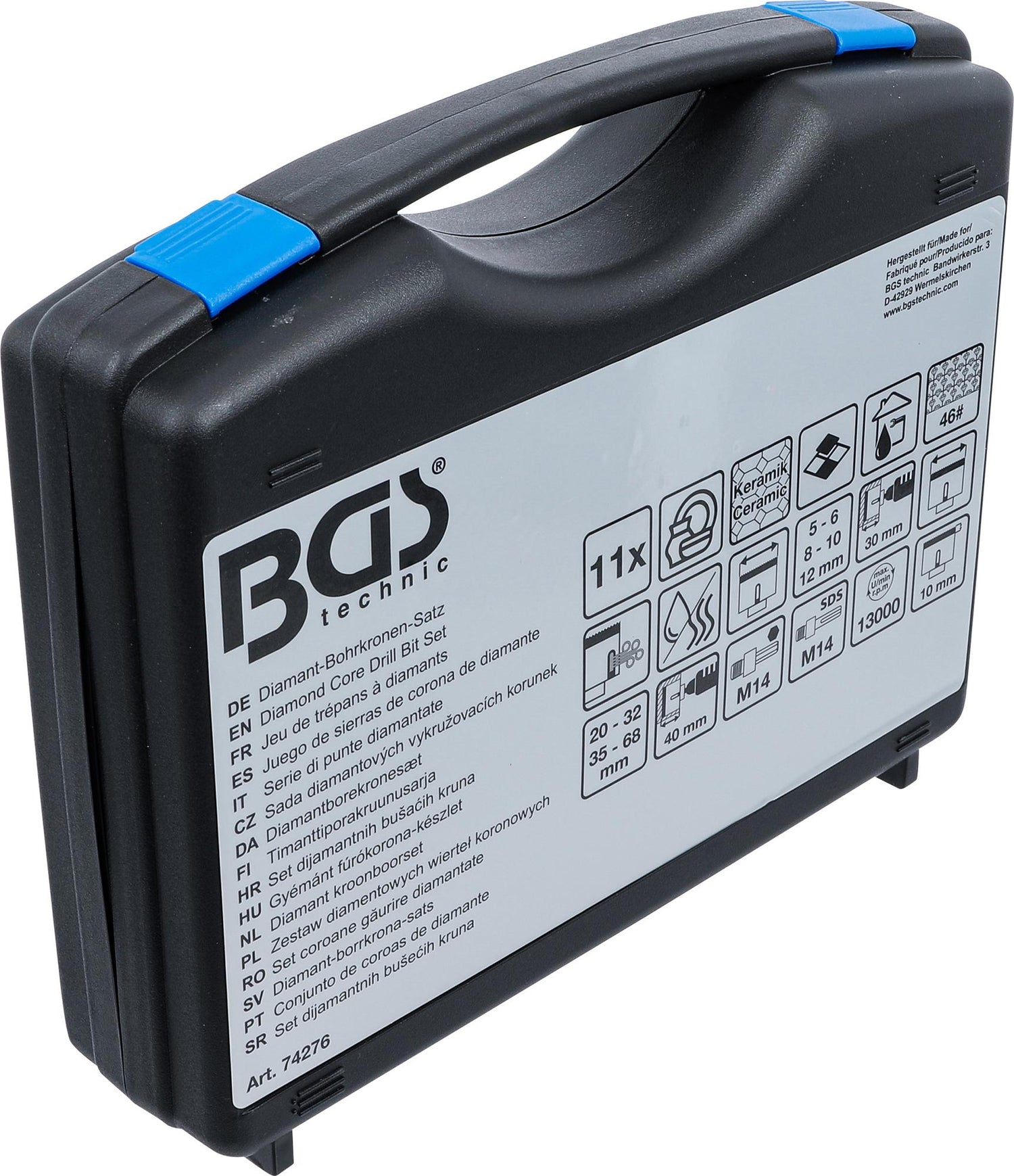

DIAMOND CORE DRILL BIT SET | 5 - 68 MM | 11 PCS. (74276)

for easy and quick creation of clean drill holes for screws, outlets and inlets, plug sockets, connector boxes, etc.
compact set composition with the most common and most used sizes
skilled craftsmen as well as ambitious do-it-yourselfers are perfectly equipped with this set
ideal addition for tilers, plumbers, electricians etc.
with M14 thread connection for all common angle grinders
high diamond grit for longer life
slotted design for better ejection of concrete dust
for the processing of most difficult materials like porcelain, ceramics, granite, marble, and tiles
core bits are designed for both wet and dry cutting

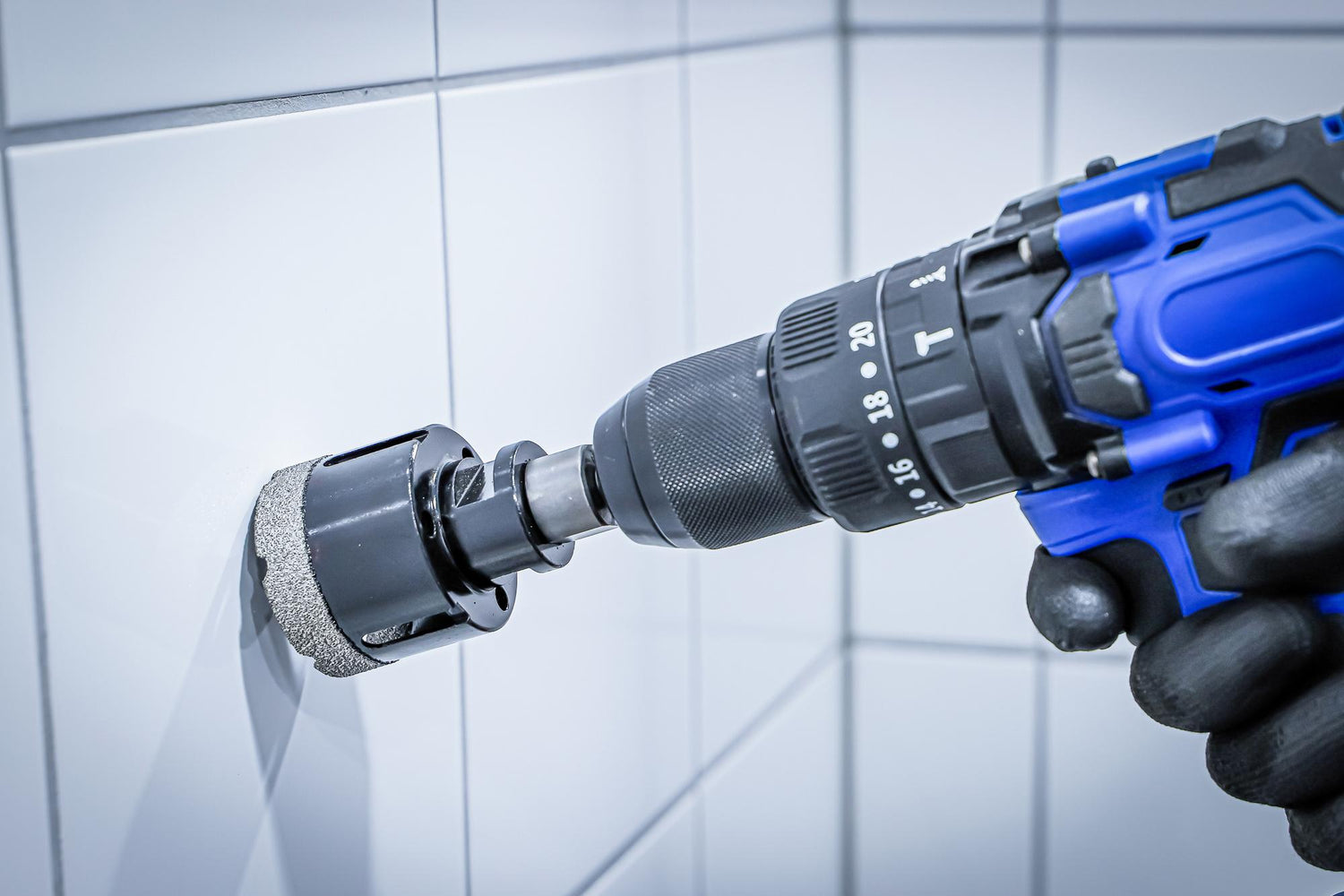

incl. 2 additional adapters for use with drill or cordless electric drill
material: carbon steel
diamond grain size: #46

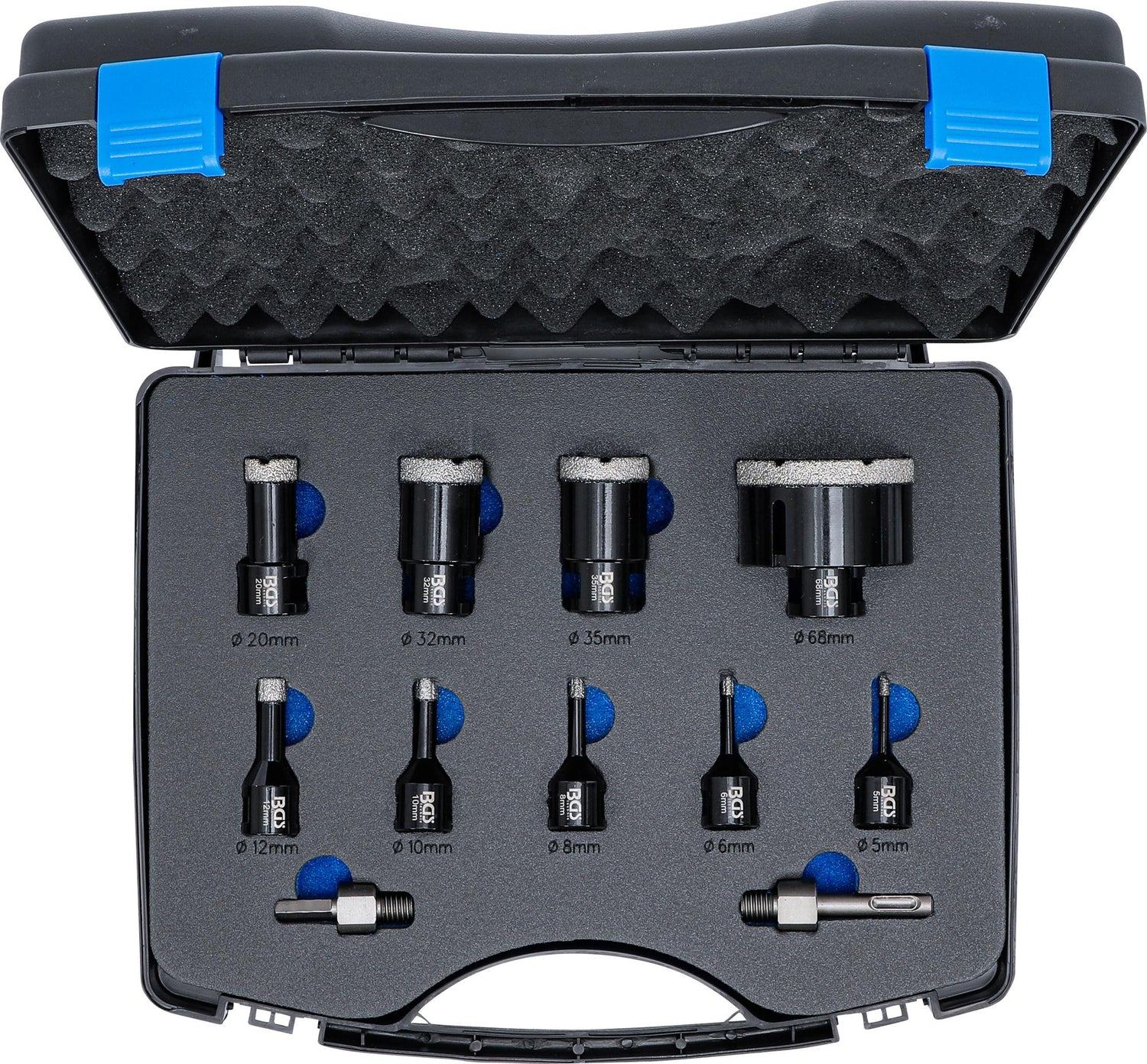

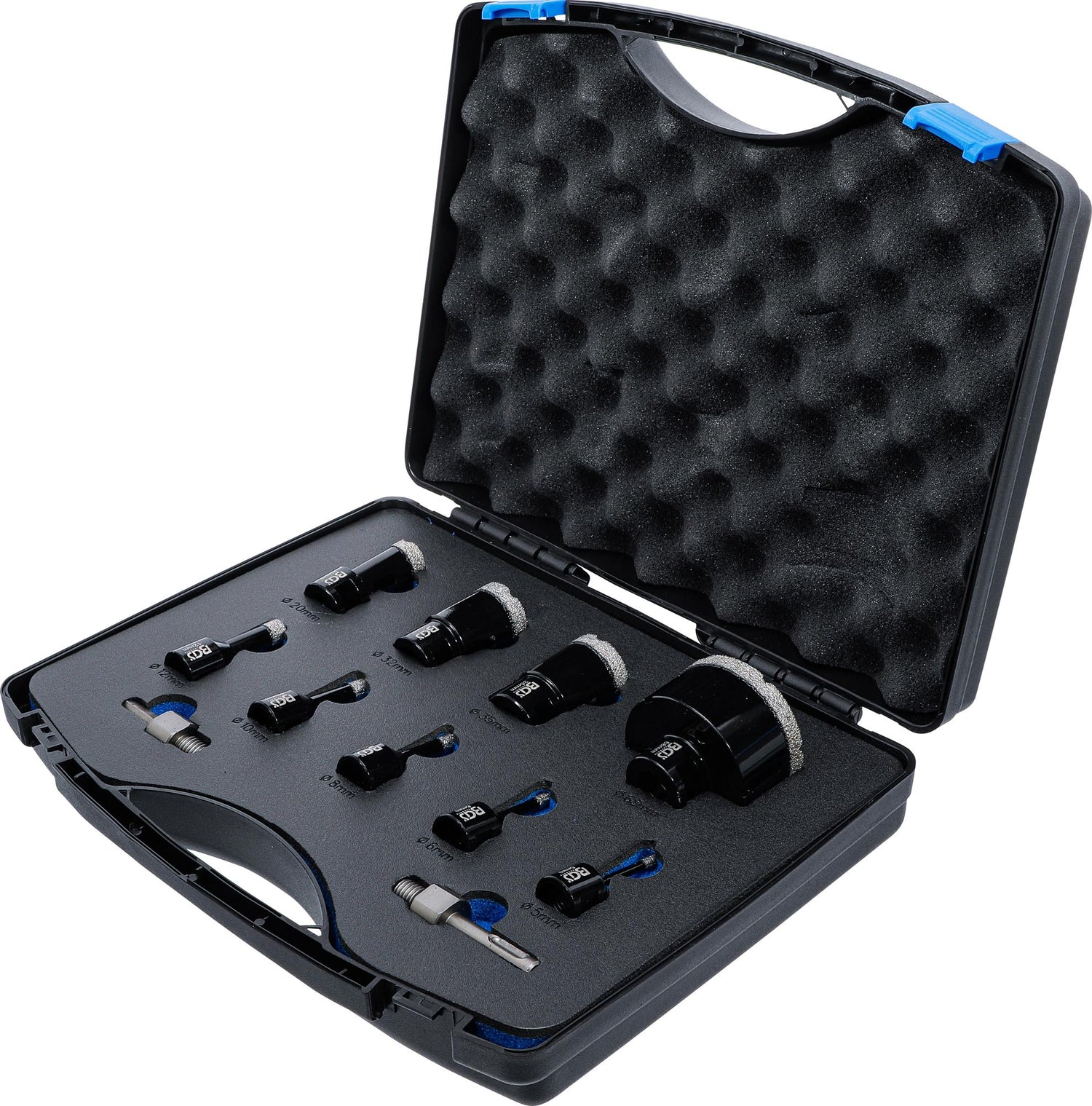

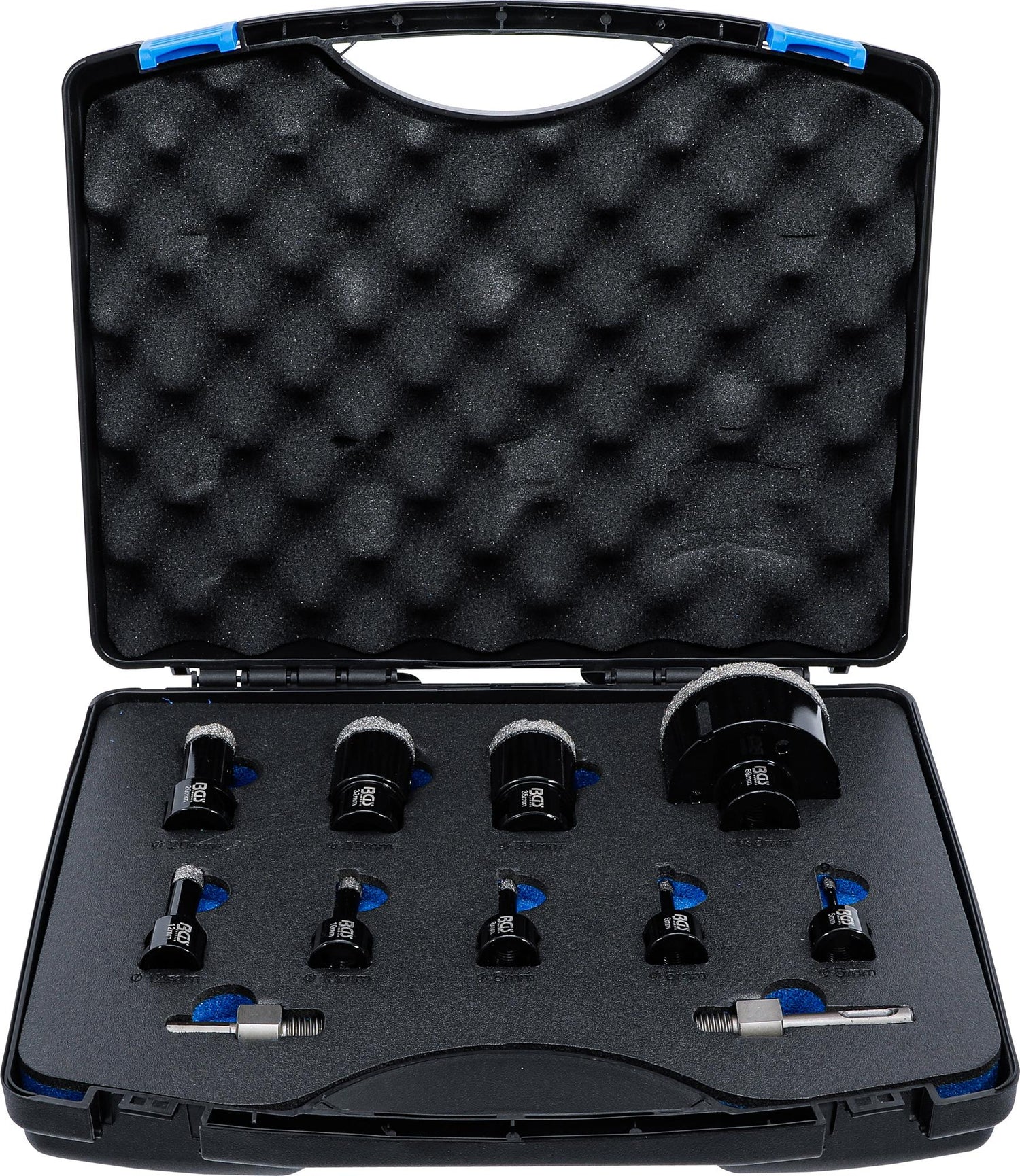

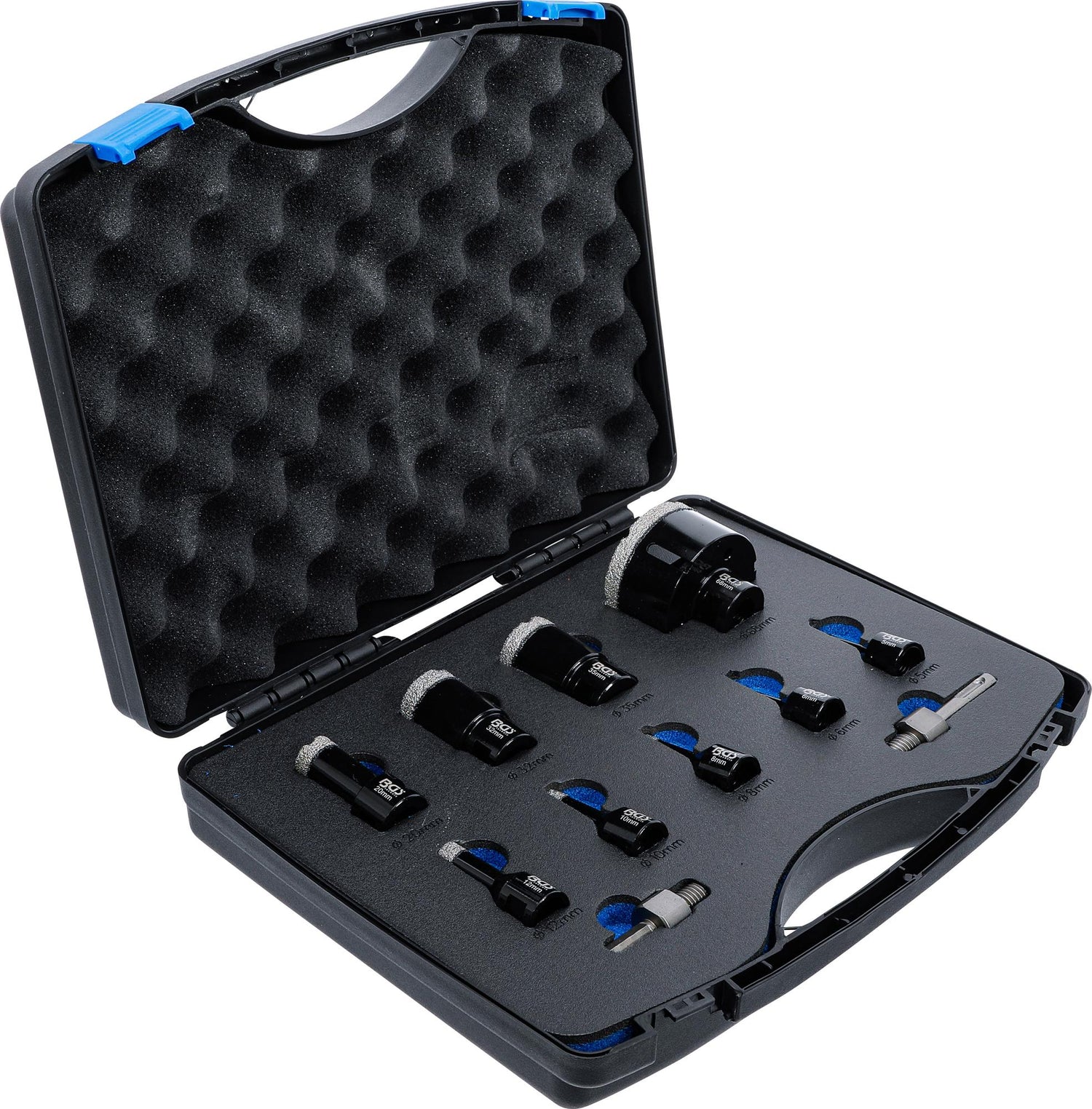

scope of delivery:

1 diamond core drill bit, inner thread M14 x 2, 5 mm
1 diamond core drill bit, inner thread M14 x 2, 6 mm
1 diamond core drill bit, inner thread M14 x 2, 8 mm
1 diamond core drill bit, inner thread M14 x 2, 10 mm
1 diamond core drill bit, inner thread M14 x 2, 12 mm
1 diamond core drill bit, inner thread M14 x 2, 20 mm
1 diamond core drill bit, inner thread M14 x 2, 32 mm
1 diamond core drill bit, inner thread M14 x 2, 35 mm
1 diamond core drill bit, inner thread M14 x 2, 68 mm
1 adaptor, external thread M14 x 2 to external hexagon 6.3 mm (1/4") for drills with standard drill chuck
1 adaptor, external thread M14 x 2 to SDS shaft for drills with SDS drill chuck


Technical data
Length344 mm
Width281 mm
Height84 mm
Gross weight1796 g
