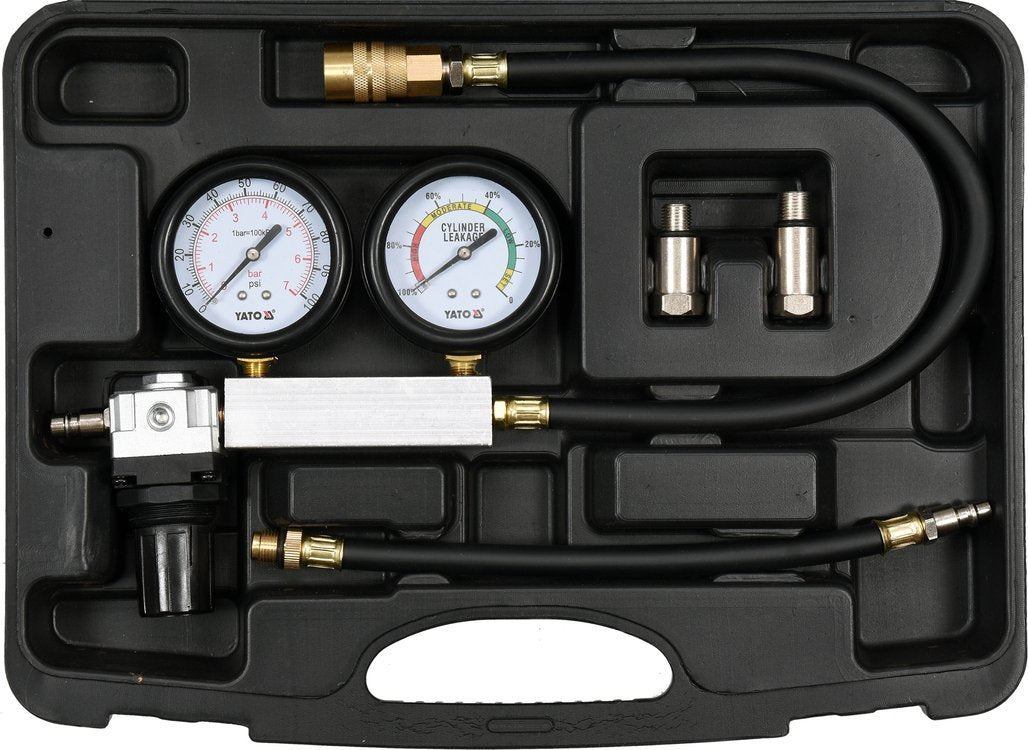

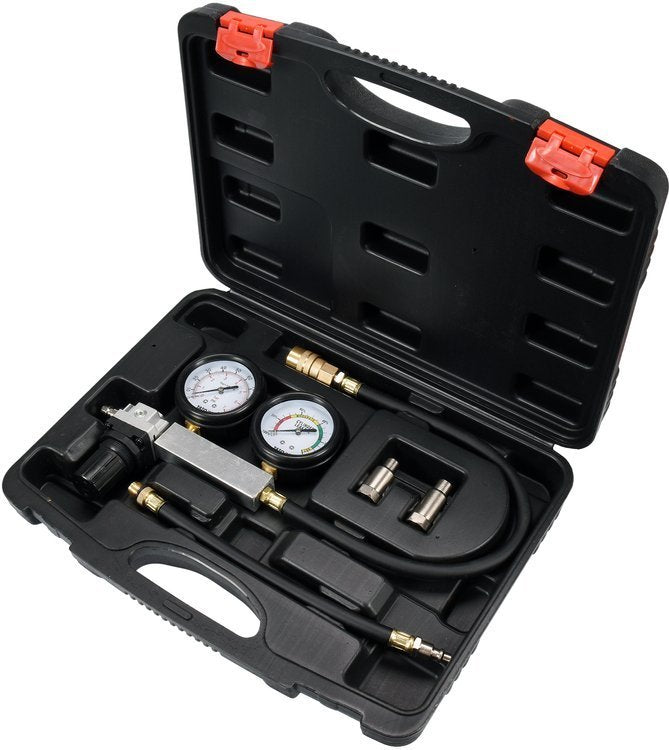

CYLINDER LEAK TESTER (YT-73055)

Brand
Yato
Symbol
YT-73055
Series
GRD
Application
for measuring cylinder tightness, for gasoline engines
Measurement range
0-0.7 MPa
Air connection diameter (PT)
standard
Pressure gauge diameter
75mm
Adapter size
M12x 1.25mm, M14x1.5mm
Number of pieces in set
4

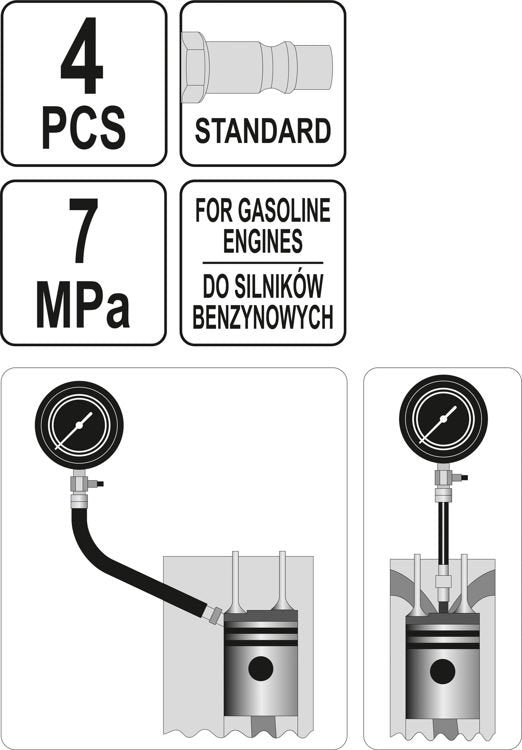

A cylinder leak tester for gasoline engines allows for quick and easy diagnosis of leaks in the combustion chamber. It allows you to check the degree of engine wear
by supplying compressed air to the cylinder and determining the percentage of pressure drop caused by cylinder leaks. It detects, among others: piston ring damage, intake or exhaust valve damage, head gasket damage.

measuring unit with 100 psi (7 bar) pressure gauge and cylinder leakage indicator
spark plug adapters: M12 x 1.25 and M14 x 1.5
hose with quick connector

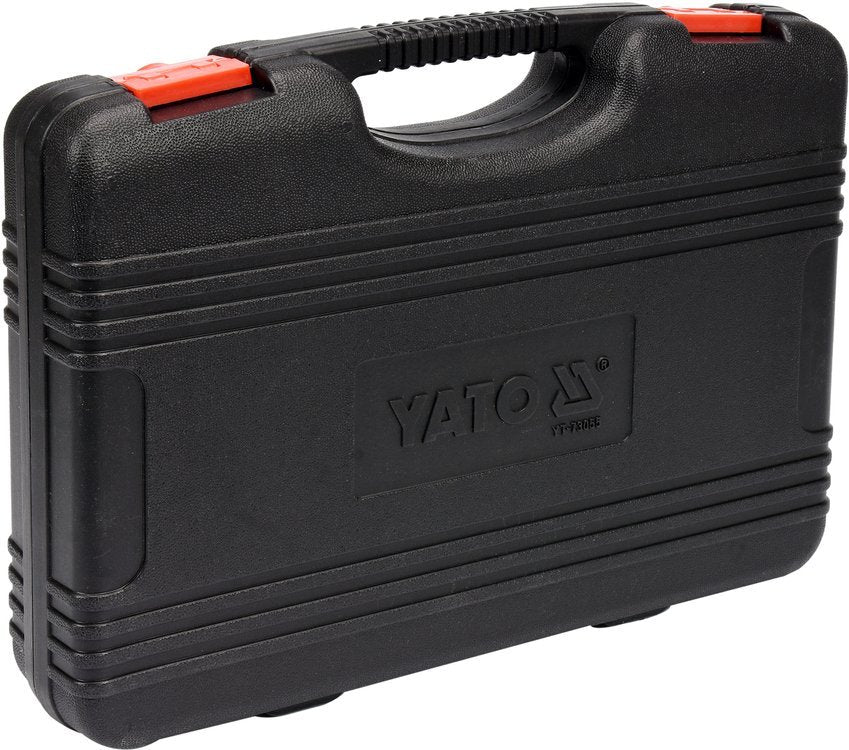

packed in a handy case
