CRIMPING PLIERS FOR CORD-END TERMINALS (YT-23052)

Brand
Yato
Symbol
YT-23052
Series
GRD
Application
electrical
Surface finish
blackened, oxidized
Length
175mm
Handle material
PP, TPR
Kit contents
crimp pliers, ferrule x1200
Blade material
65Mn steel
Hardness
50 HRC
Body material
#45 carbon steel
E section
0.25-10mm2
Number of pieces in set
1201

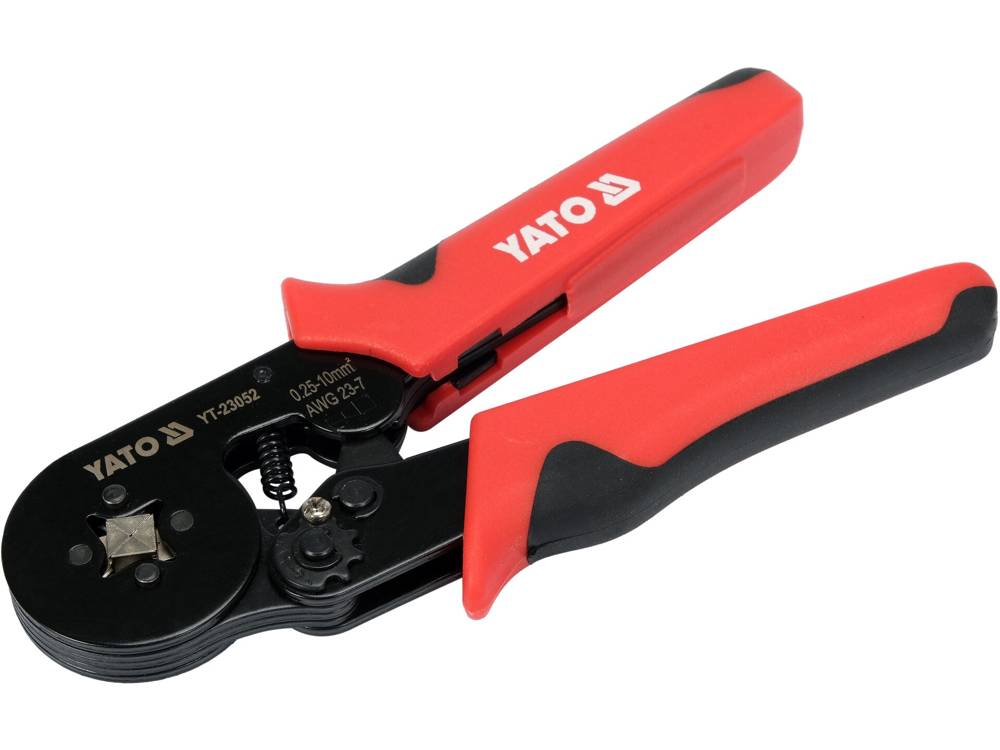

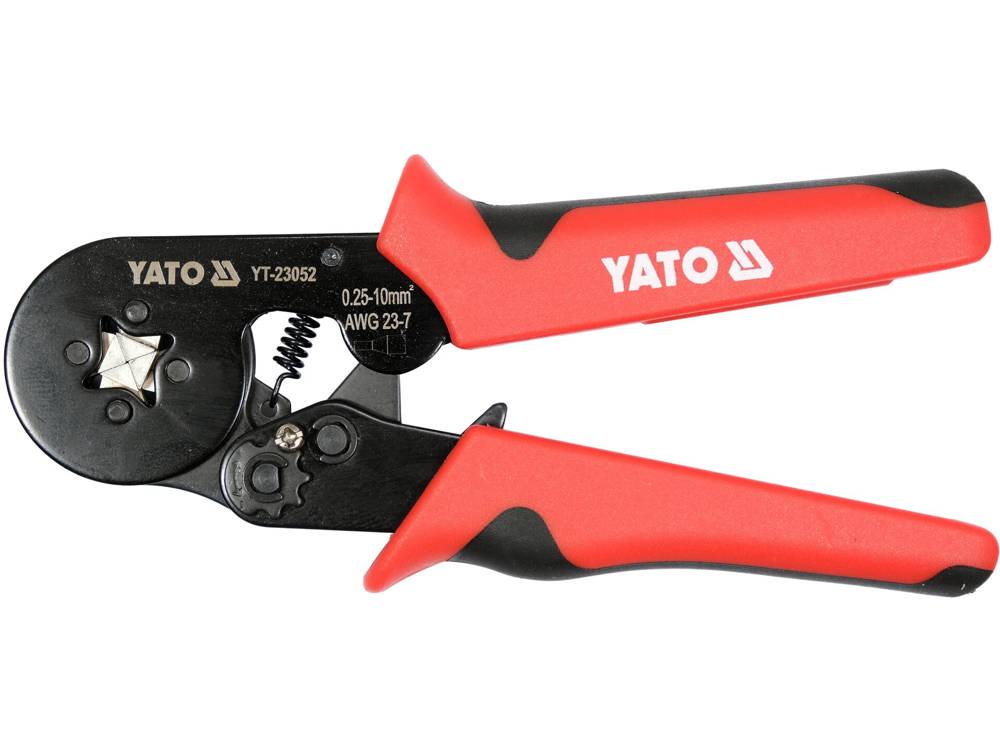

Pliers for crimping ferrule terminals on wires from 0.25 to 10 mm2 and 1200 pieces of ferrule type terminals. The pliers have a ratchet mechanism and are made of carbon steel. The blackened surface protects against corrosion. The four-element ferrule clamp is made of durable 65Mn spring steel, hardened to 50 HRC. The two-component grip covers are made of plastic. The harder PP component adheres firmly to the body, and the TPR outer part is pleasant to the touch and has non-slip properties.

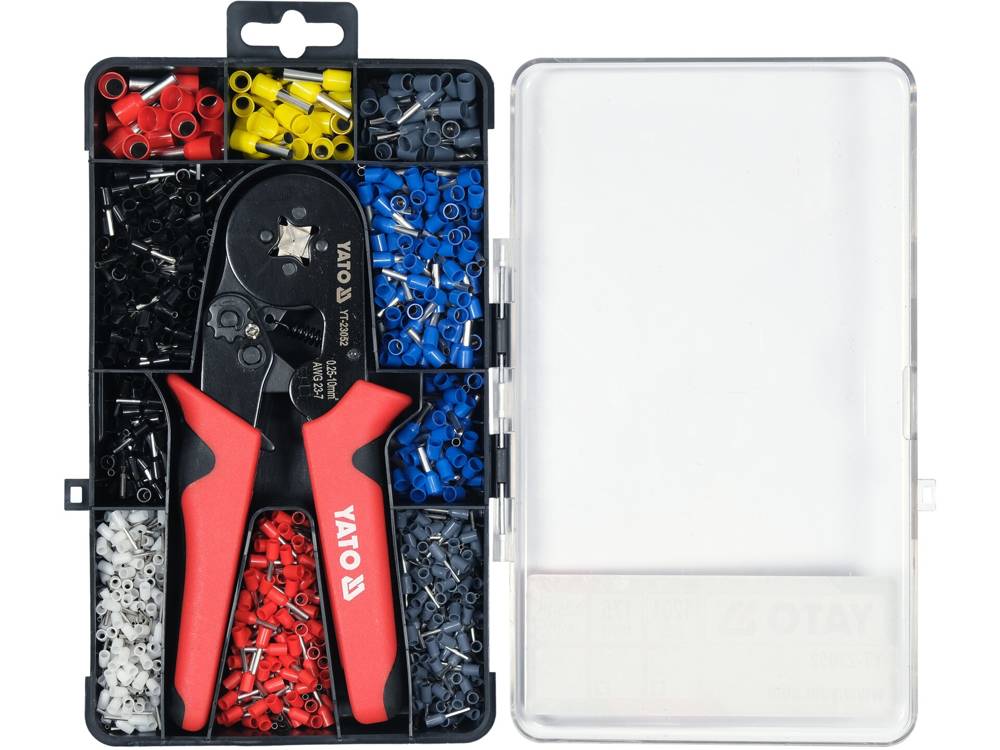

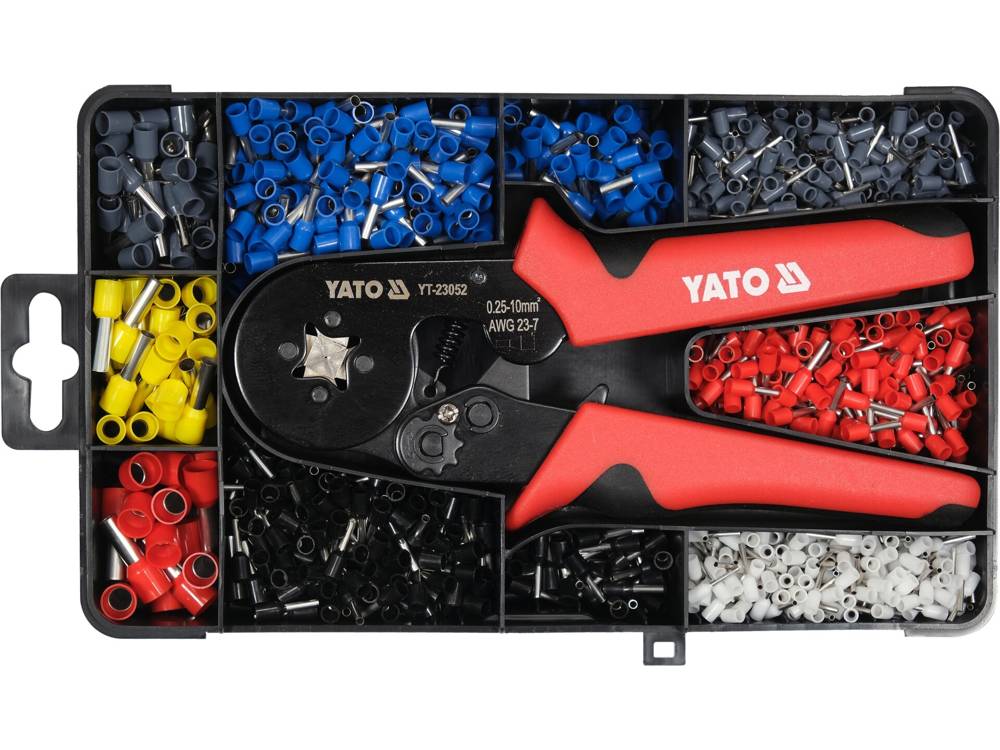

Set contains:

crimp pliers
ferrule 0.5 mm2 x 8 mm: 250 pcs
ferrule 0.75 mm2 x 8 mm: 210 pcs
ferrule 1.0 mm2 x 8 mm: 200 pcs
ferrule 1.5 mm2 x 8 mm: 240 pcs
ferrule 2.5 mm2 x 8 mm: 215 pcs
ferrule 4.0 mm2 x 9 mm: 40 pcs
ferrule 6.0 mm2 x 12 mm: 30 pcs
ferrule 10.0 mm2 x 12 mm: 15 pcs
