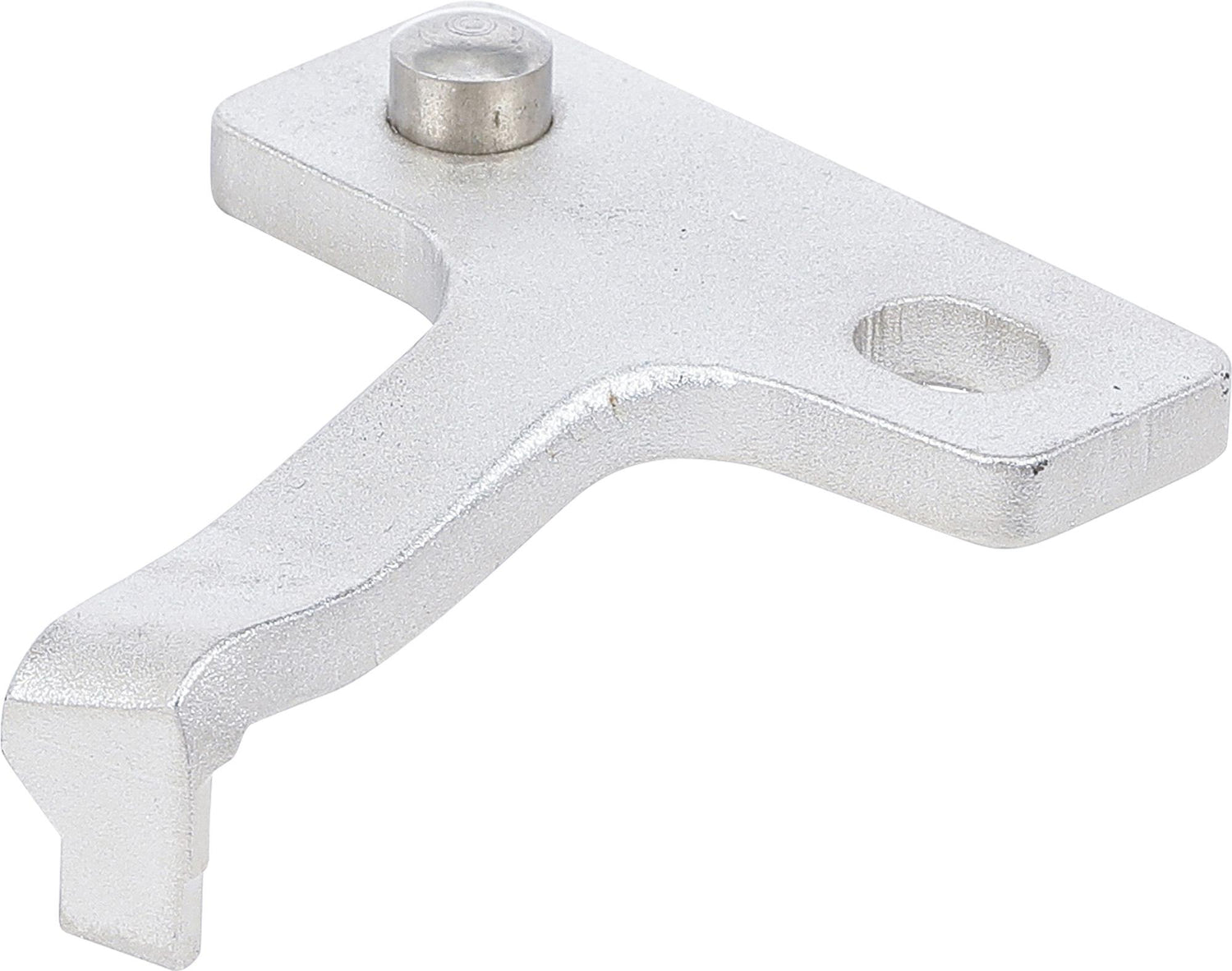

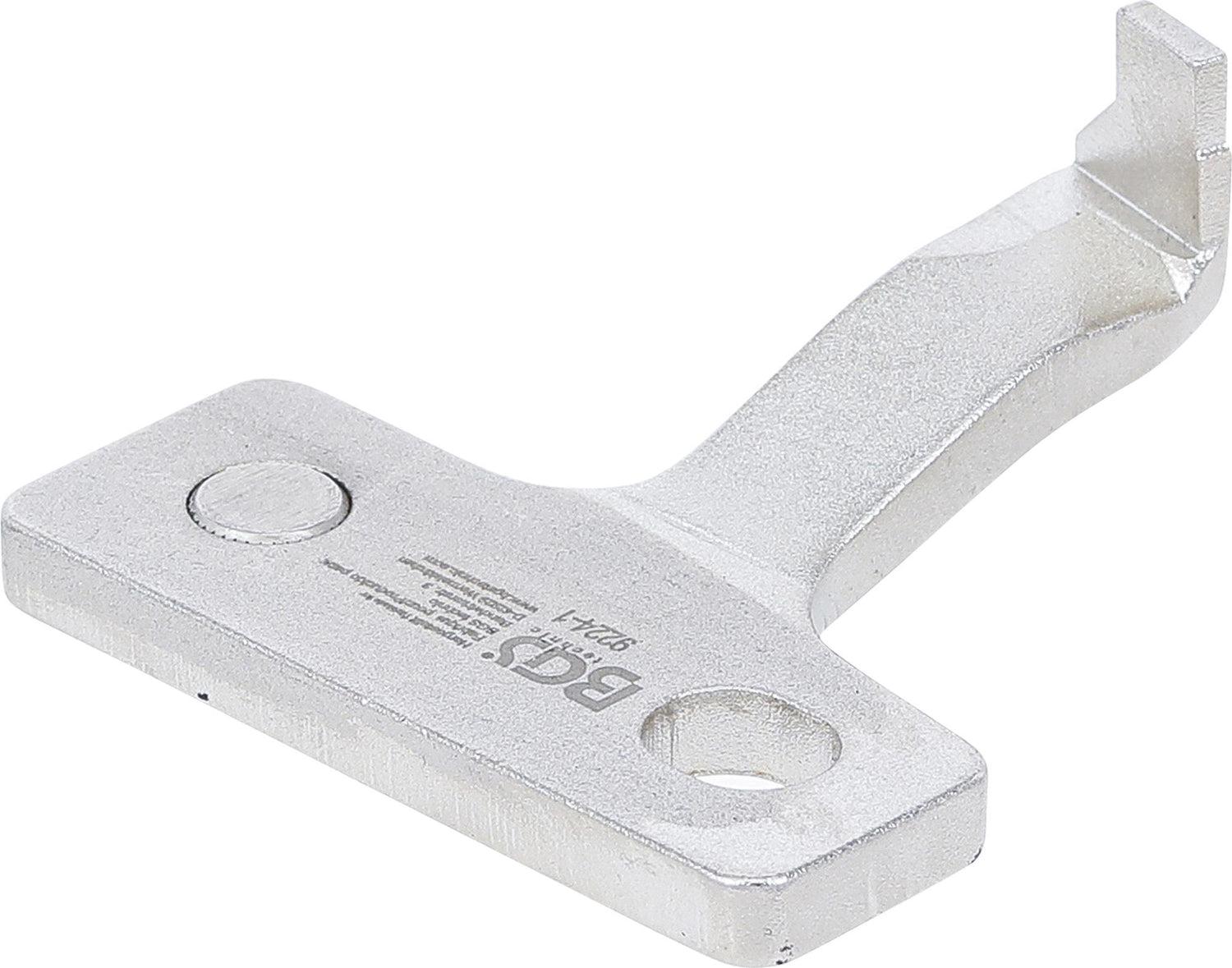

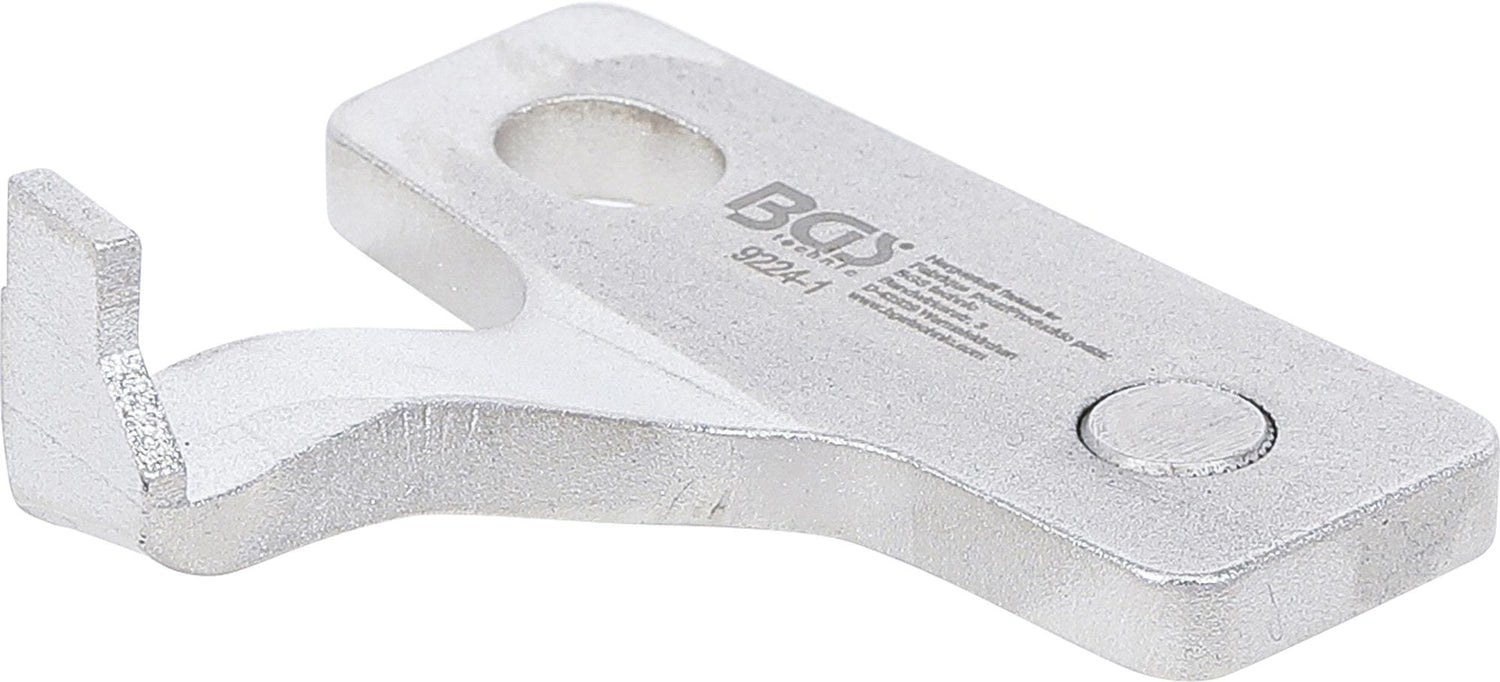

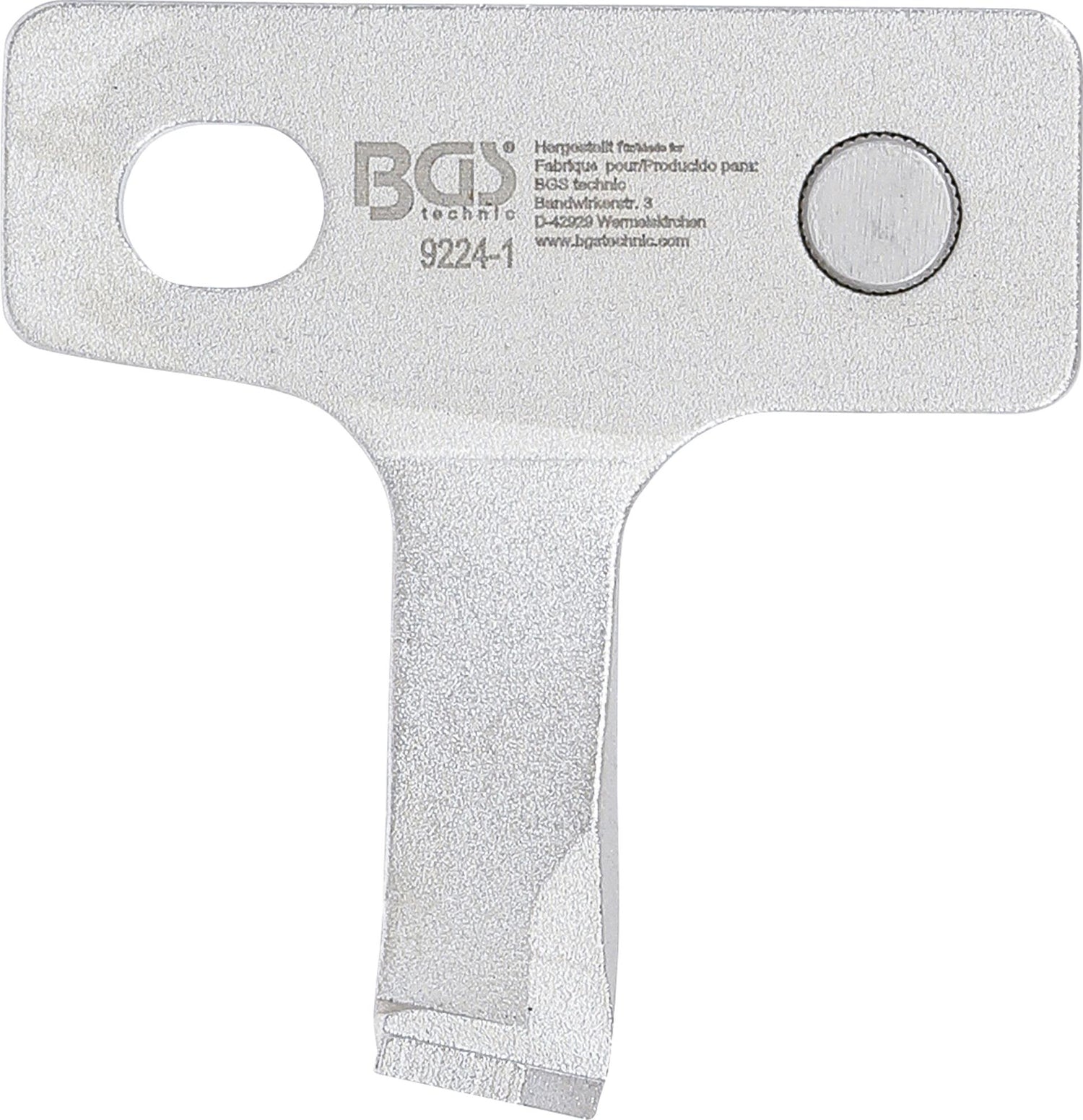

CRANKSHAFT PULLEY ALIGNMENT TOOL | FOR FORD, VOLVO 1.6L (9224-1)

Product description

This tool is designed for precise alignment of the crankshaft pulley (vibration damper) on 1.6L EcoBoost engines. It is used during maintenance or repair procedures that require removal or installation of the crankshaft pulley, ensuring the correct positioning relative to the crankshaft. Accurate alignment is critical to maintain engine timing and prevent vibration issues.

The tool is compatible with a range of Ford and Volvo vehicles equipped with 1.6L EcoBoost engines, specifically those with engine codes HXDA, HXDB, IQDA, IQDB, IQJA, JQDA, JQDB, JQGA, JQMA, JQMB, JTBA, JTBB, JTDA, JTDB, JTJA, JTMA, JTWB, SIDA, and TWA. It is suitable for use in both workshop and professional service environments.

Compatible vehicles

• Ford Focus (2010-)
• Ford C-Max (2011-)
• Ford Fiesta (2013-)
• Ford Fusion (2013-)
• Volvo models with identical engines

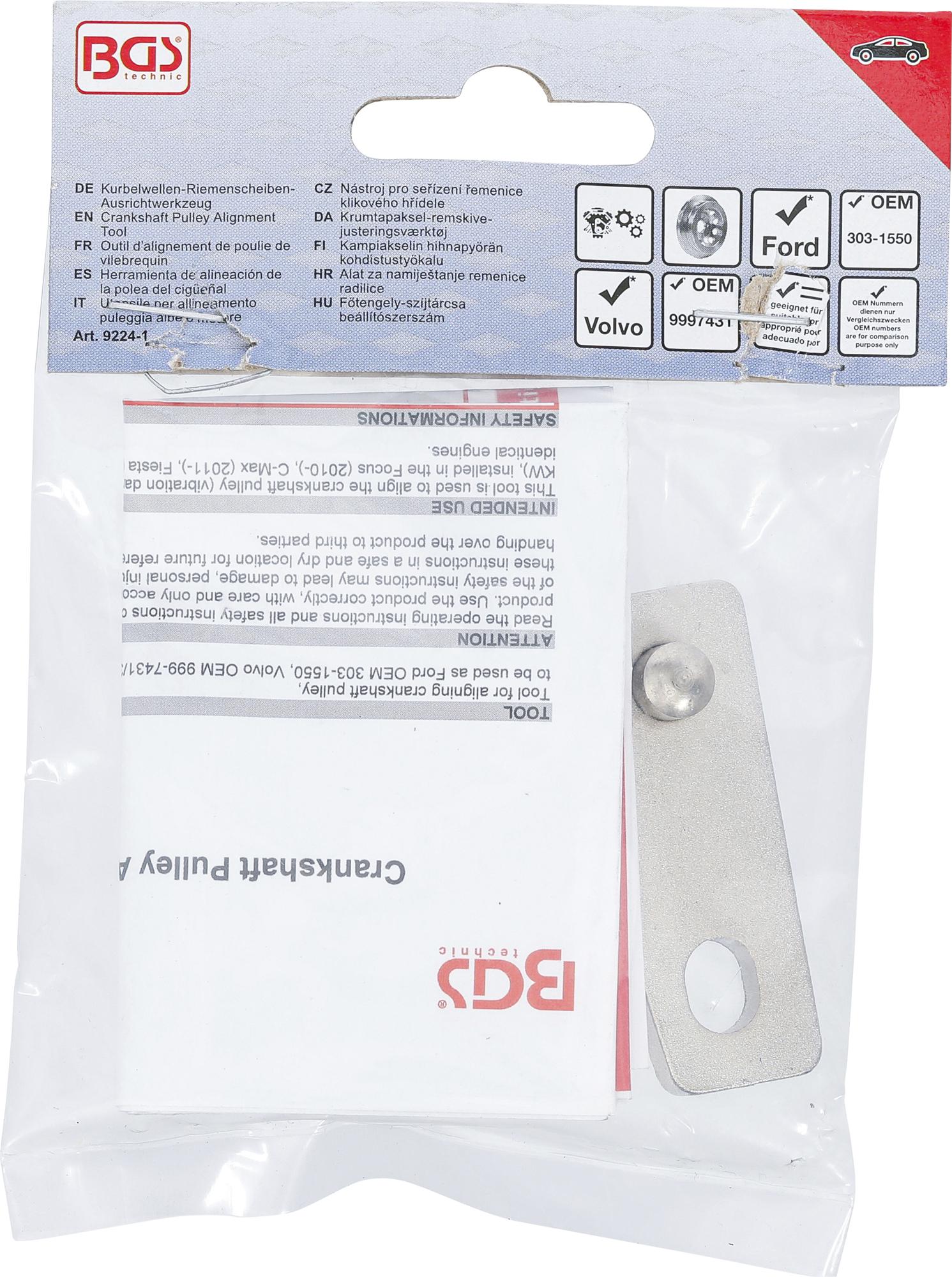

Kit contents

• Crankshaft pulley alignment tool (OEM Ford 303-1550 / Volvo 9997431)

Technical specifications

• Gross weight: 62 g
• Packaging suitable for wall hanging: Yes

OEM reference numbers:

• Ford: OEM 303-1550, OEM1303-1550
• Volvo: OEM 9997431, OEM29997431
