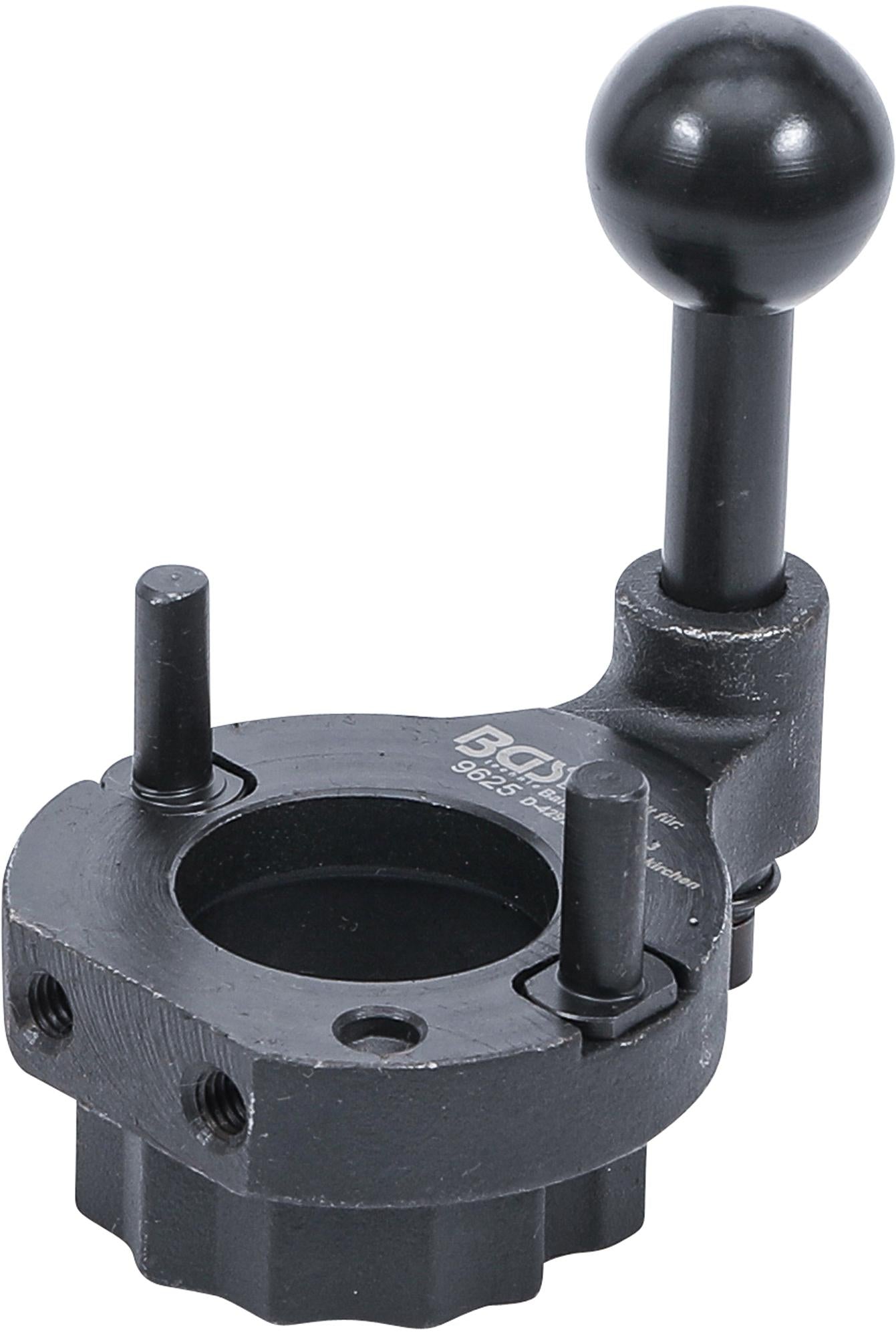

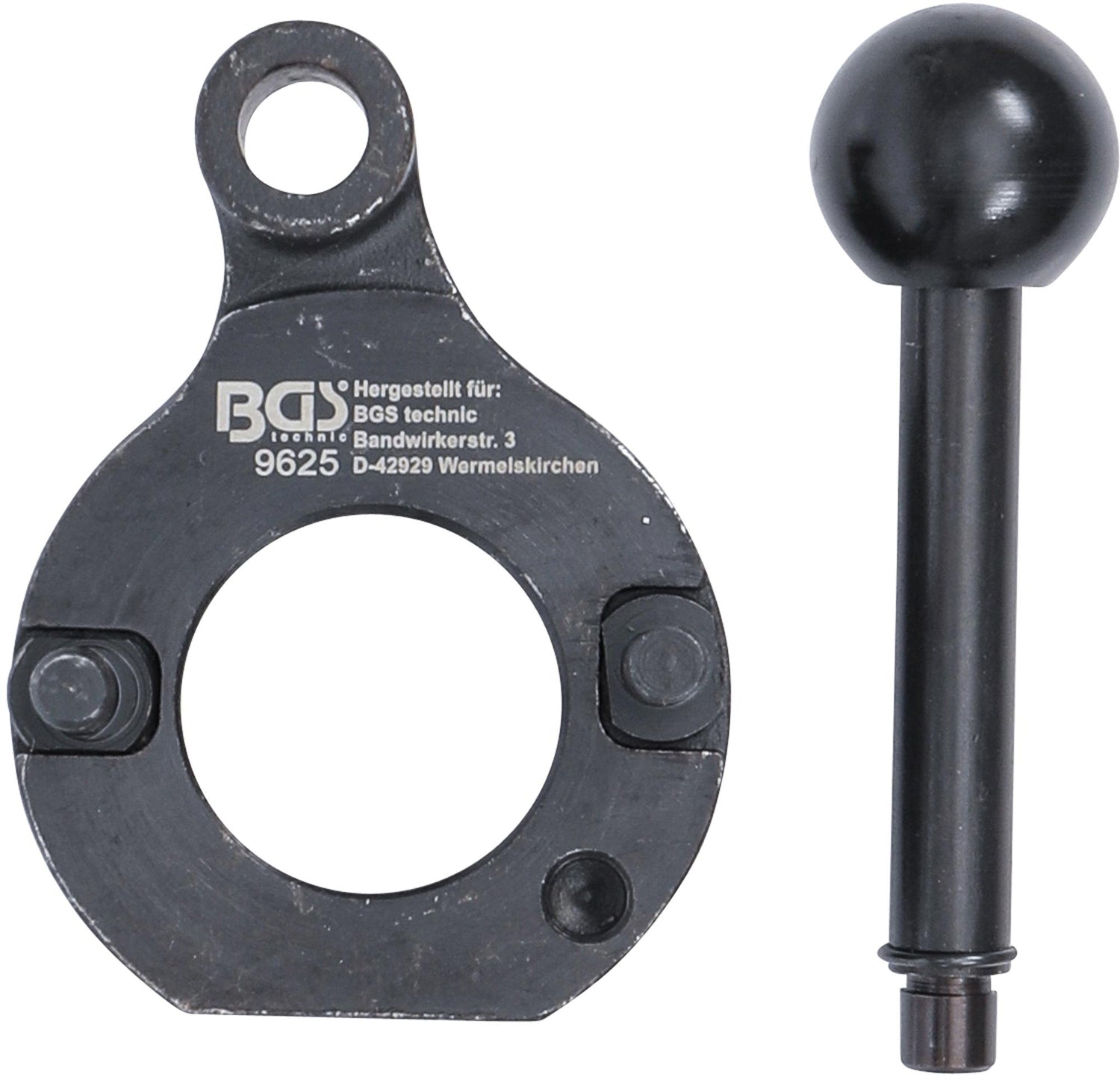

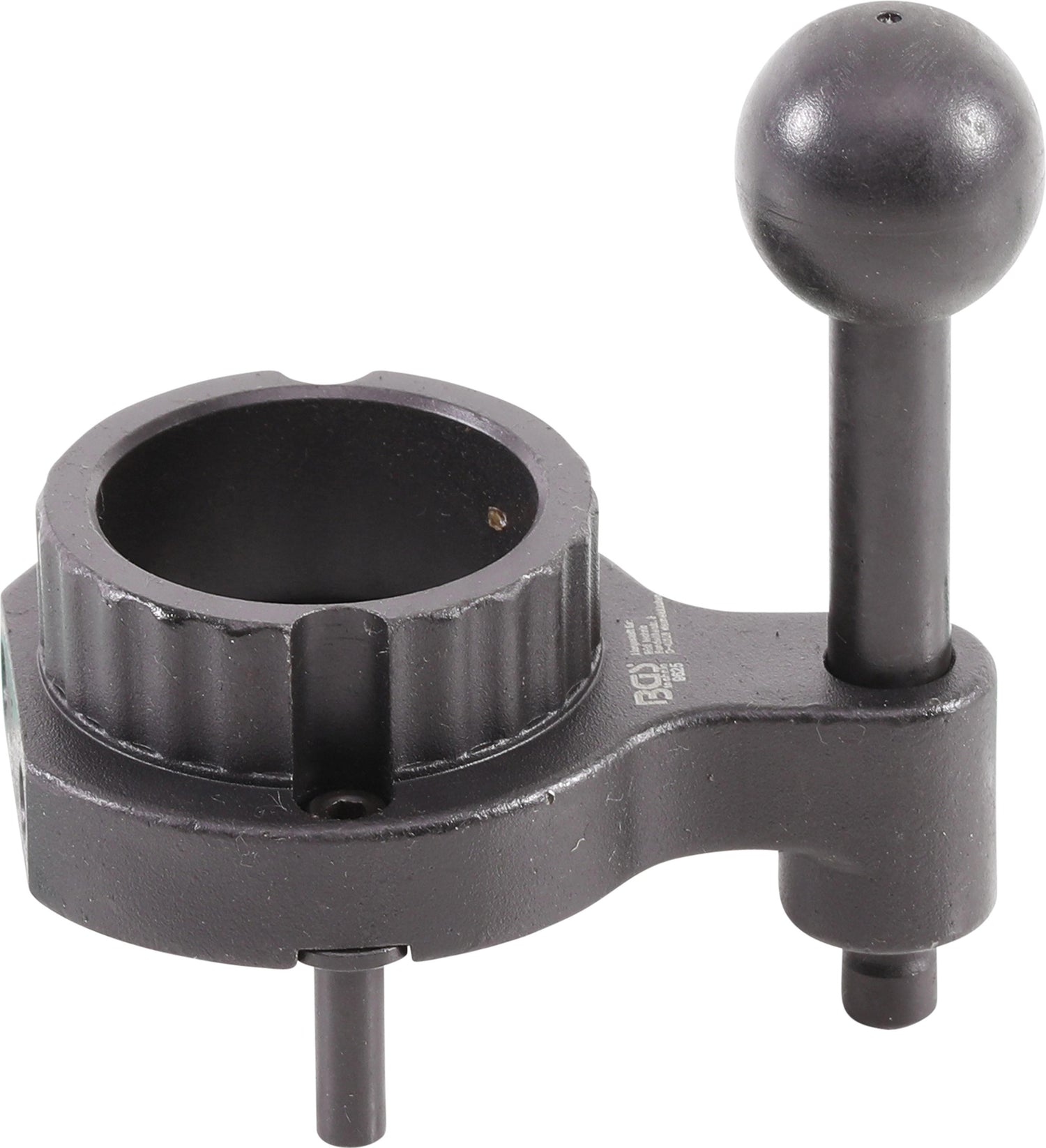

CRANKSHAFT LOCKING TOOL | FOR VAG 1.4, 1.6, 2.0 TDI (EA288) (9625)

Product description

This crankshaft locking tool is designed for adjusting and locking the crankshaft during procedures such as camshaft drive work or cylinder head gasket replacement. It is specifically made for use with VAG group TDI Common Rail engines from the EA288 family, covering a range of engine displacements including 1.4, 1.6, and 2.0 TDI. The tool ensures that the crankshaft remains securely positioned, allowing for precise timing and safe maintenance operations.

The tool is applicable when servicing timing components or performing major repairs on engines where crankshaft alignment is critical. Its compatibility spans several vehicle models across Audi, Seat, Skoda, and Volkswagen brands equipped with the specified TDI engines.

Compatible vehicles

Audi

• 1.4 TDI: A1
• 1.6 TDI: A1, A3 8V, A4 B9, Q2
• 2.0 TDI: A3 8V, A4 B9, Q2

Seat

• 1.4 TDI: Ibiza, Toledo IV
• 1.6 TDI: Leon III, Toledo IV, Ateca
• 2.0 TDI: Leon III, Ateca, Alhambra II

Skoda

• 1.4 TDI: Fabia III, Rapid (2012)
• 1.6 TDI: Octavia III, Rapid (2012), Superb III, Karoq
• 2.0 TDI: Octavia III, Superb III, Kodiaq, Karoq

Volkswagen

• 1.4 TDI: Polo V
• 1.6 TDI: Beetle, Golf VII, Jetta VI, Tiguan, Touran II, T-Roc, Passat B8, CC, Scirocco III
• 2.0 TDI: Beetle, Golf VII, Jetta VI, Tiguan, Tiguan II, Touran II, T-Roc, Sharan II, Passat B8, CC, Scirocco III, Arteon, T6, Caddy, Crafter, Amarok

Kit contents

• Crankshaft locking tool (OEM T10490)

Technical specifications

• Gross weight: 370 g

OEM reference numbers:

• Audi: T10490
• Seat: T10490
• Skoda: T10490
• Volkswagen: T10490
