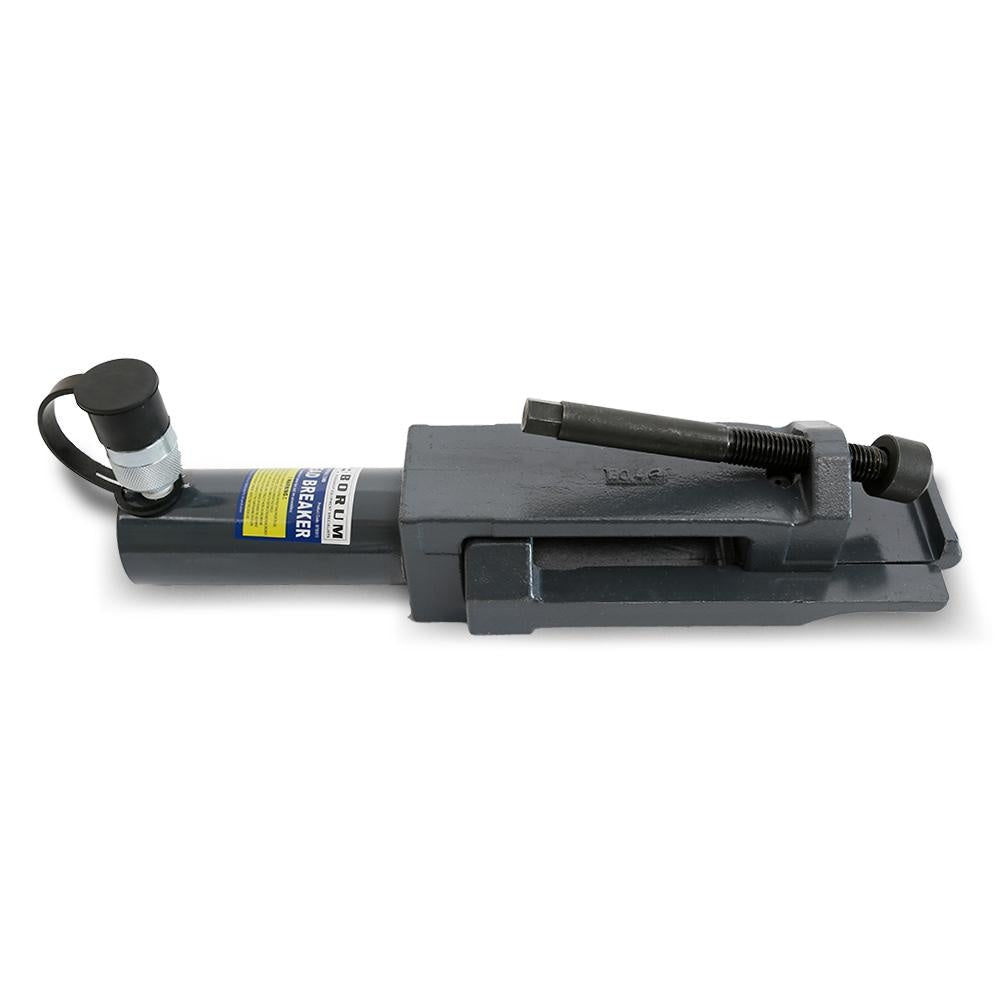

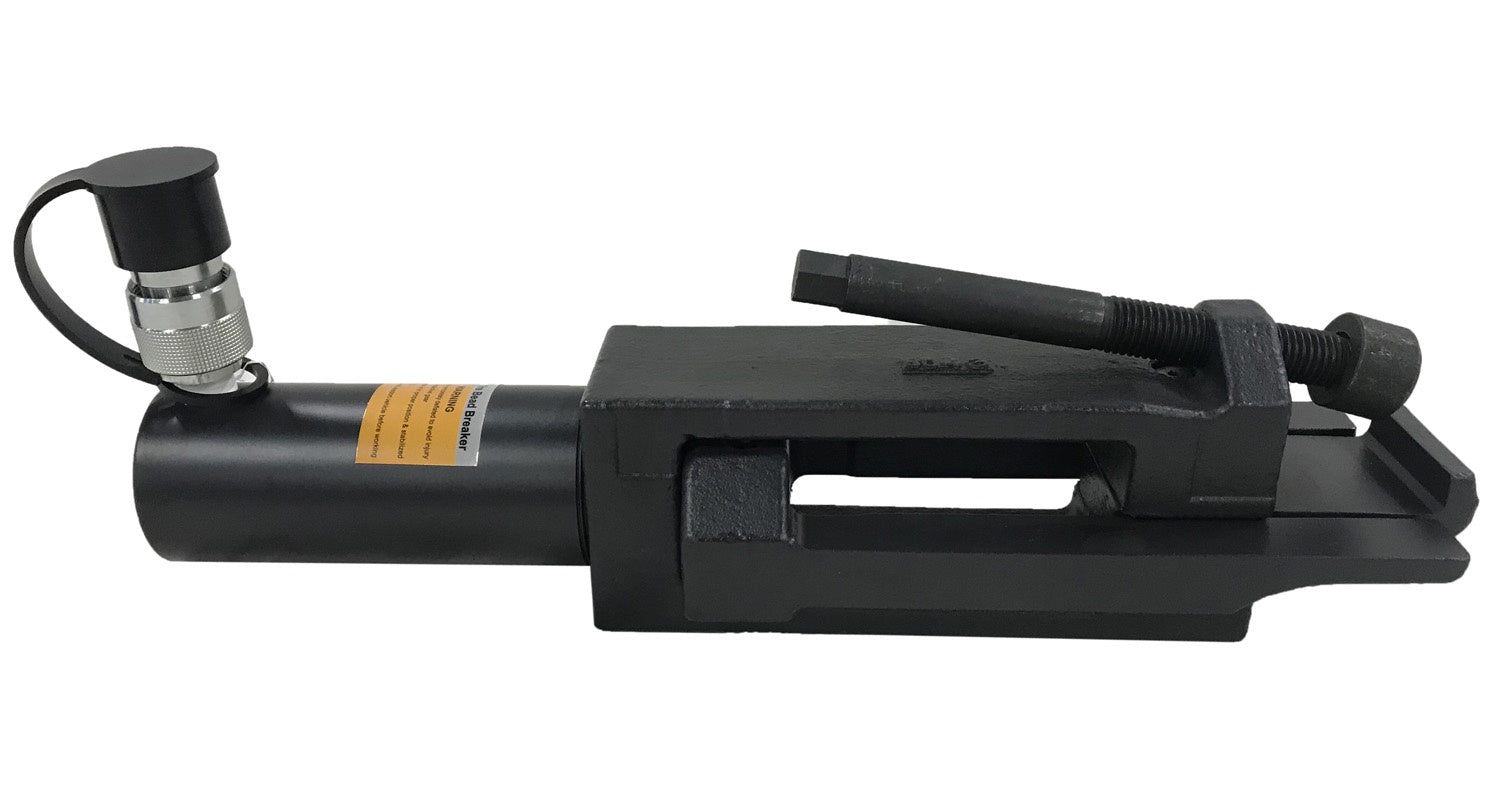

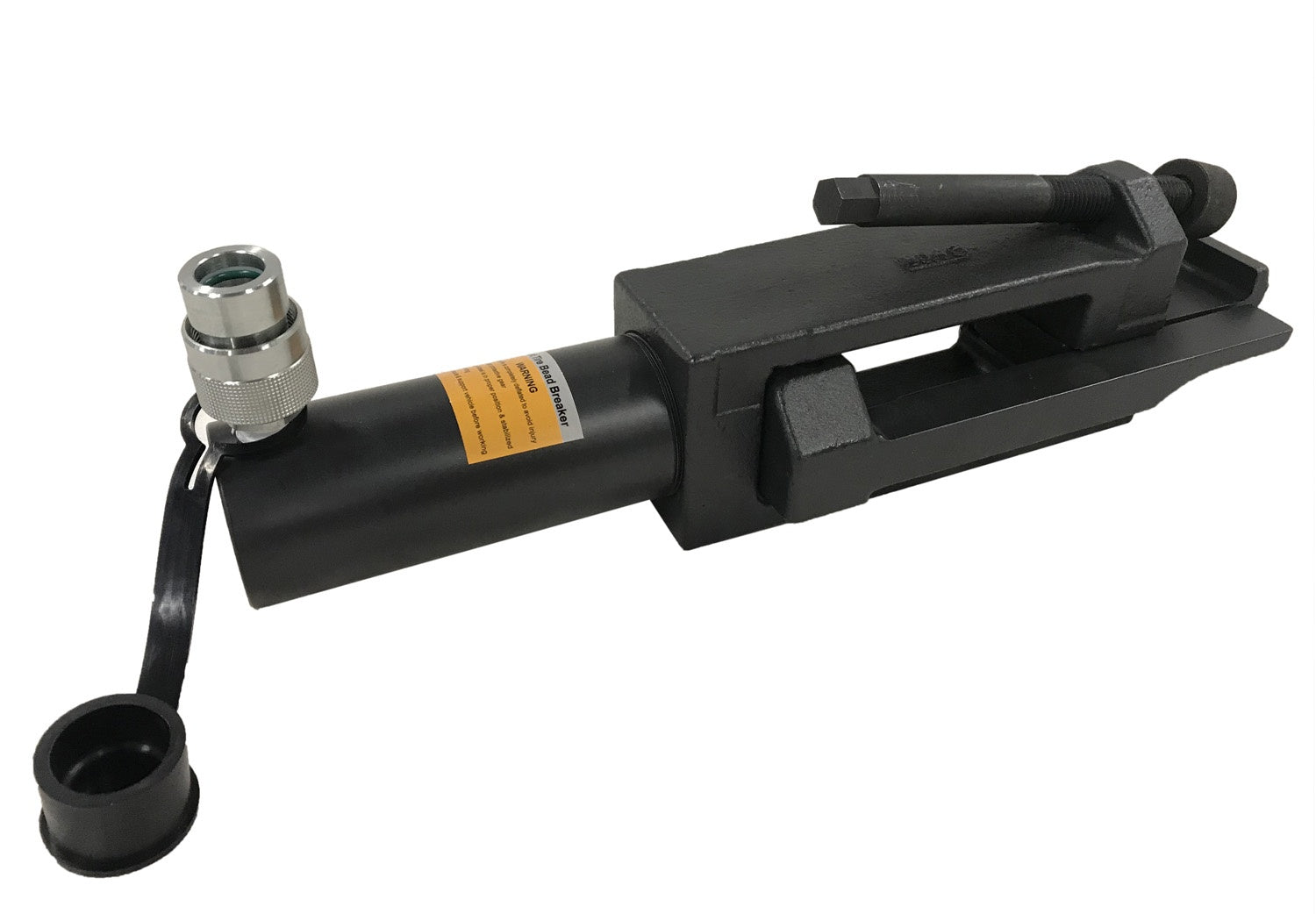

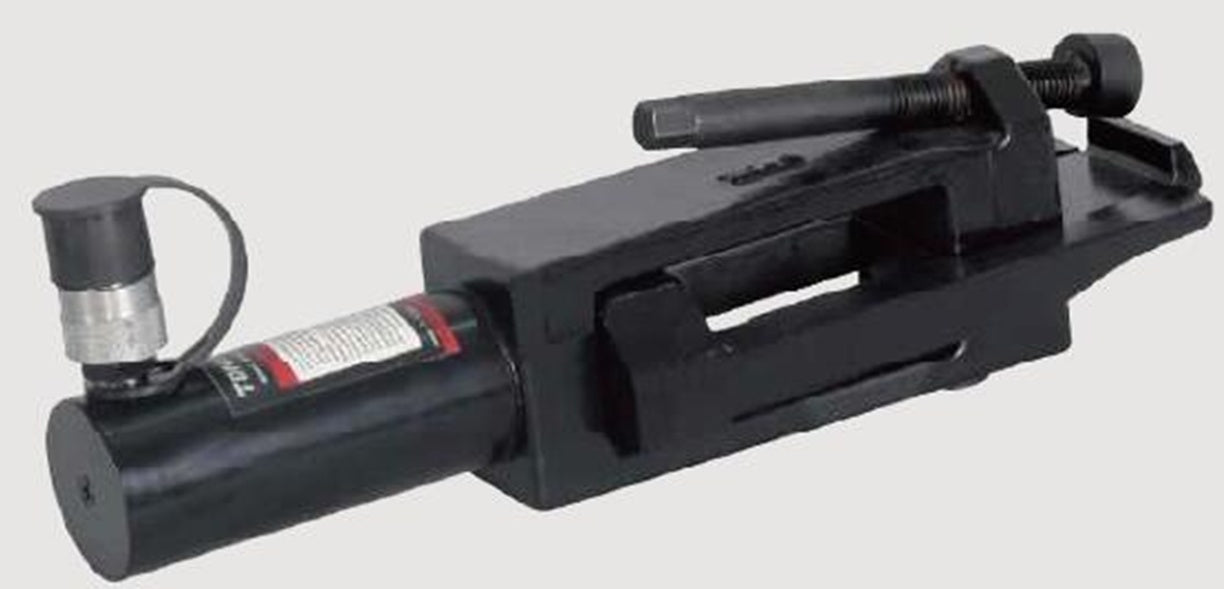

COMBINED TIRE MOUNTING BEAD TOOL | HYDRAULIC | 13 T (CB210)

The CB210 hydraulic tire changer is a robust and durable PRO-class device, made of cast iron and other carefully machined components, designed for quick and efficient changing of five-piece earthmover tires and other heavy vehicle tires; also without removing the wheel. Rust-resistant. The tool can be used on both sides of the wheel.

The hydraulic cylinder of the tire changer has a powerful spring that enables a self-retracting function, significantly speeding up and facilitating work with the device. The hydraulic tire changer can be used without any additional devices, but maximum efficiency is achieved by connecting it to the pneumo-hydraulic pump E5102C, which you can also purchase in our store.

connection ["]: 3/8 NPT

force [t]: 13

operating pressure [BAR]: 689

hydraulic cylinder stroke Max. [mm]: 108

tire size ["]: 25-50

The product does not include a pneumo-hydraulic pump.

ATTENTION! The device is only suitable for working with five-piece earthmover tires and rims.

Gross weight [kg]: 10.000
