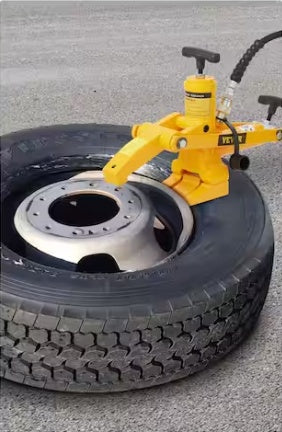

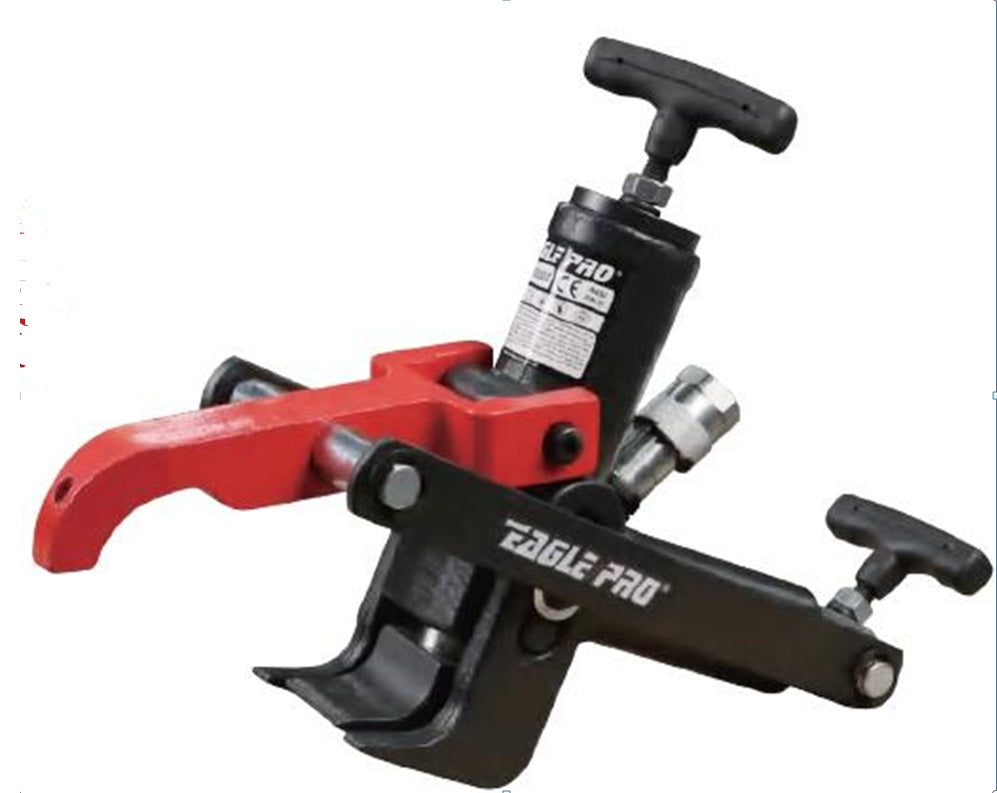

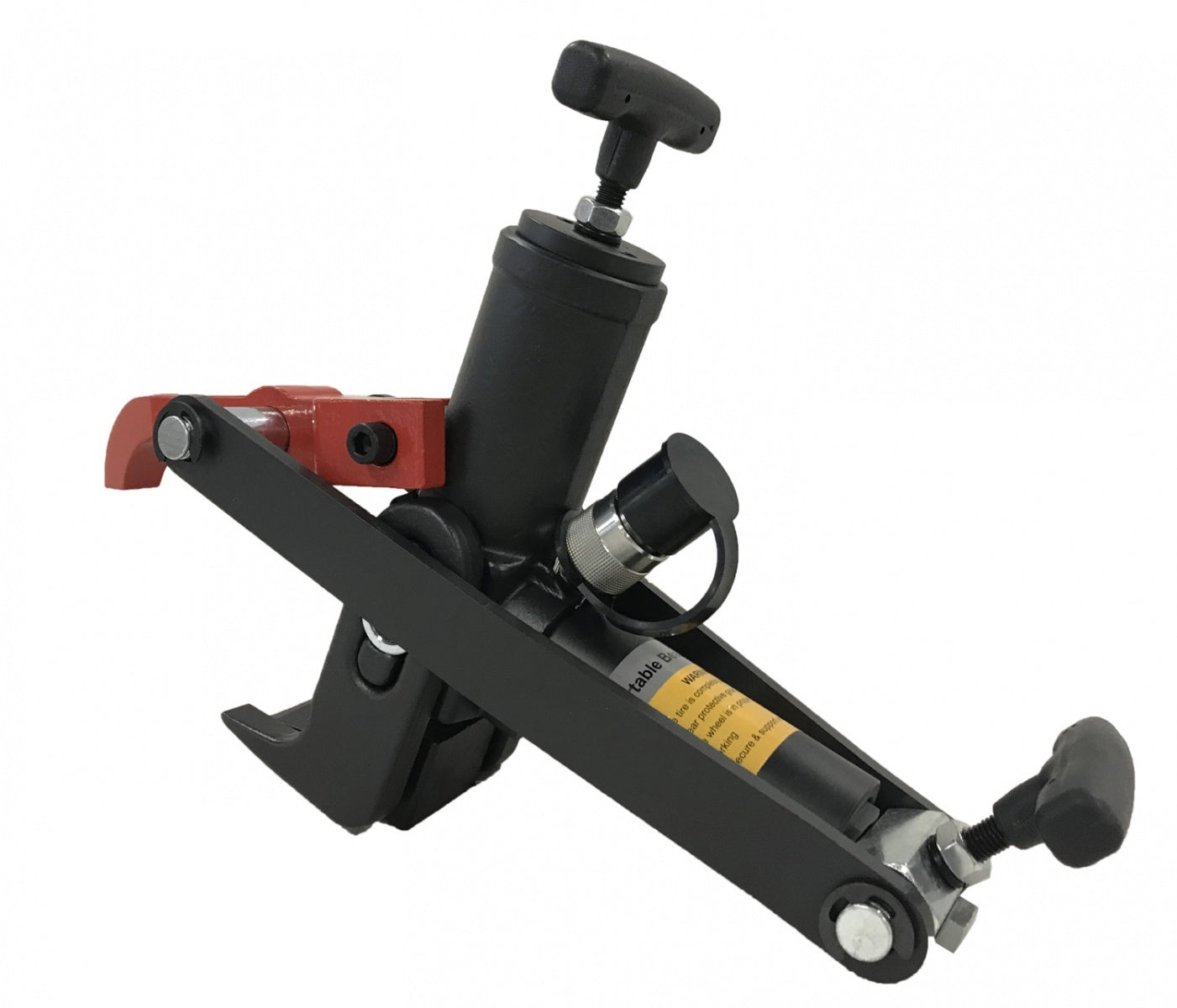

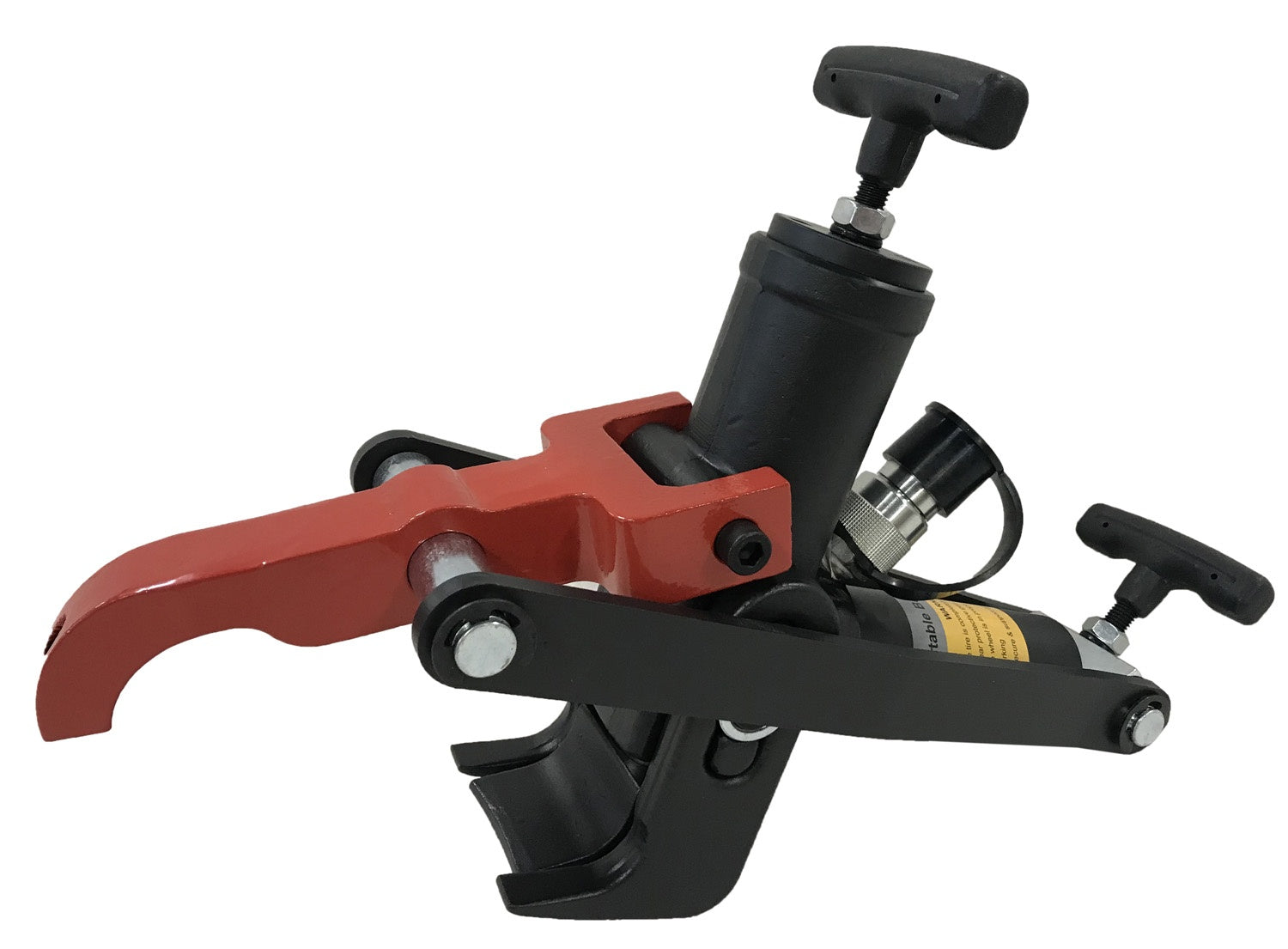

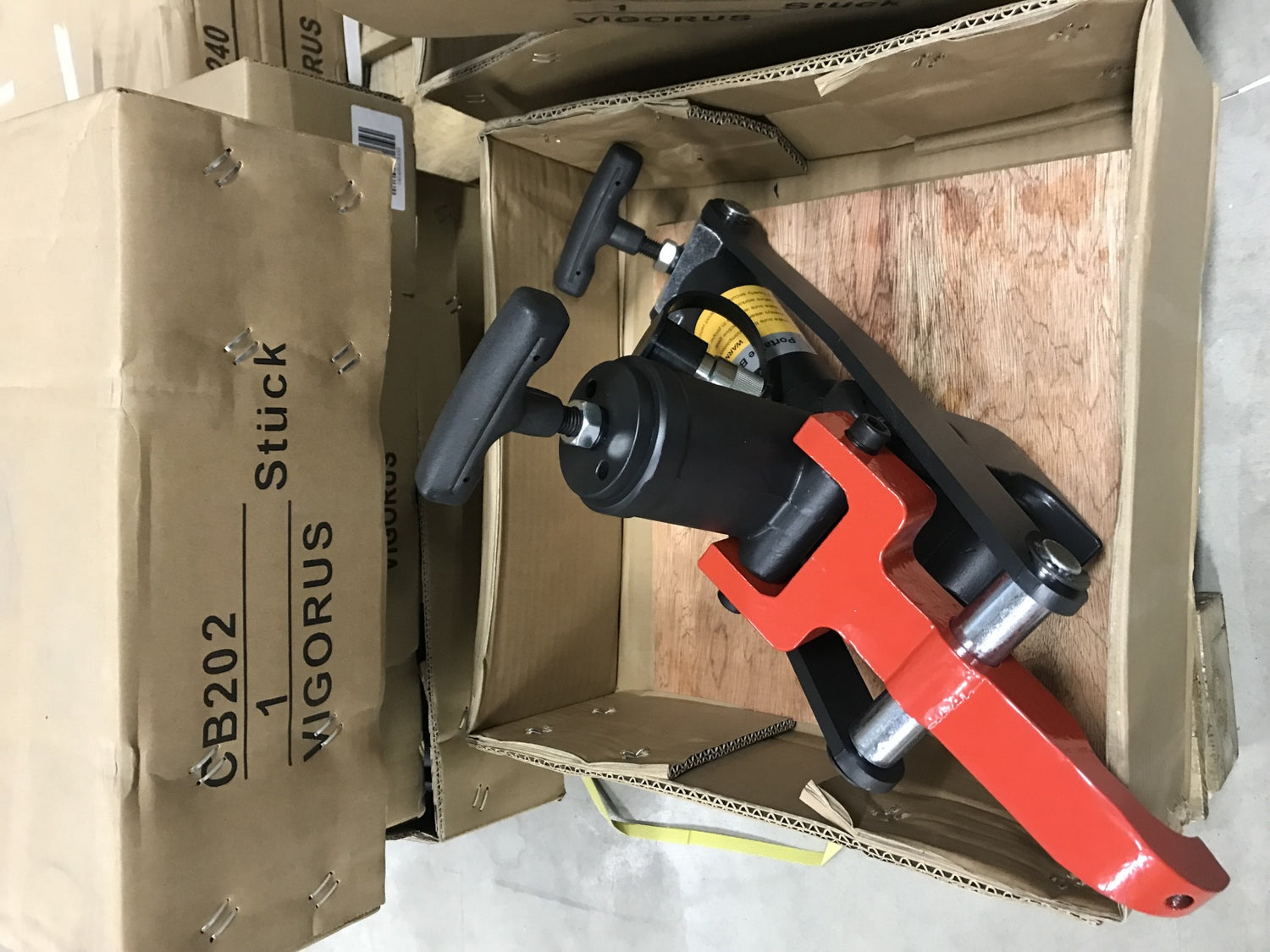

COMBINED TIRE MOUNTING BEAD TOOL | HYDRAULIC | 10 T (CB202)

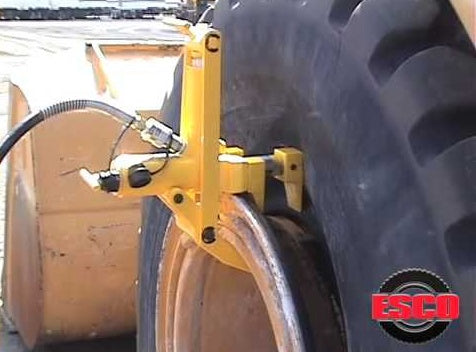

The hydraulic tire mounting tool CB202 is a robust and durable PRO-class device, made of cast iron and other meticulously crafted components, designed for quick and efficient changing of one, two, and three-piece tires on trucks, buses, minibusses, tractors, graders, commercial vehicles, agricultural machinery, and other heavy-duty vehicles; also, without removing the wheel. Rust-resistant. The tool can be used from both sides of the wheel.

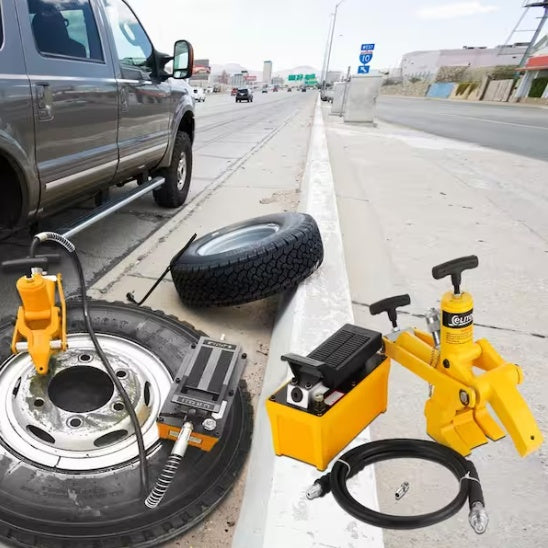

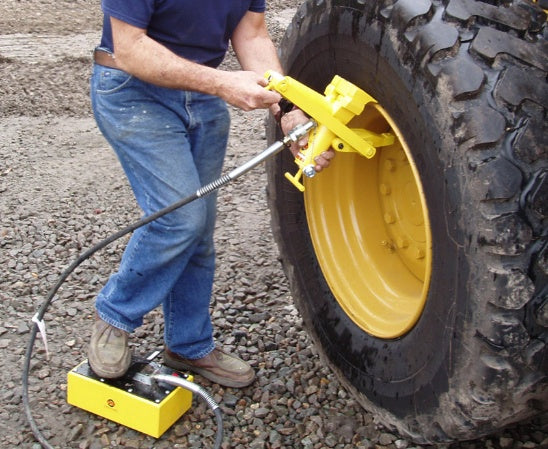

The hydraulic cylinder of the tire mounting tool has a powerful spring that enables a self-retracting function, significantly speeding up and simplifying work with the device. The hydraulic tire mounting tool can be used without any additional devices, but maximum efficiency is achieved when connected to the pneumatic-hydraulic pump E5102C, which you can also purchase in our store.

connection ["]: 3/8 NPT

force [t]: 10

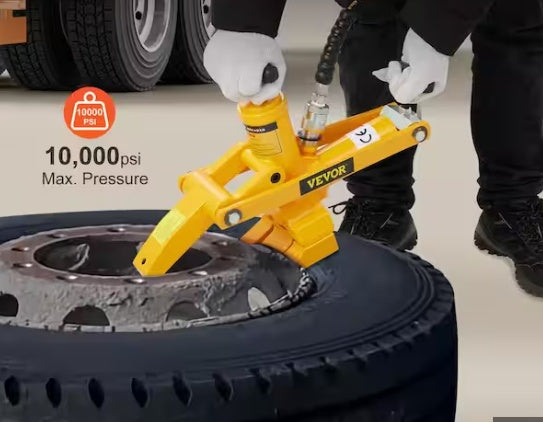

operating pressure [BAR]: 689

hydraulic cylinder stroke Max. [mm]: 108

pushing foot tooth length [mm]: 63.5

tire size ["]: ≤25

The product package does not include a pneumatic hydraulic pump.

ATTENTION! The device cannot be used for working with five-piece earthmoving machine tires and rims.

Total weight [kg]: 16.500
