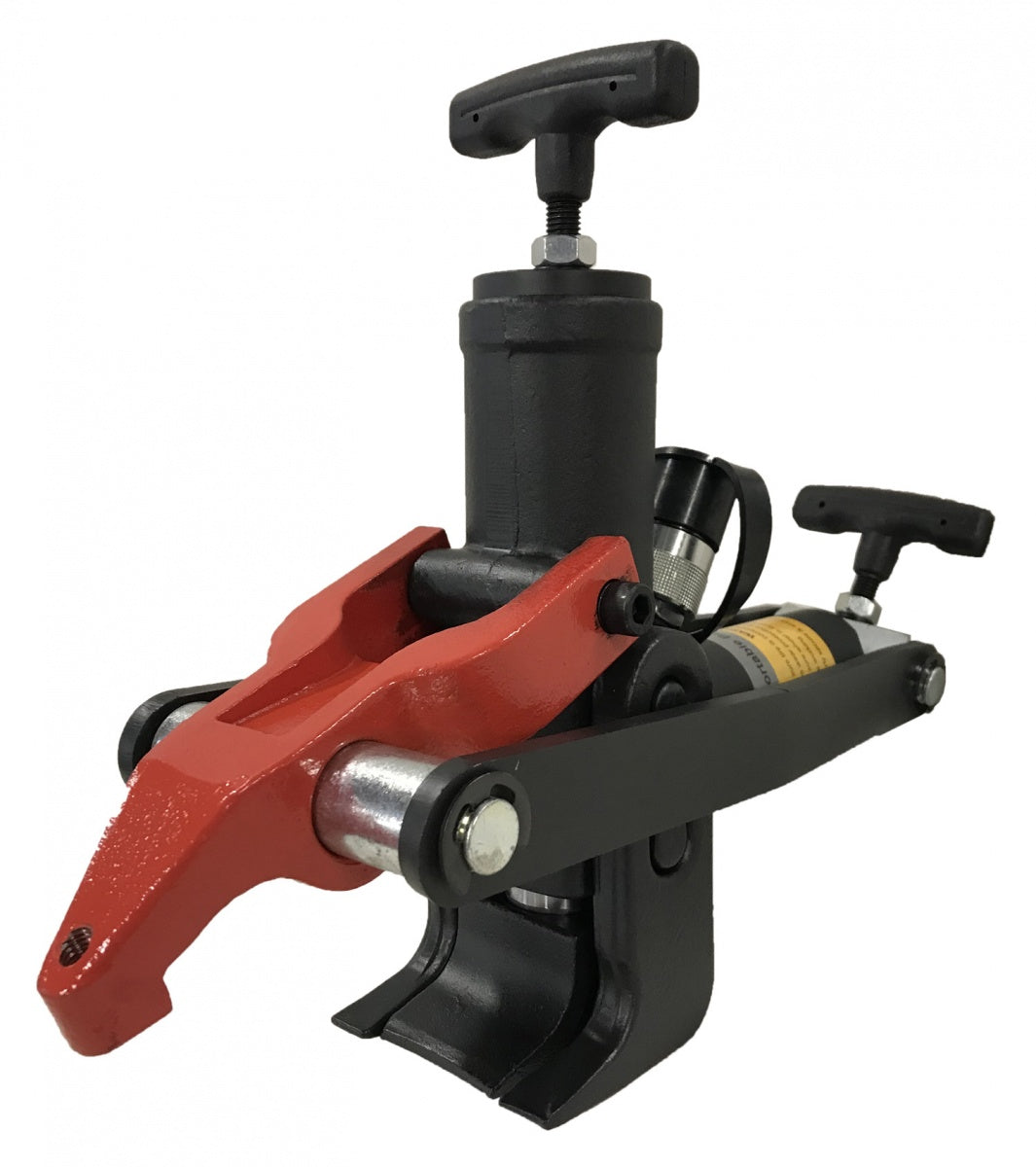

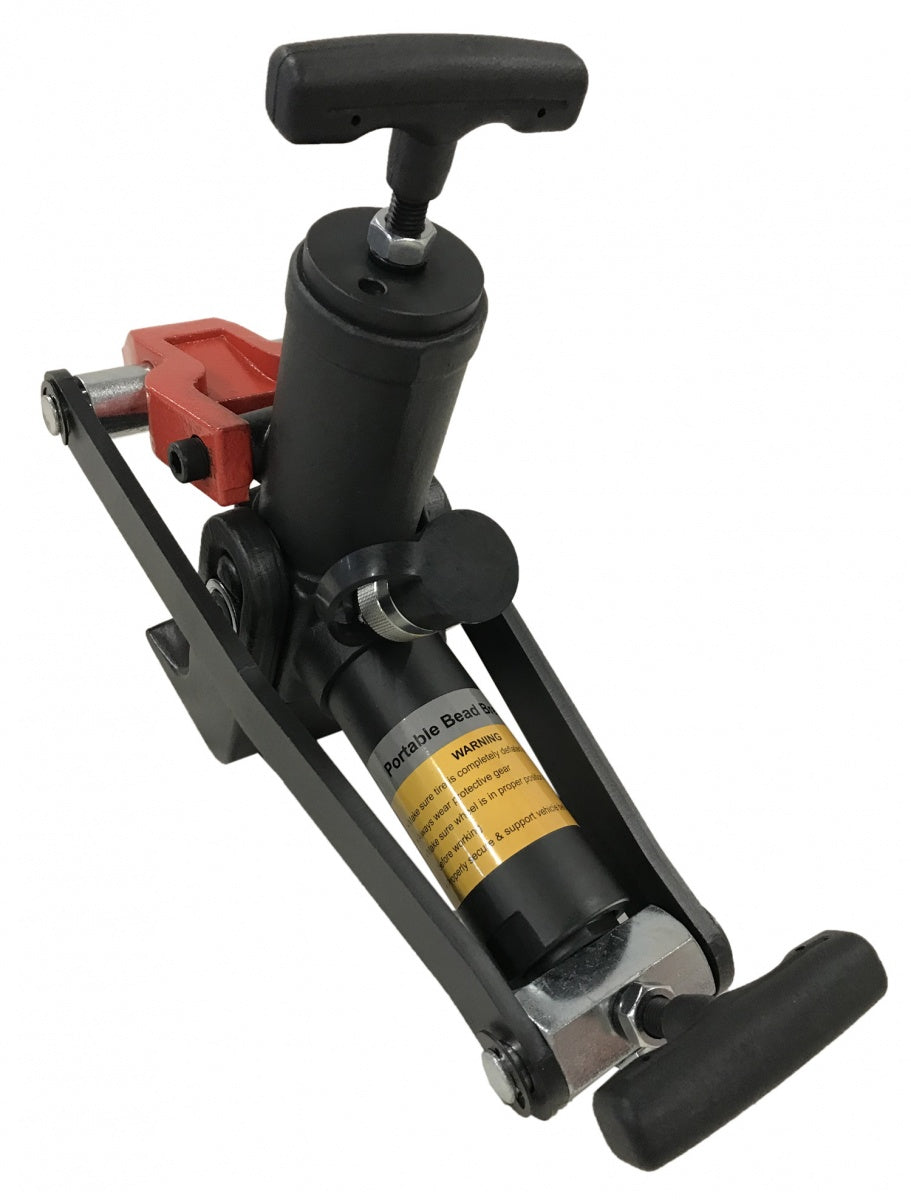

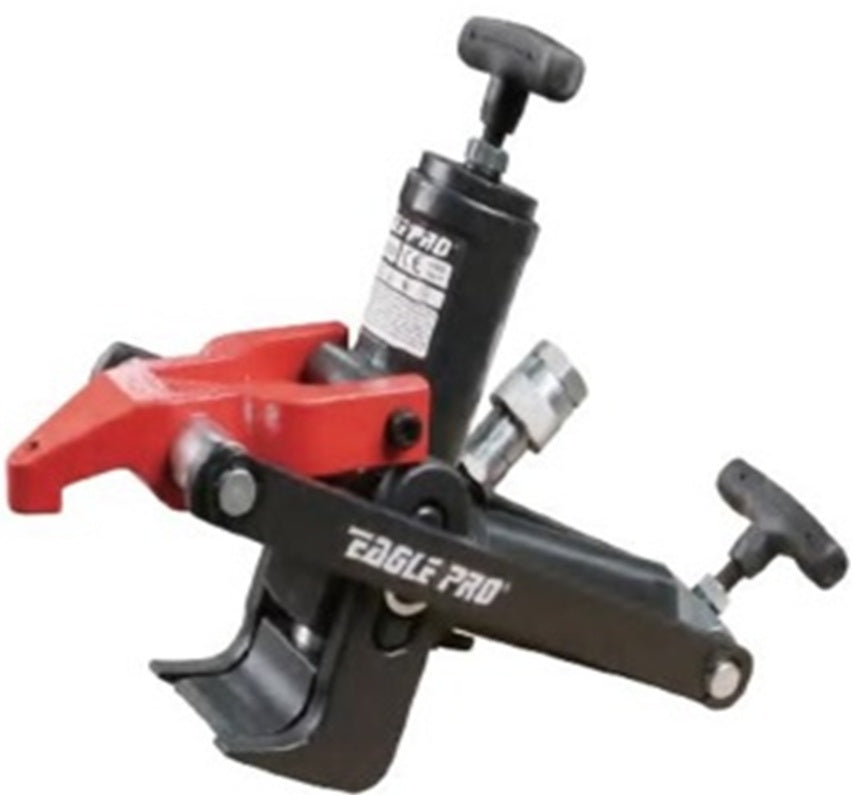

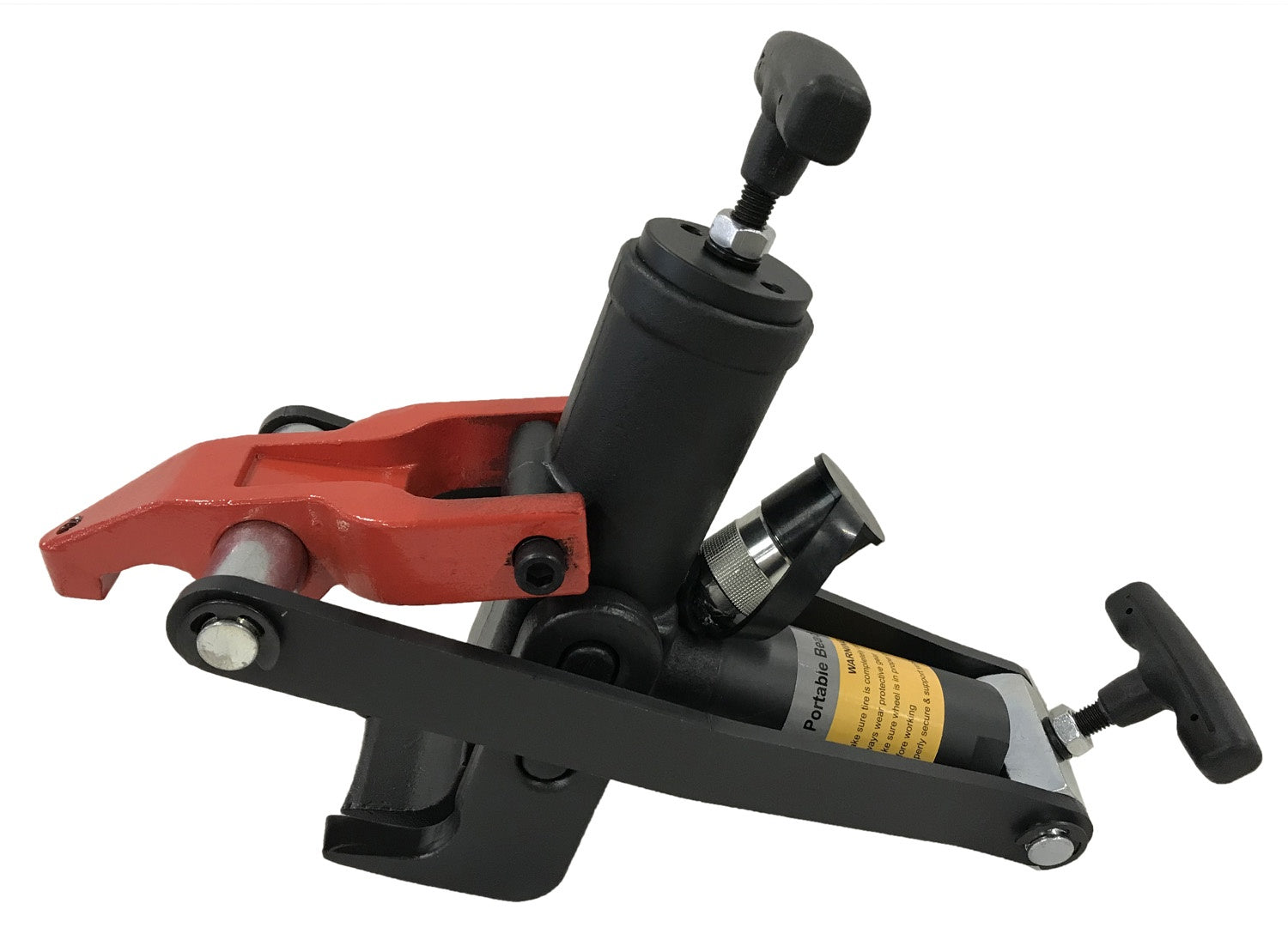

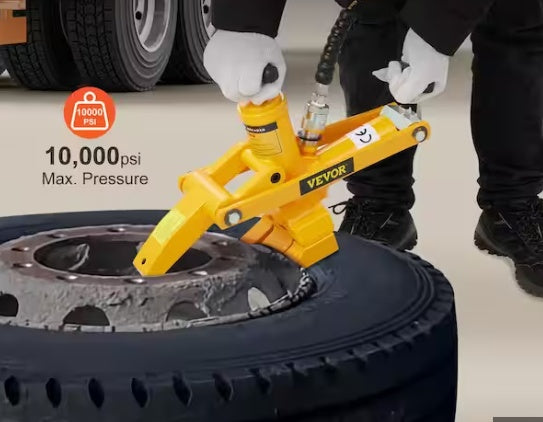

COMBINED TIRE MOUNTING BEAD TOOL | HYDRAULIC | 10 T (CB200)

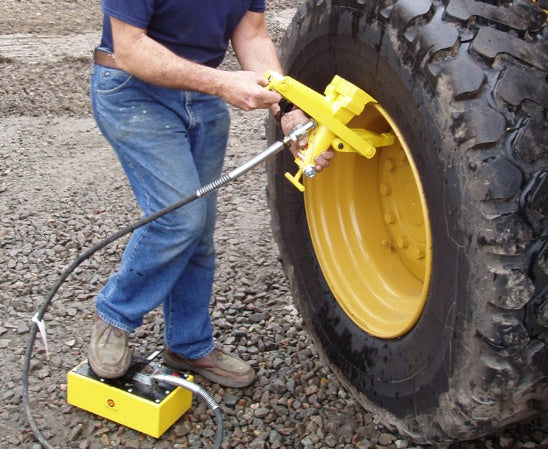

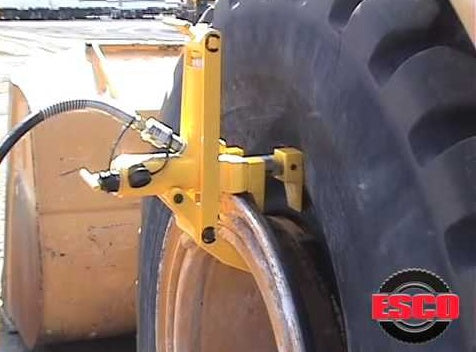

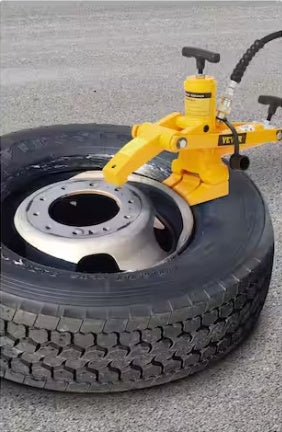

The CB200 hydraulic tire mounting tool is a robust and durable PRO-class device made of cast iron and other carefully processed components, designed for fast and efficient changing of one, two, and three-piece truck, bus, minibus, tractor, grader, commercial vehicle, agricultural machinery, and other heavy vehicle tires; also without removing the wheel. Rust-resistant. The tool can be used from both sides of the wheel.

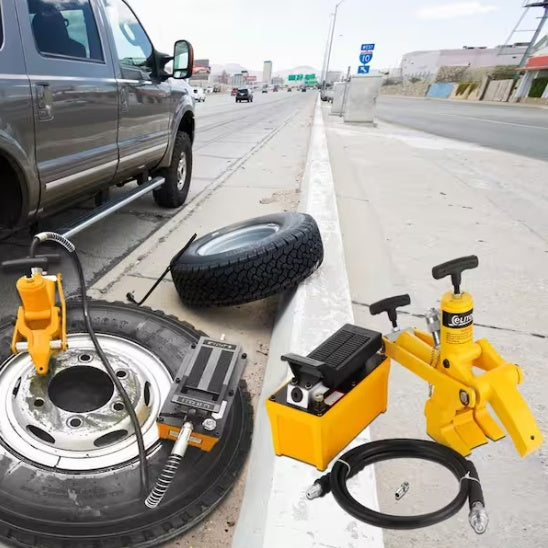

The tire mounting tool's hydraulic cylinder has a powerful spring that enables a self-retracting function, significantly speeding up and facilitating work with the device. The hydraulic tire mounting tool can be used without any additional devices, but maximum efficiency is achieved by connecting it to the pneumo-hydraulic pump E5102C, which you can also purchase in our store.

Connection ["]: 3/8 NPT

Force [t]: 10

Working pressure [BAR]: 689

Hydraulic cylinder stroke Max. [mm]: 127

Pushing foot tooth length [mm]: 63.5

Tire size ["]: ≤25

The product does not include a pneumo-hydraulic pump.

ATTENTION! The device cannot be used for working with five-piece earthmoving machine tires and rims.

Gross weight [kg]: 13.200
