CO-HSS TWIST DRILL BIT SET 25 PCS 1-13MM (YT-41605)

Brand
Yato
Entity responsible for this product in the EU
TOYA S.A.More
Series
GRD
Diameter
1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10, 10.5, 11, 11.5, 12, 12.5, 13 mm
Overall length
34, 43, 49, 57, 61, 70, 75, 80, 86, 93, 93, 101, 109, 109, 117, 117, 125, 125, 133, 133, 144, 142, 151, 151, 151 mm
Working part length
12, 20, 24, 30, 33, 39, 43, 47, 52, 57, 57, 63, 69, 69, 75, 75, 81, 81, 87, 87, 94, 94, 101, 101, 101 mm
Toolholder type
tube-shaped
Material
HSS-E Co HS6-5-2-5
Surface finish
refined, polished
DIN
338
Standard
PN-EN ISO 4957:2002(U)

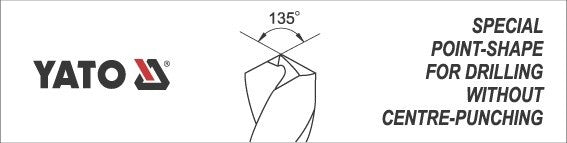

Drill bit point angle
135
Split point
yes
High temperature resistance
yes
Tensile strength
>900 N/mm2
Pcs
25
Application
corrosion-resistant alloy, stainless steel, acid-resistant steel, cast iron, non-ferrous metals, synthetic material
Symbol
YT-41605

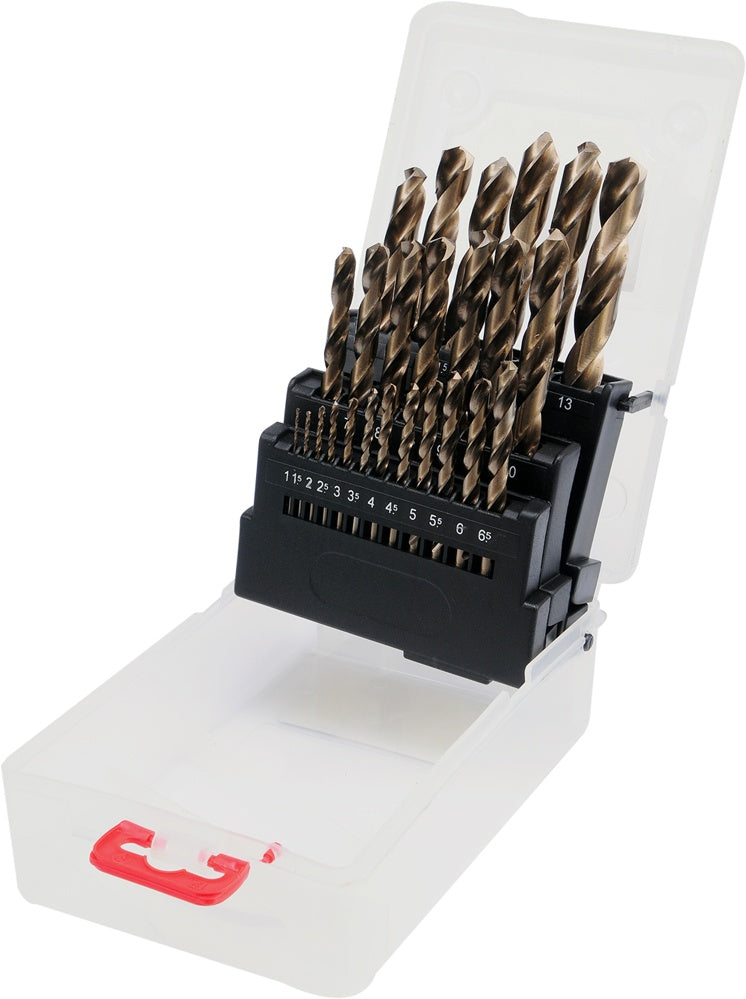

A set of cobalt drills for metal, 25 pcs. Resistant to high temperature. The set consists of 25 drills with a diameter [mm]: 1; 1.5; 2; 2.5; 3; 3.5; 4; 4.5; 5; 5.5; 6; 6.5; 7; 7.5; 8; 8.5; 9; 9.5; 10; 10.5; 11; 11.5; 12; 12.5; 13 - Industry - for precise drilling in difficult materials, e.g. precious steel, non-ferrous metals, plastics, stainless steel and acid-resistant steel. Includes a box with drill sizes. Drills 25 pcs

Usage warnings:

Use of hand tools may be dangerous! Always use personal protection equipment at work. Use only proper undamaged tools. Select the type and size of tool according to intended application. Do not overload tools. Keep tools away from children. Use tools with proper care.
