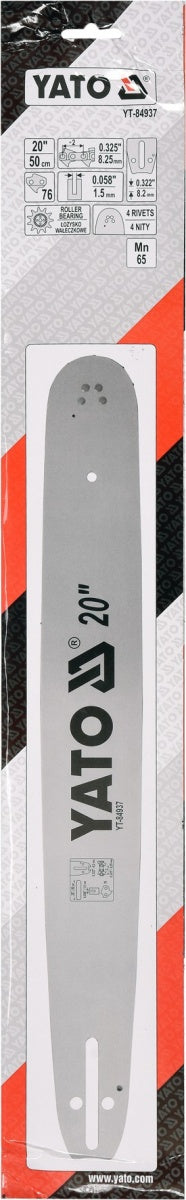

CHAINSAW GUIDE BAR 0,325" / 0,058" 20"U (YT-84937)

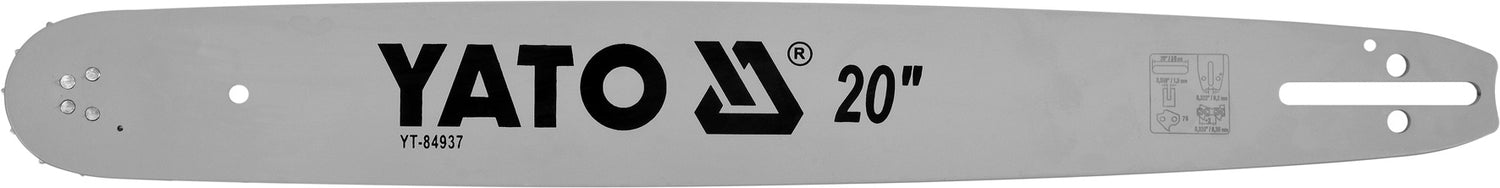

Chain guide for YATO YT-84937 chainsaws.

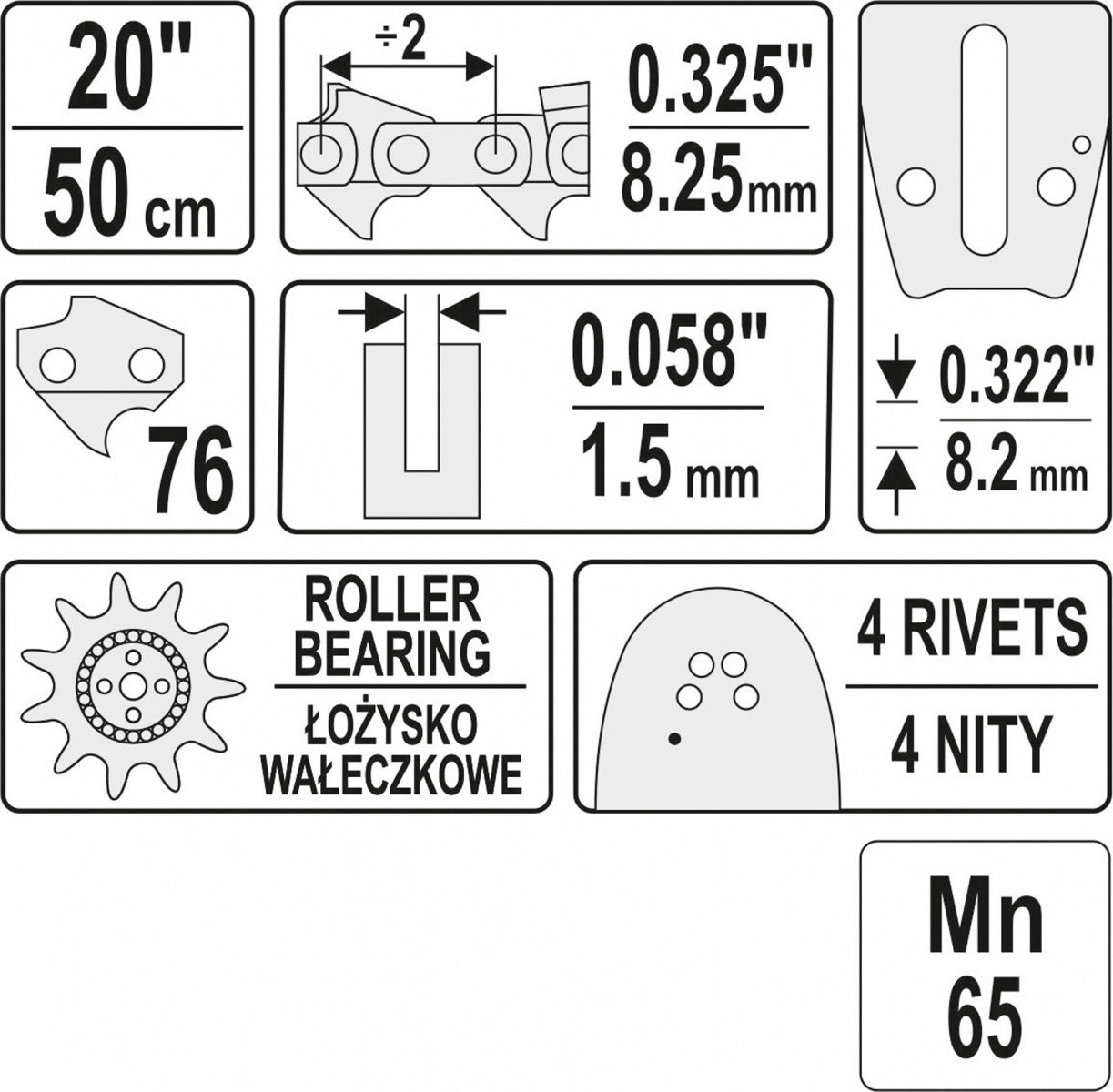

Length 20", 76 links, pitch 0.325", width 0.058" (1.5 mm).

It is made of Mn65 manganese steel, which significantly increases the guide's resistance to abrasion and overheating, extending its life. The sprocket nose is fixed with 4 rivets, ensuring the highest precision of assembly and increasing the strength of the guide. In addition, the sprocket nose has a roller bearing that guarantees precise chain guidance, minimizing resistance during operation.

YATO guides have a special lubrication system with an oil reservoir, from which the chain collects oil and distributes it evenly over the entire length of the guide. As a result, working resistance is reduced and cooling is increased, which significantly extends the life of the entire cutting system.

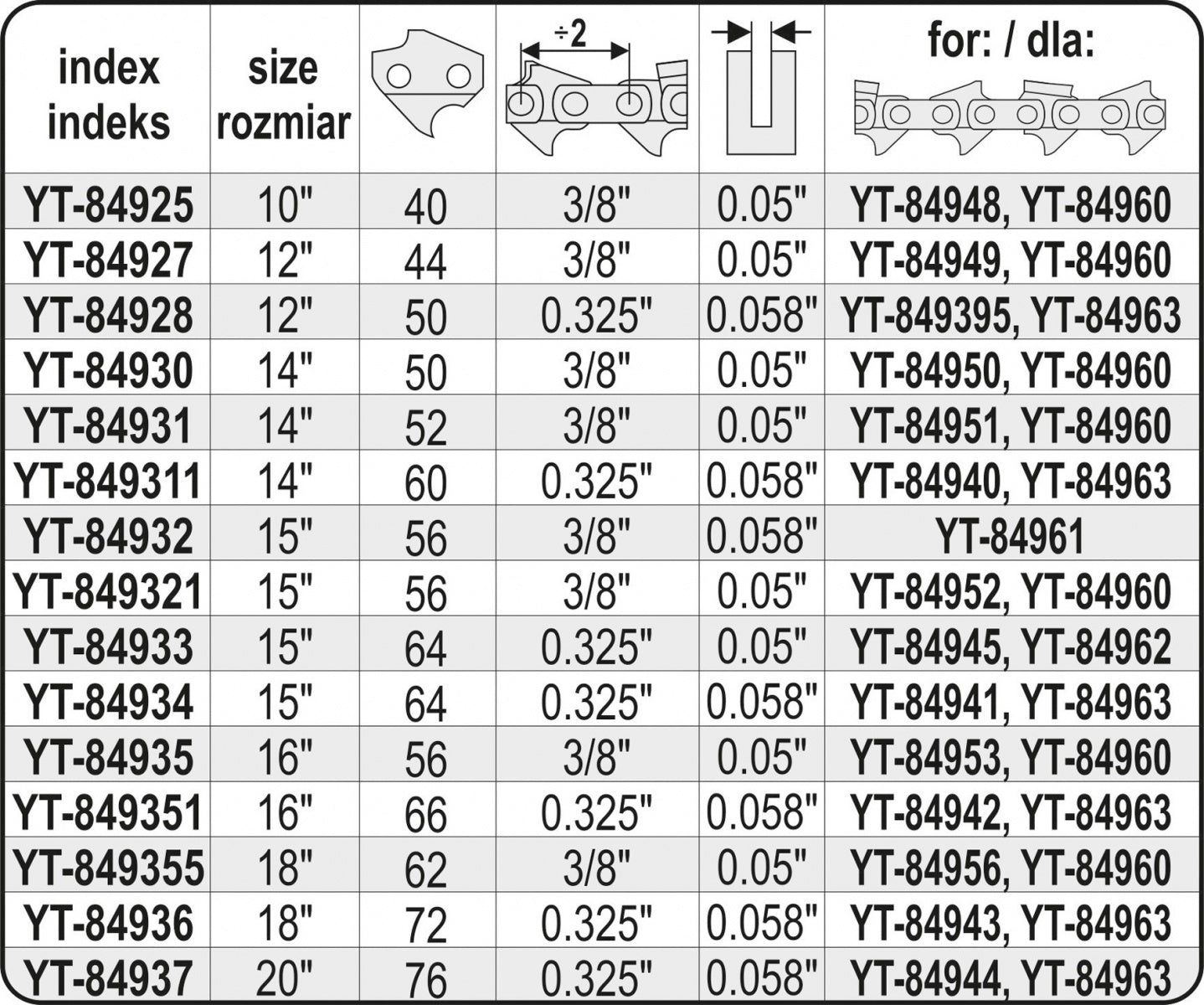

YATO guides are intended for home and professional use. They are dedicated to work around the house and in the garden. They are also well-suited for tree cutting. It is suggested to use guides with YATO YT-84944 or YT-84963 chains. It is also possible to use them with chains from other manufacturers.

Technical data
Index number YT-84937
Brand Yato
Size [inch] 20
Number of cells 76
Pitch [inch] 0.325 "
Width [inch] 0.058 "
