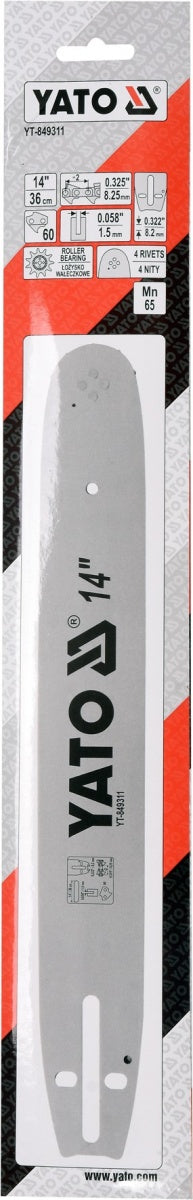

CHAINSAW GUIDE BAR 0,325" / 0,058" 14"E (YT-849311)

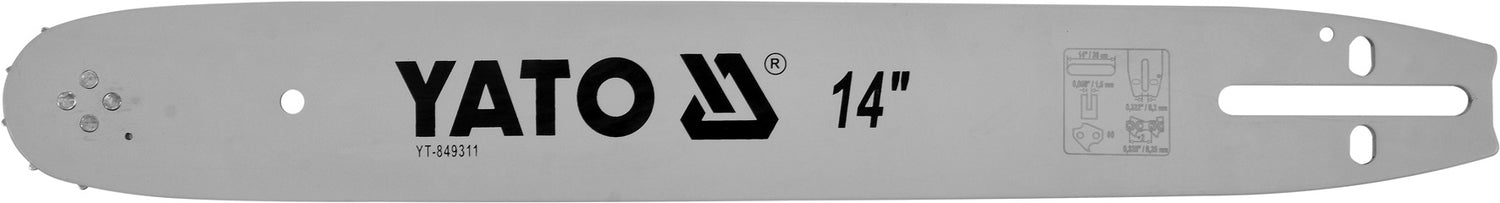

Chain guide for YATO YT-849311 chainsaws.

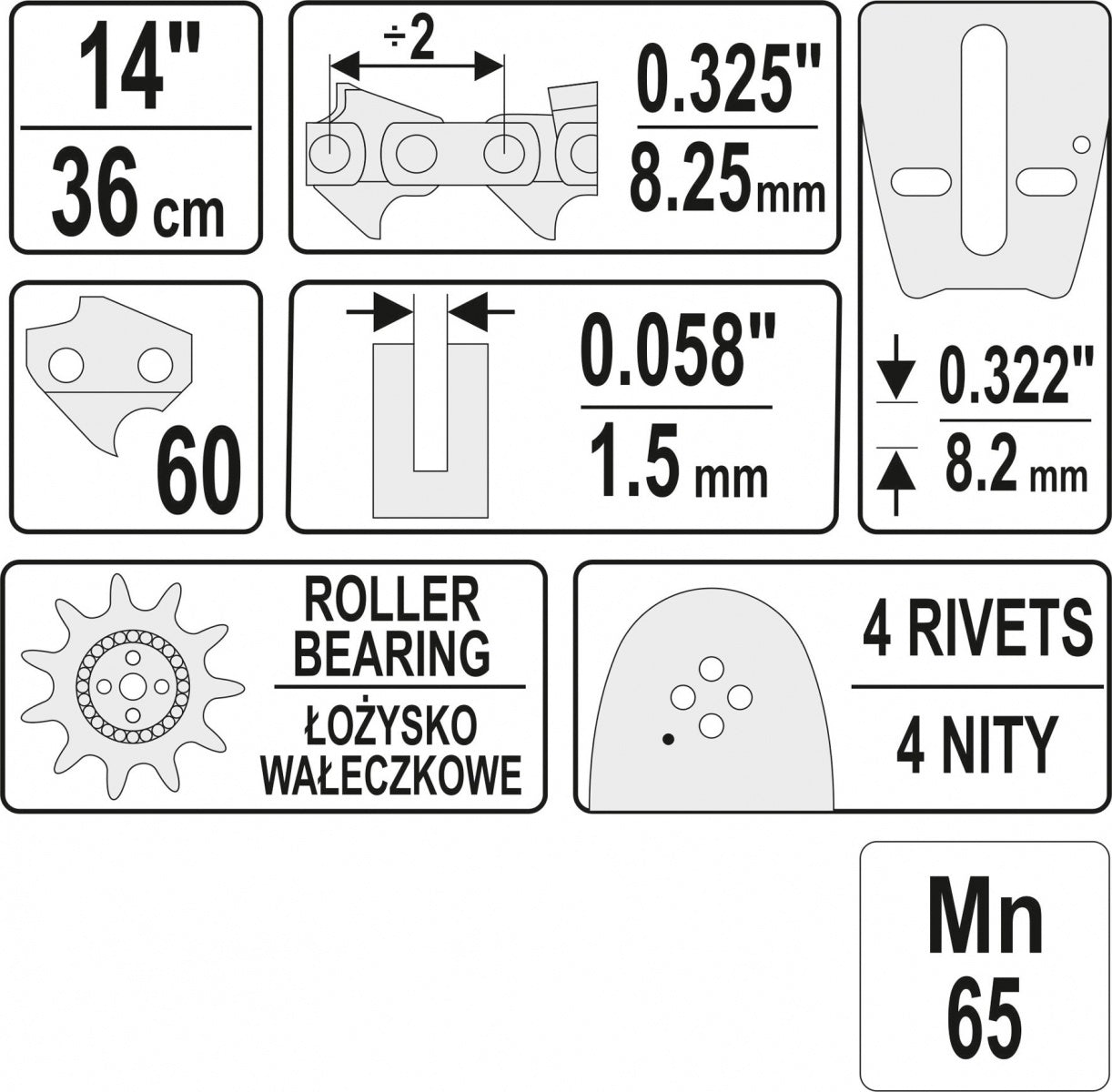

Length 14", 60 links, pitch 0.325", width 0.058" (1.5 mm).

It is made of Mn65 manganese steel, which significantly increases the resistance of the guide to abrasion and overheating, extending its life. The sprocket tip is fixed with 4 rivets, ensuring the highest precision of assembly and increasing the strength of the guide. In addition, the sprocket tip has a roller bearing that guarantees precise chain guidance, minimizing resistance during operation.

The YATO guides have a special lubrication system with an oil reservoir, from which the chain collects oil and distributes it evenly over the entire length of the guide. As a result, the working resistance is reduced and the cooling increases, which significantly extends the life of the entire cutting system.

The YATO guides are intended for home and professional use. They are dedicated to work around the house, in the garden. They are also well-suited for tree cutting work. It is suggested to use guides with YATO YT-84940 or YT-84963 chains. It is also possible to use them with chains from other manufacturers.

Technical data
Index number YT-849311
Brand Yato
Size [inch] 14
Number of links 60
Pitch [inch] 0.325"
Width [inch] 0.058"
