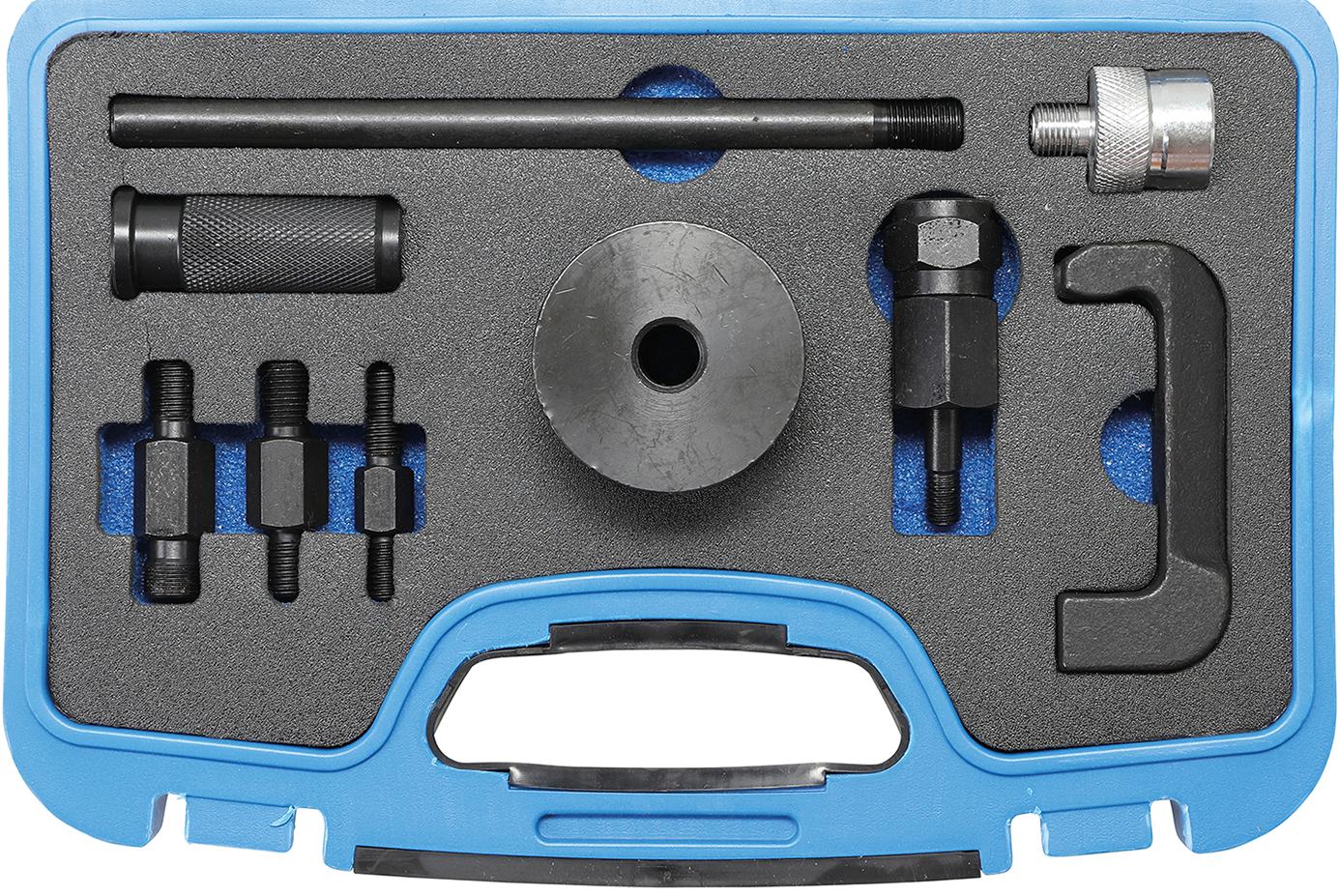

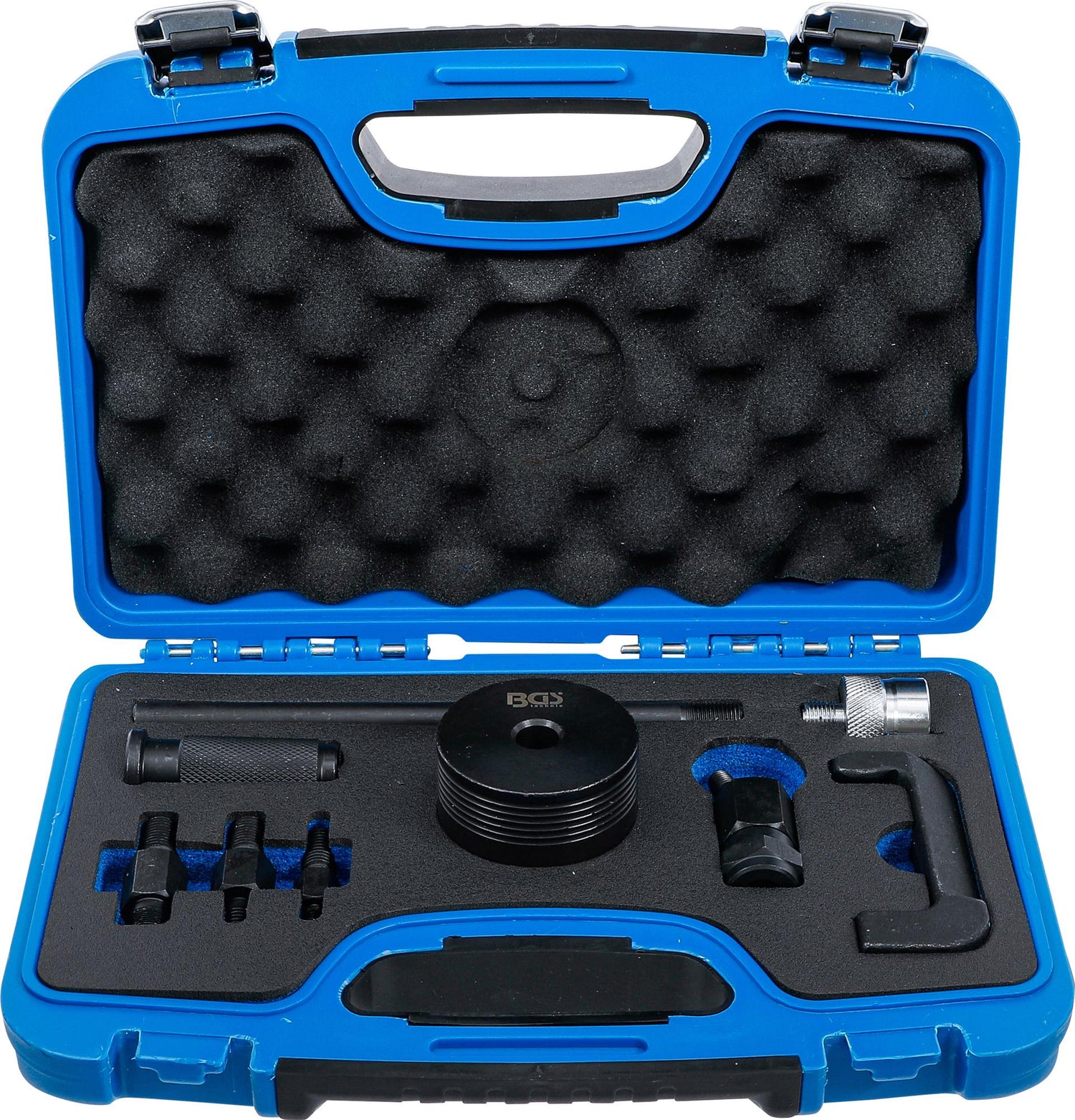

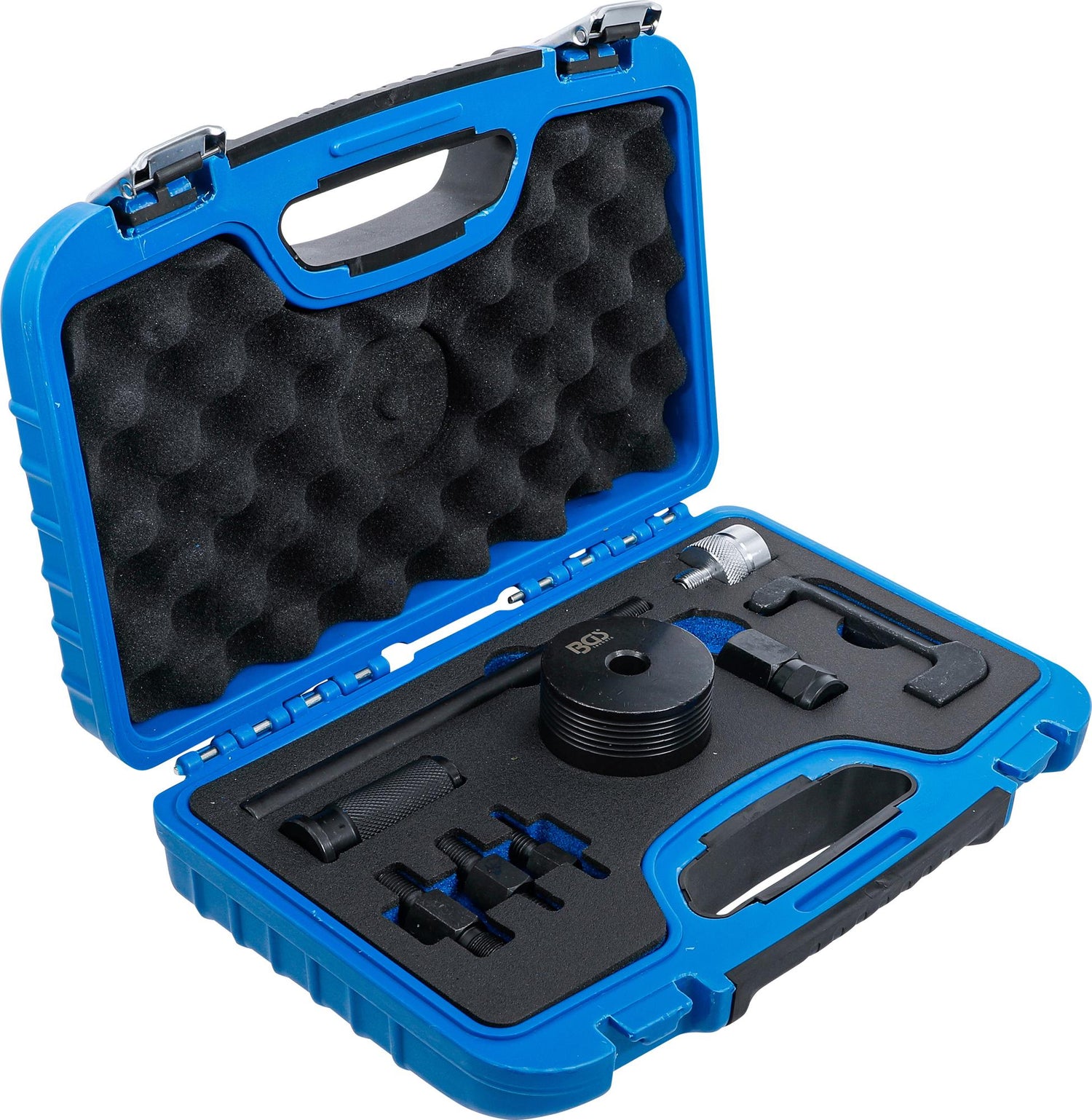

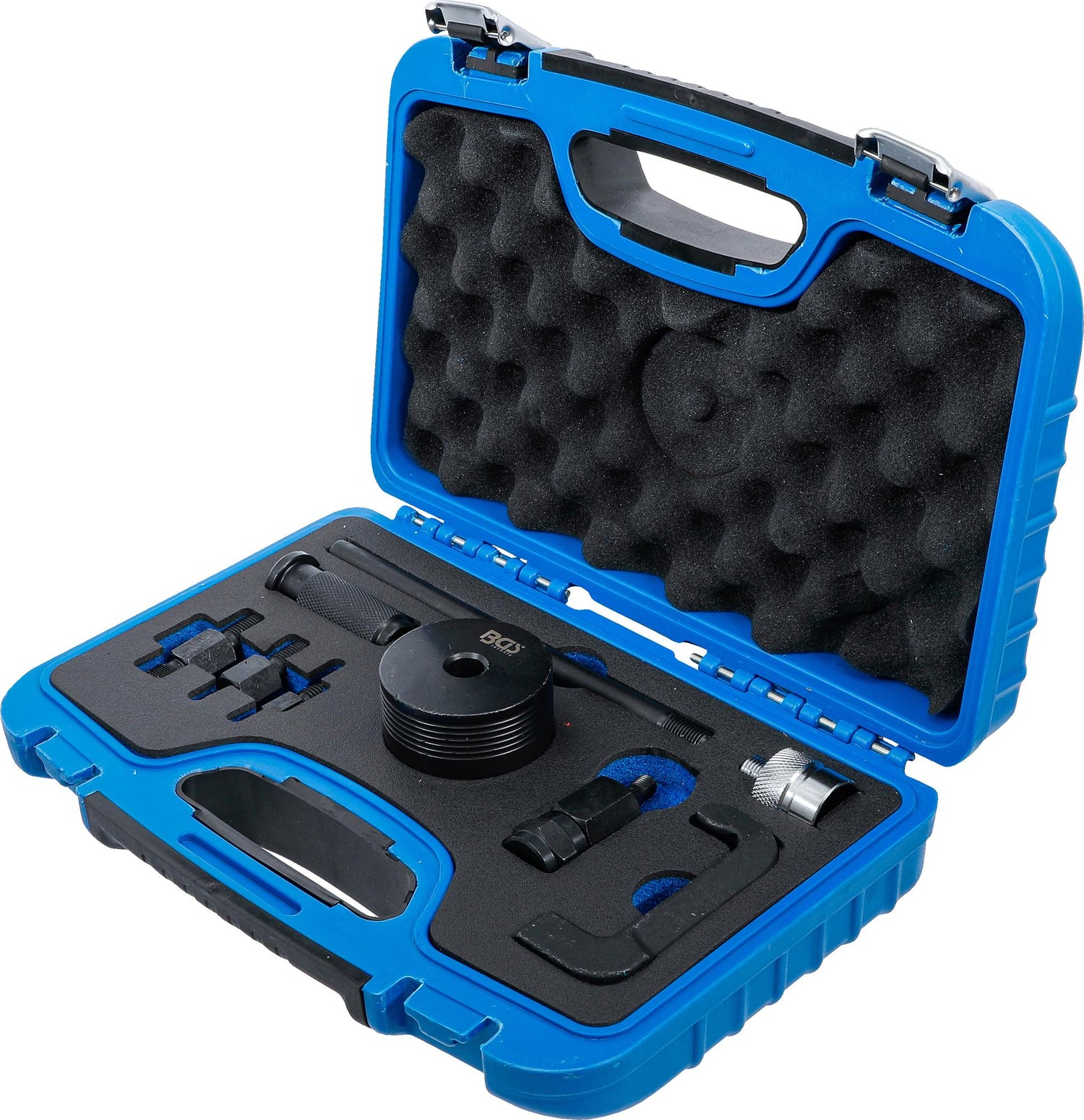

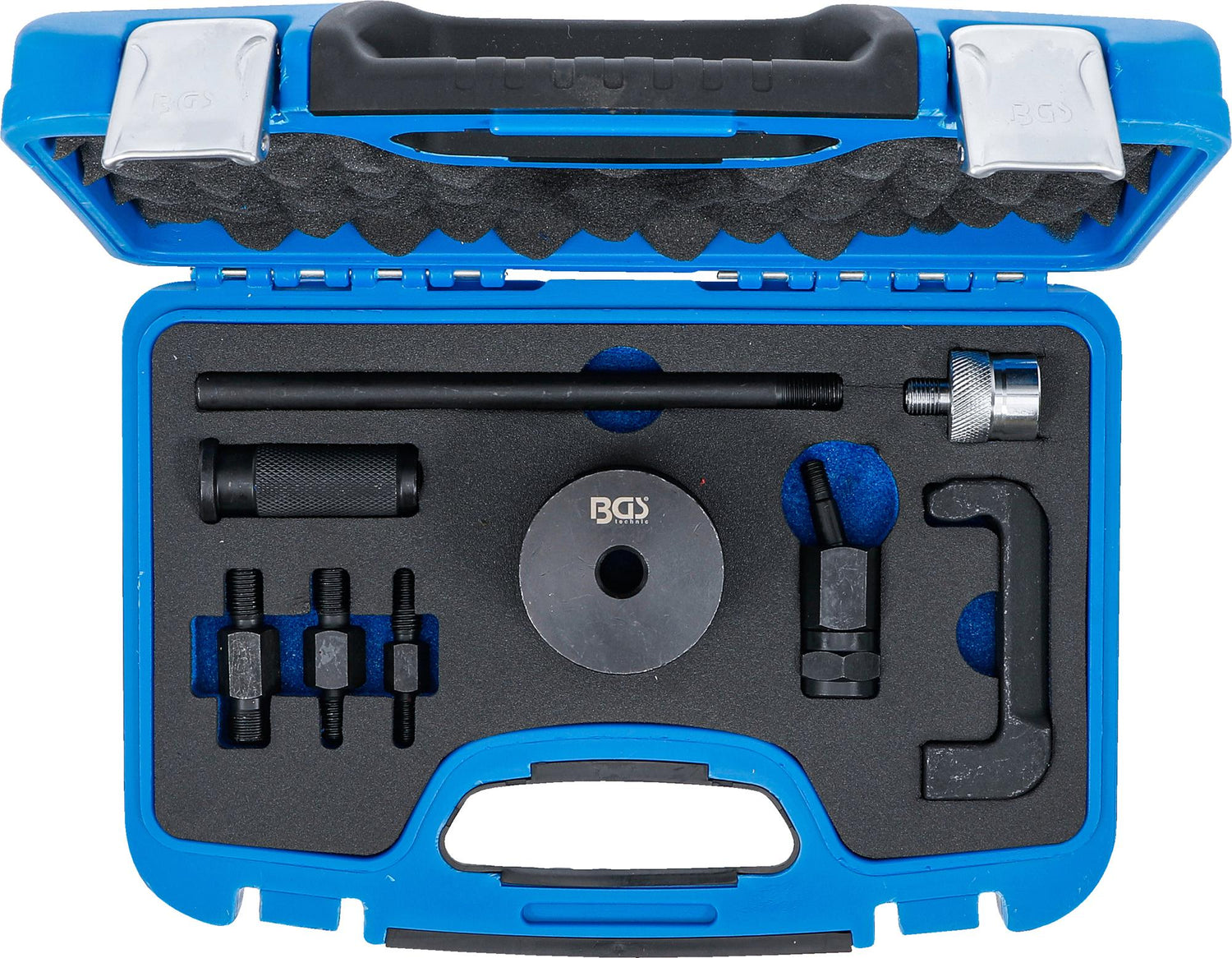

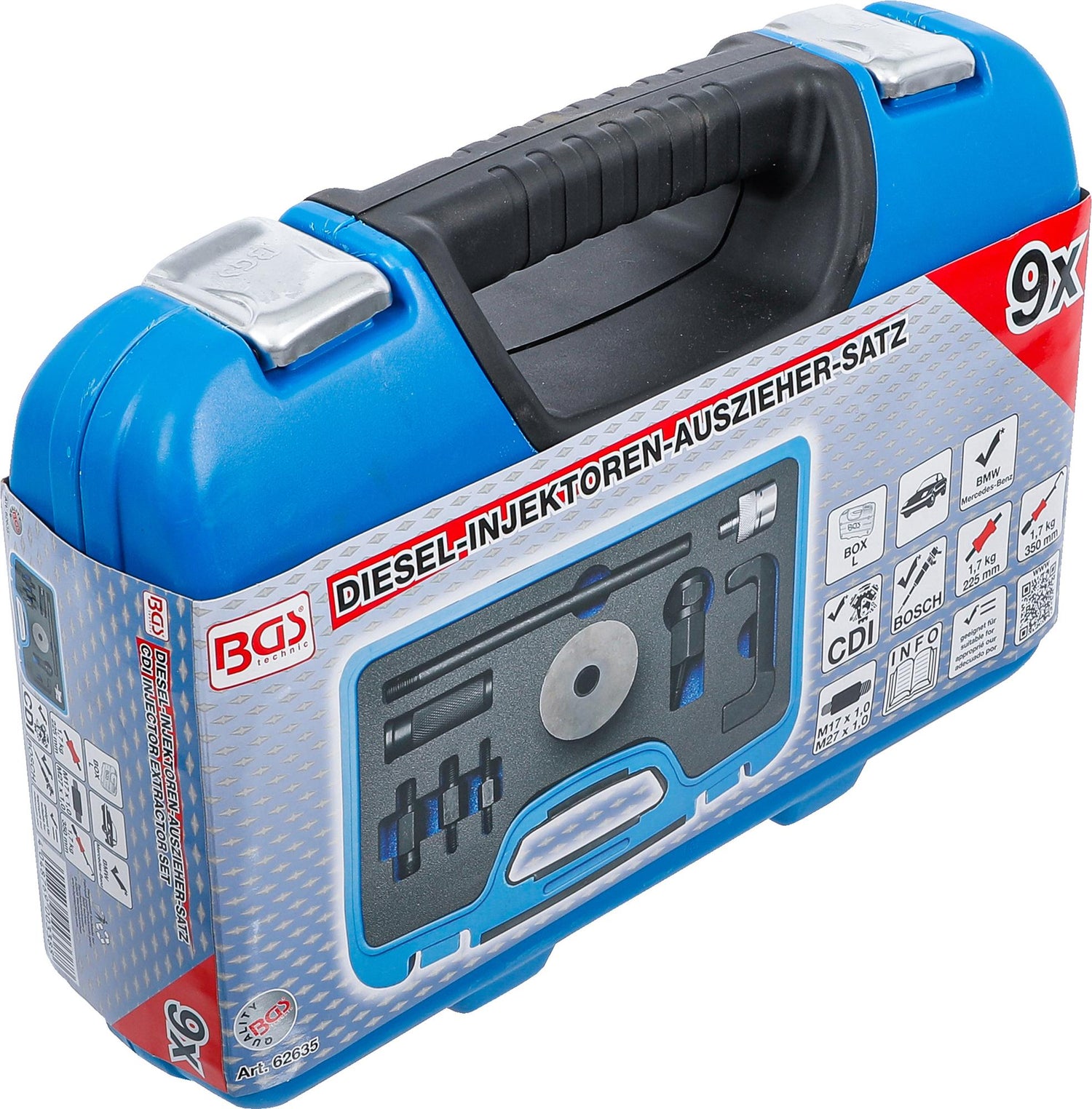

CDI INJECTOR EXTRACTOR SET | 9 PCS. (62635)

extra short, only 225 mm
suitable for e.g. Bosch injectors built in BMW, Mercedes-Benz CDI engines OM 611, 612, 613 etc.

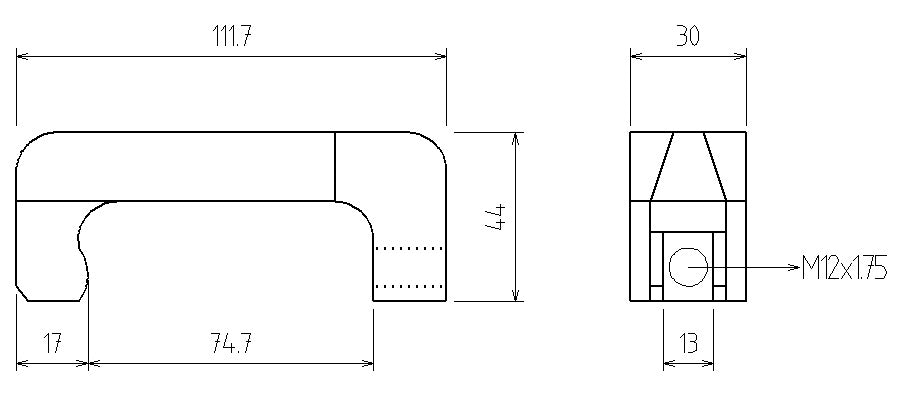

total length: 350 mm injector pulling claw, 13 mm pulling claw opening with internal thread M12 x 1.75
injector tension bolt with external thread M17 x 1.0 & external thread M14 x 1.5 for ball joint adapter
injector sleeve with internal thread M27 x 1.0 & male thread M14x1.5 for ball joint adapter
adapter with external thread M12 x 1.75 for pull claw & external thread M10 x 1.5 for slide hammer
adapter with external thread M12 x 1.75 for pull claw & external thread M14 x 1.5 for ball joint adapter
ball joint adapter with internal thread M14 x 1.5 for pulling claw / tension bolt / tension sleeve & external thread M10 x 1.5 for slide hammer
sliding hammer sliding bolt, 14 mm with internal thread M10 x 1.5 for adapters
ball joint adapter & male thread M14 x 1.5 for handle
handle length 74 mm, 26 mm with internal thread M14 x 1.5

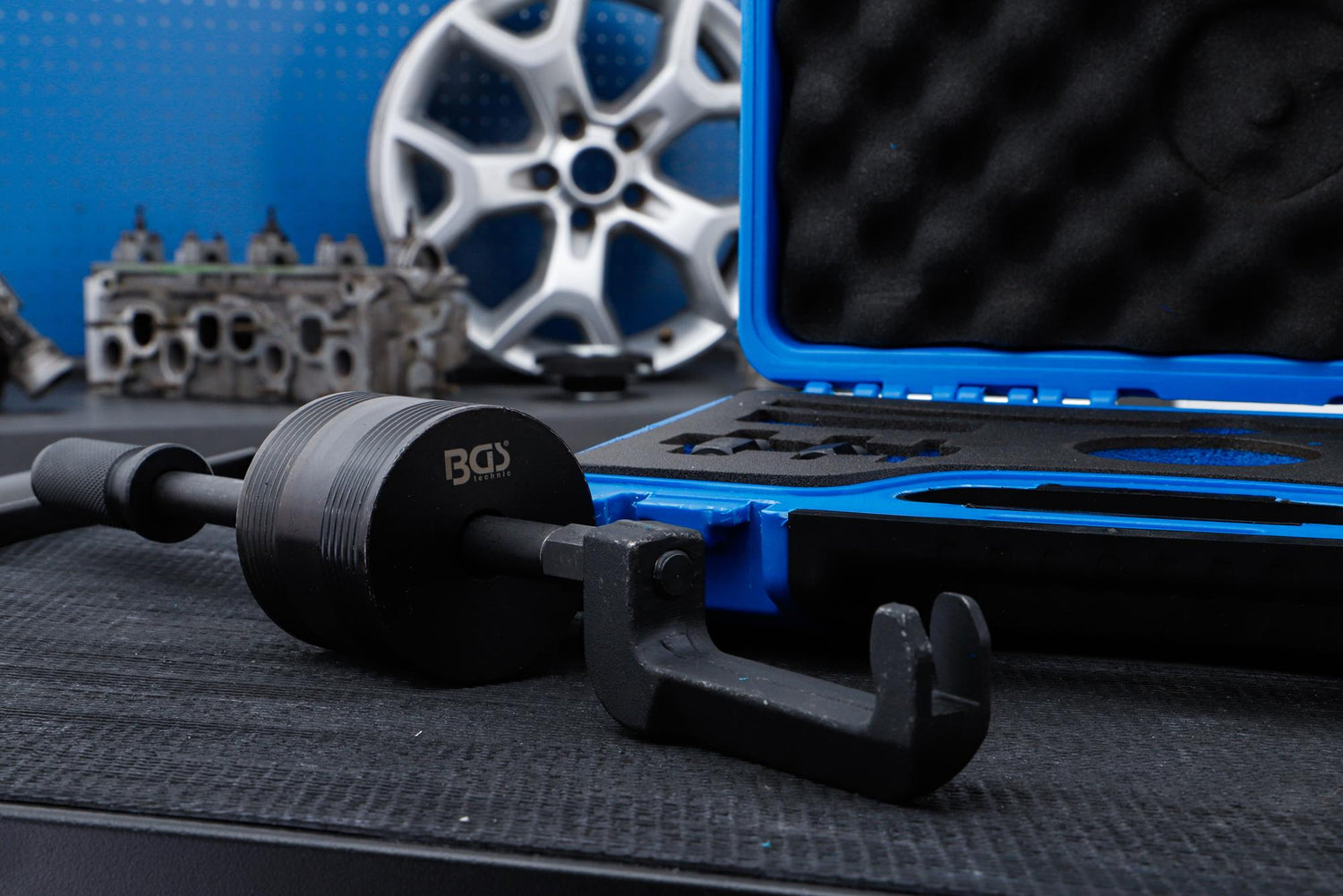

sliding hammer weight 1730g with 14 mm bore
Technical data
Gross weight4200 g
