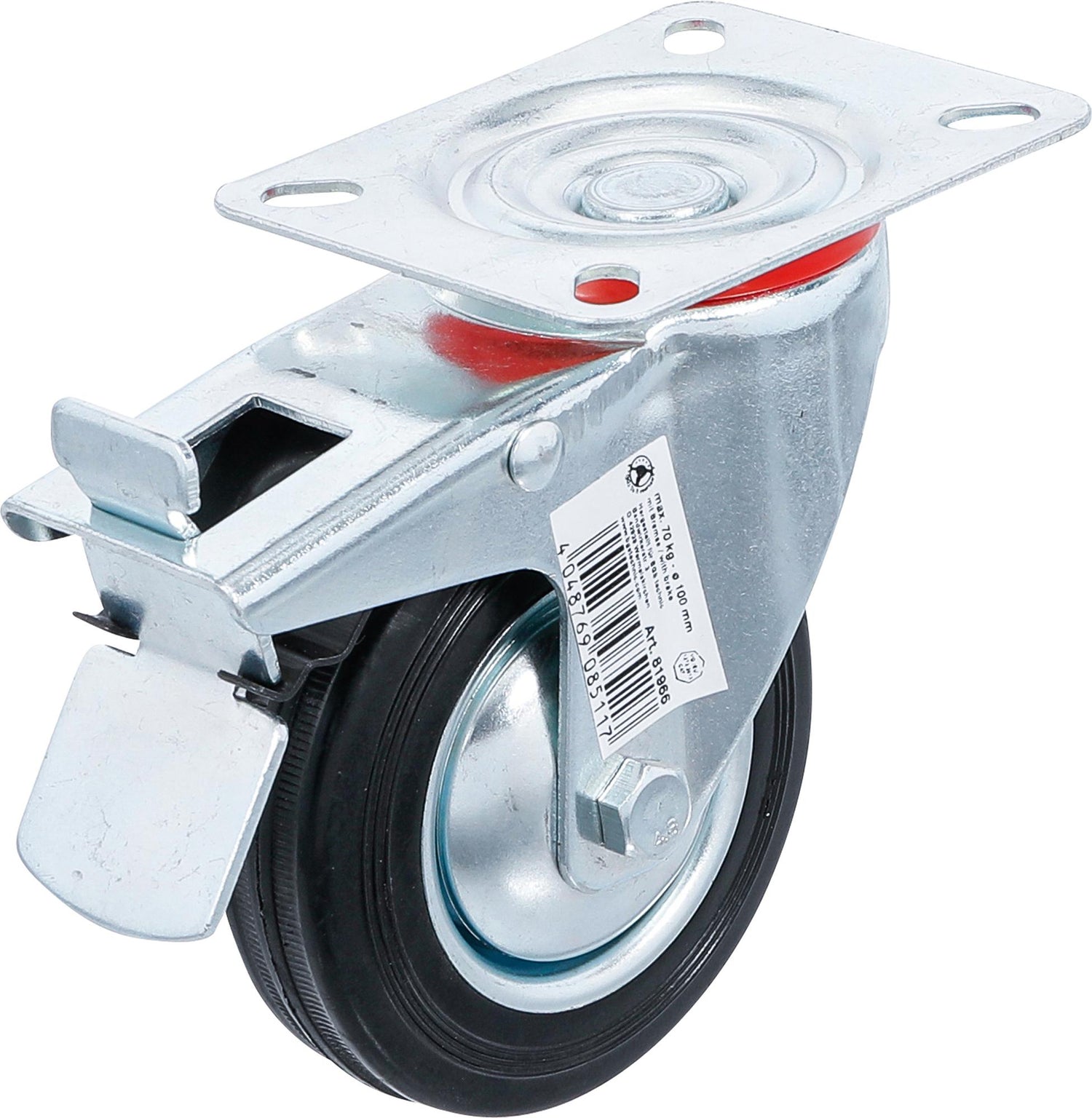

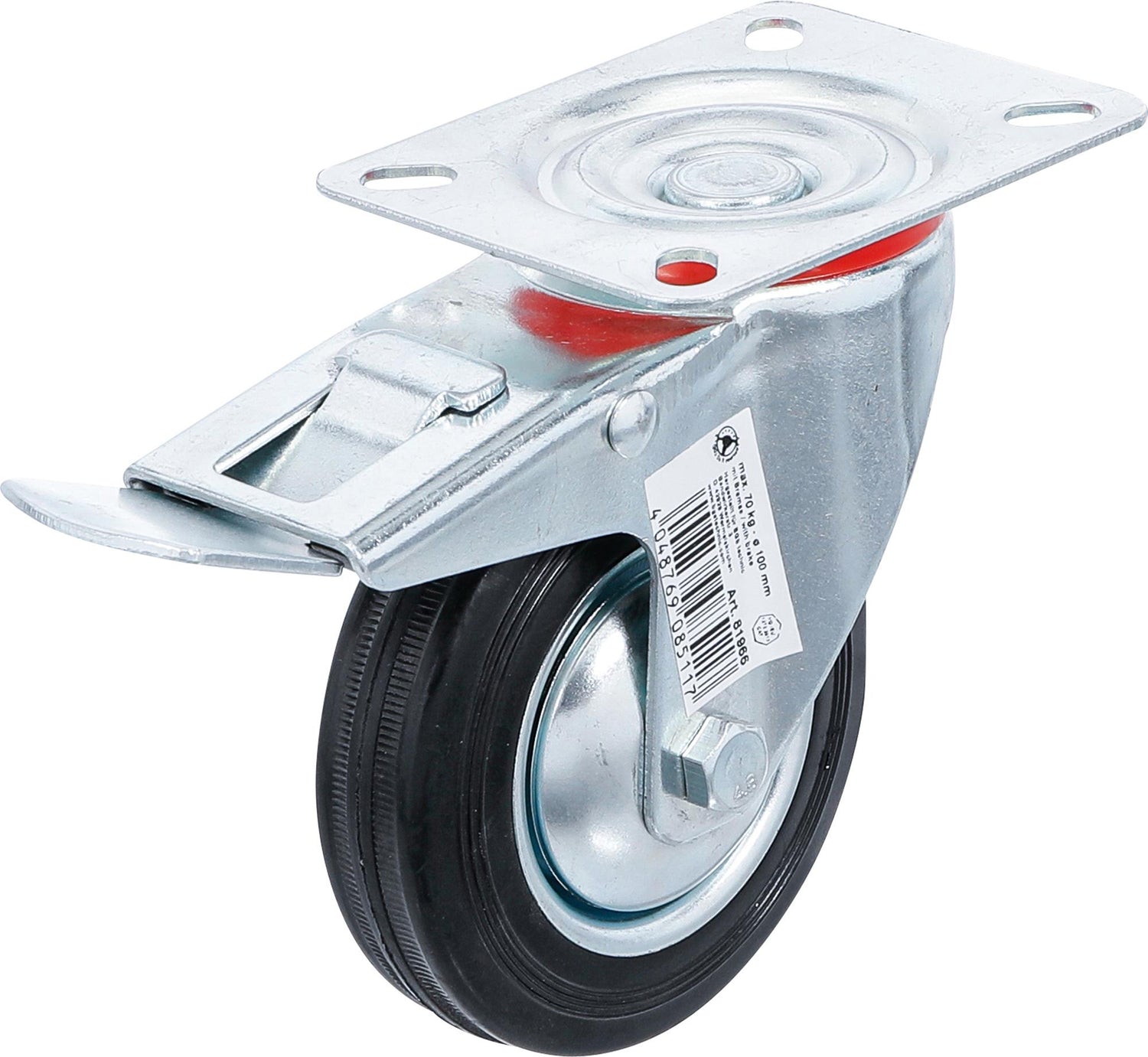

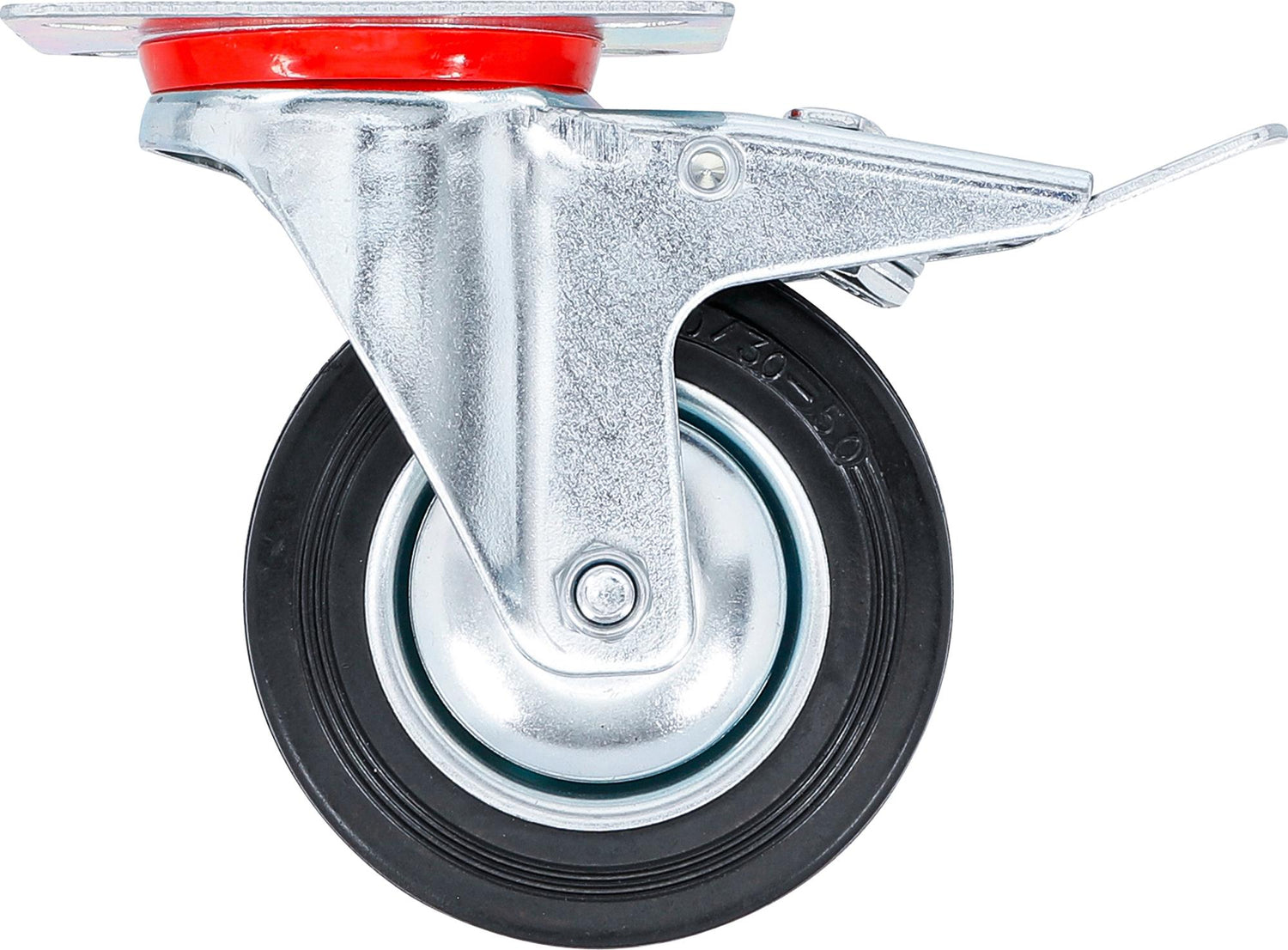

CASTOR WITH BRAKE | WITH BASE | Ø 100 MM (81966)

for indoor and outdoor use
for smooth and quiet movement on many ground surfaces
suitable for assembly trolleys, loading trolleys, transport trolleys and waste containers
made of galvanized sheet steel
with locking brake
ball bearing
dust protection sleeve
360 rotation around its own axis
operating temperature: -10 - 50 C
total height: 130 mm
hole dimensions: 8 x 13 mm
mounting hole dimensions: 75 x 55 mm

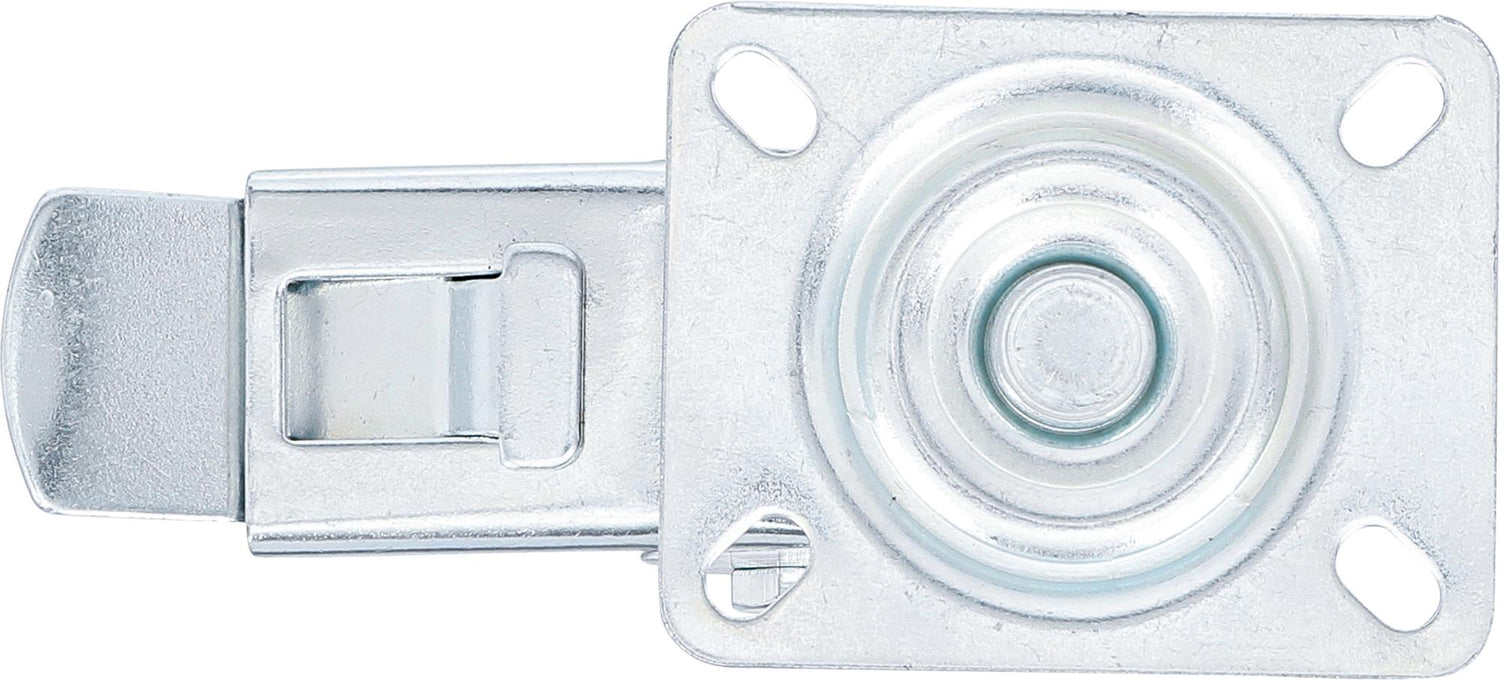

screw-on base dimensions: 100 x 80 mm
Technical data
Gross weight888 g
Wheel width26 mm
Castor diameter100 mm
Load capacity max.70 kg
