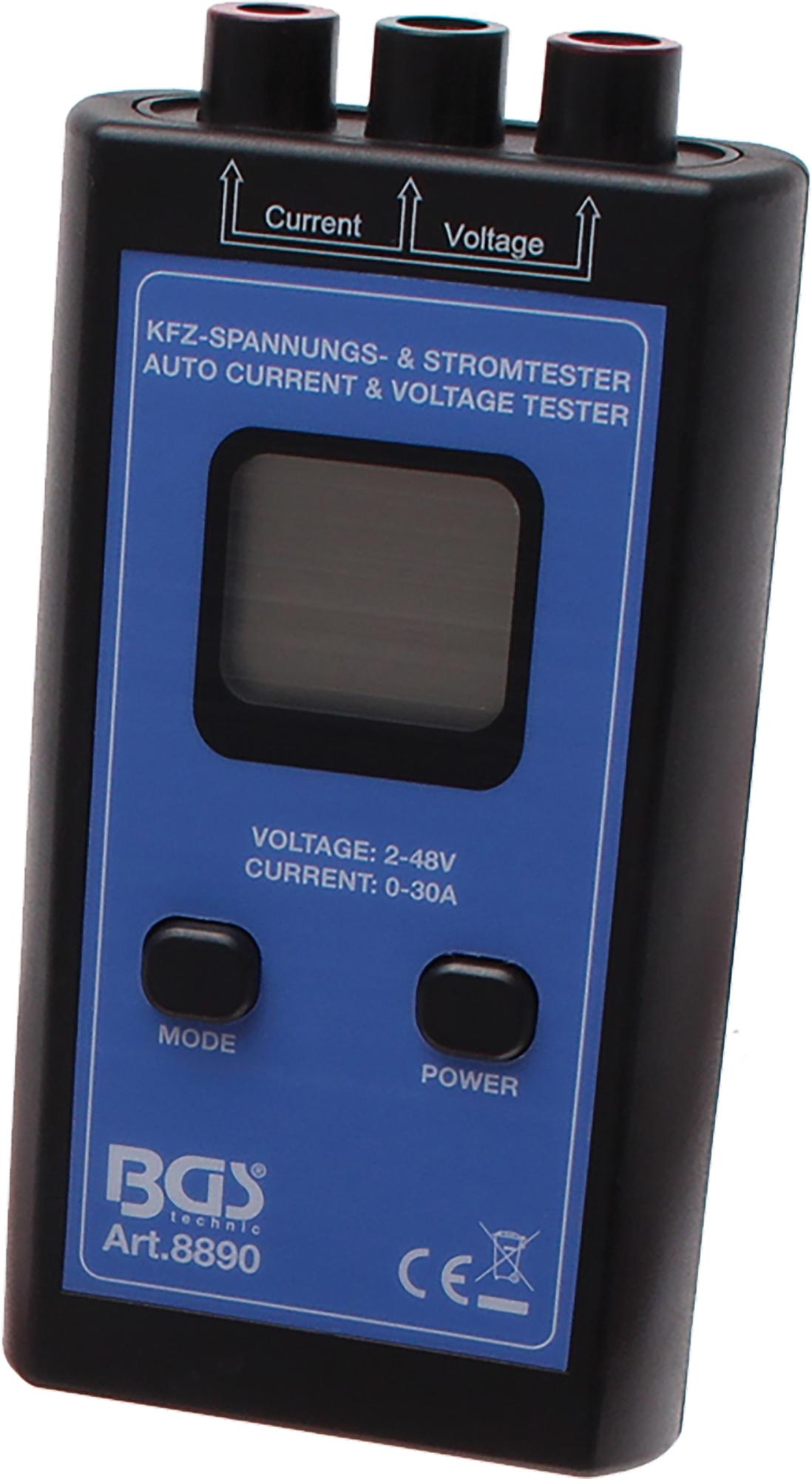

CAR VOLTAGE AND CURRENT TESTER | 1 - 48 V (8890)

ideal for the diagnosis of electrical circuits on cars
this meter is fast, accurate and safe to use
is used to measure currents (directly to the fuse socket) and voltage
current measurement: up to 30 A at 48 VDC (max. 10 sec.), accuracy: 1%
voltage measurement: 1 - 48 VDC, accuracy: 1%
working temperature: 0C to 50C
storage temperature: -20C to 60C
humidity: less than 70% RH (working)
less than 80% RH (storage)
max. height: 2000 m
power supply: 1x 9V battery

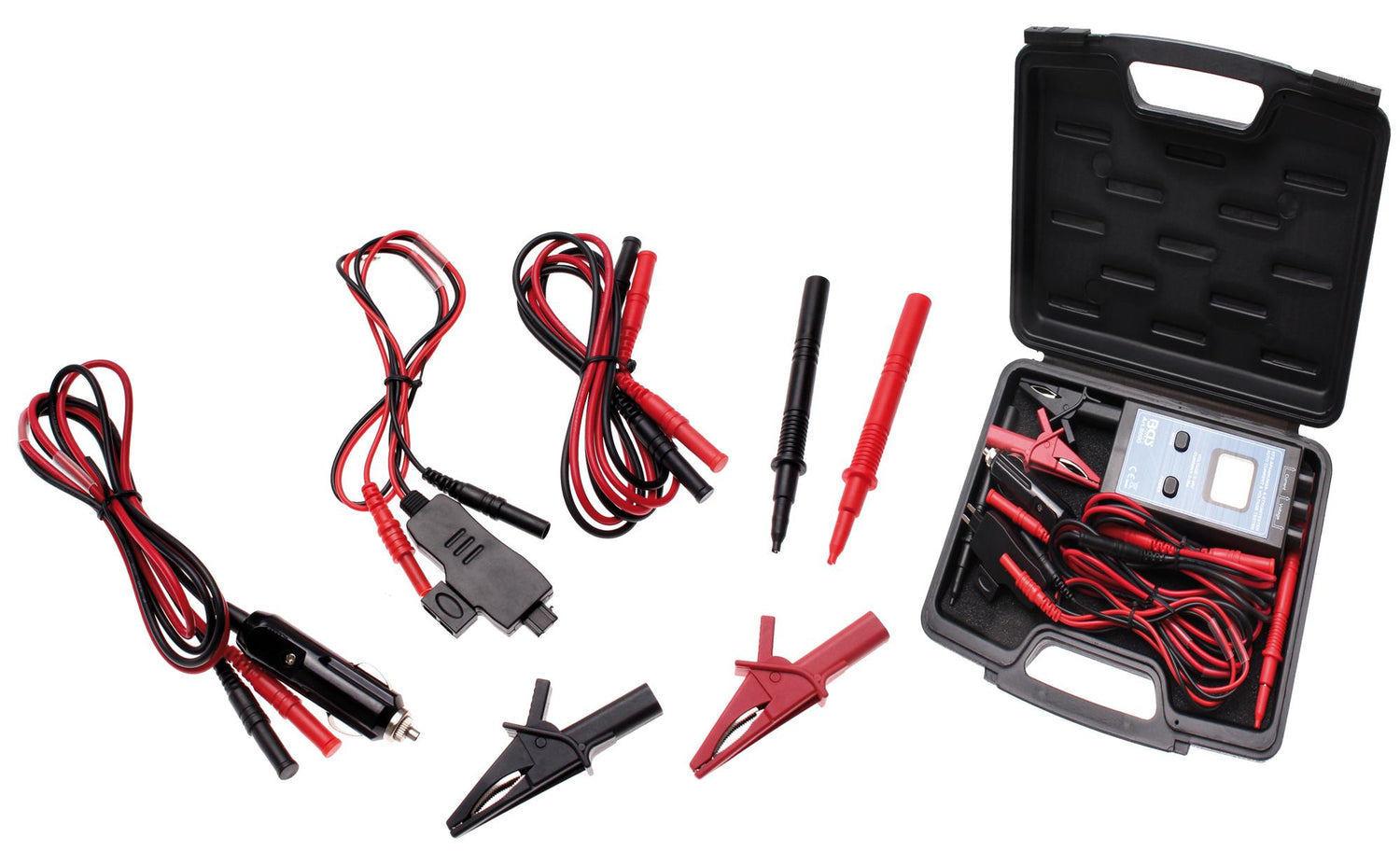

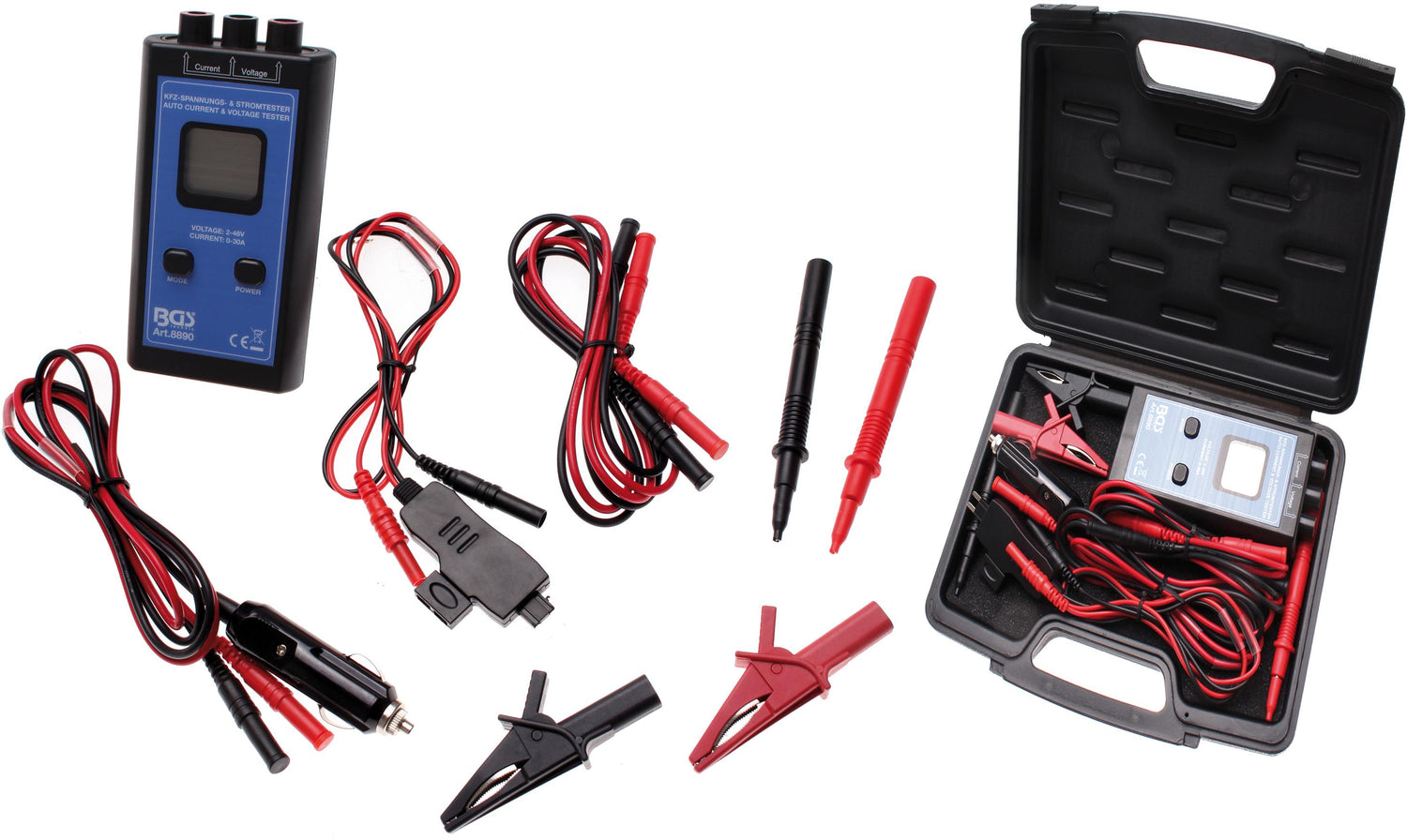

scope of delivery:

1 voltage and current meter
2 alligator clips (1 red / 1 black)
1 voltage measurement cable with "cigarette lighter plug", length 950 mm
1 current measurement cable with fuse adaptor, length 600 mm
1 measurement cable (red), insulated connectors on both sides, length 900 mm
1 measurement cable (black), insulated connectors on both sides, length 900 mm
2 test probes (red / black) with 4 mm banana plugs and non-contact caps
Technical data
Gross weight1400 g
