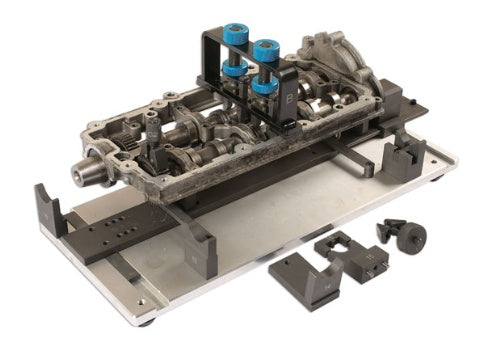

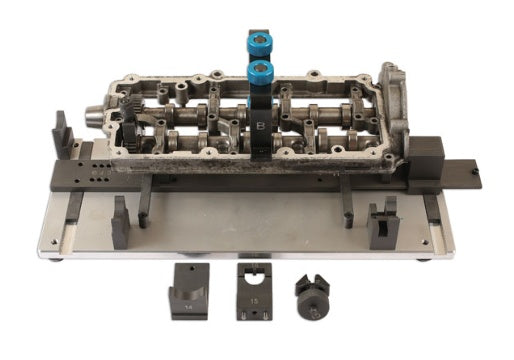

CAMSHAFT INSTALLATION TOOL SET | VAG AND PORSCHE (SK1240)

Product description

This camshaft installation kit is designed for use on VAG and Porsche Common Rail diesel engines with belt or chain drive systems. It serves 1.2, 1.6, 2.0, 2.7, 3.0, 4.0, and 4.2-liter engines, where one camshaft is driven by a belt or chain and the second camshaft is connected via interconnecting spring-loaded gears. The kit provides the necessary tools to correctly align both camshafts to each other and to the camshaft carrier during engine assembly or timing procedures.

The kit is applicable when performing camshaft installation, removal, or timing adjustments on a wide range of Audi, Porsche, Seat, Skoda, and VW vehicles equipped with the specified diesel engines. It covers a comprehensive list of engine codes, including CFWA, CAYA, CAYB, CAYC, CDCA, CKTB, CBAB, CFGB, CAGA, CAHA, BPP, BSG, CANC, CAMA, CANA, CGKA, ASB, BKS, BMK, BNG, CASA, CASB, CAPA, CARA, CATA, CCLA, CCMA, CCWA, CDUC, CDYA, CDYB, CDYC, CDTA, CDTB, CDUD, CEXA, CJGA, CJGC, CJGD, CJMA, CKVB, CKVC, CLAA, CLAB, CLZB, CMHA, CNRB, CRCA, CTB, MCT.BA, MCR.CC, M059D, M059E, ASE, BTR, BVN, CCFA, CCFC, CDSB, CKDA, and MCU.DB.

Compatible vehicles

Audi:

• A1 (2010-2015)
• A1 Sportback (2010-2015)
• A3 (2008-2013)
• A3 Cabriolet (2008-2013)
• A3 Sportback (2008-2013)
• A4 (2007-2015)
• A4 Allroad (2009-2015)
• A4 Cabriolet (2005-2009)
• A4 Quattro (2005-2015)
• A5 (2008-2015)
• A5 Cabriolet (2007-2015)
• A5 Coupe (2007-2015)
• A5 Sportback (2009-2015)
• A6 (2008-2014)
• A6 Allroad (2006-2014)
• A6 Quattro (2005-2015)
• A7 (2010-2014)
• A8 (2005-2014)
• Q3 (2011-2015)
• Q5 (2008-2015)
• Q7 (2007-2015)
• TT (2008-2014)

Porsche:

• Cayenne (2009-2015)
• Macan (2014-2015)
• Panamera (2013-2014)

Seat:

• Alhambra (2010-2015)
• Altea/Altea XL (2009-2015)
• Exeo (2009-2013)
• Ibiza (2009-2015)
• Leon (2009-2015)

Skoda:

• Fabia II (2009-2015)
• Octavia II (2008-2015)
• Praktik (2010-2012)
• Praktik Greenline (2010-2015)
• Rapid (2012-2015)
• Roomster (2010-2015)
• Superb II (2008-2015)
• Superb II Greenline (2010-2015)
• Yeti (2009-2013)
• Yeti Greenline (2010-2013)

VW:

• Beetle (2011-2015)
• Beetle CC (2012-2015)
• Caddy/Caddy Maxi (2009-2015)
• Eos (2008-2015)
• Golf V Estate (2007-2011)
• Golf VI (2008-2013)
• Golf VI Bluemotion (2009-2013)
• Golf VI Cabriolet (2011-2015)
• Golf VI Estate (2008-2015)
• Golf VII (2013-2015)
• Golf Plus (2008-2014)
• Jetta (2008-2015)
• Passat (2008-2015)
• Passat Allroad (2010-2015)
• Passat Alltrack (2012-2015)
• Passat CC (2009-2015)
• Passat CC Bluemotion (2009-2015)
• Phaeton (2007-2014)
• Polo (2009-2014)
• Scirocco (2008-2014)
• Sharan (2010-2015)
• Tiguan (2008-2015)
• Touran (2010-2015)
• Touran Bluemotion (2010-2015)
• Toureg (2008-2015)
• Toureg Bluemotion (2008-2015)
• Transporter T5 (2009-2015)
• Transporter T5 Bluemotion (2011-2015)

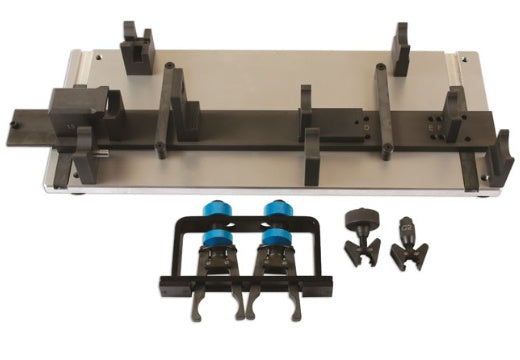

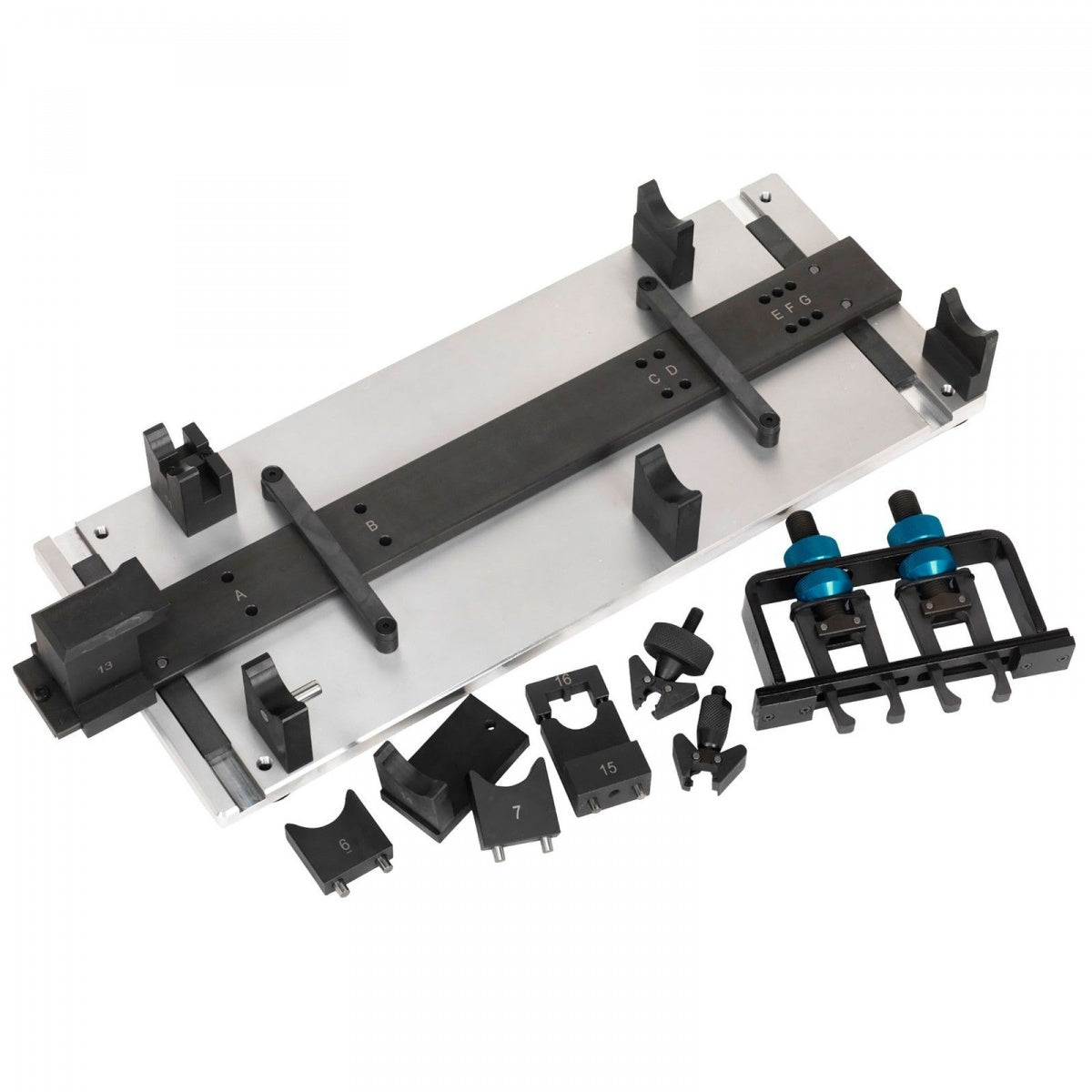

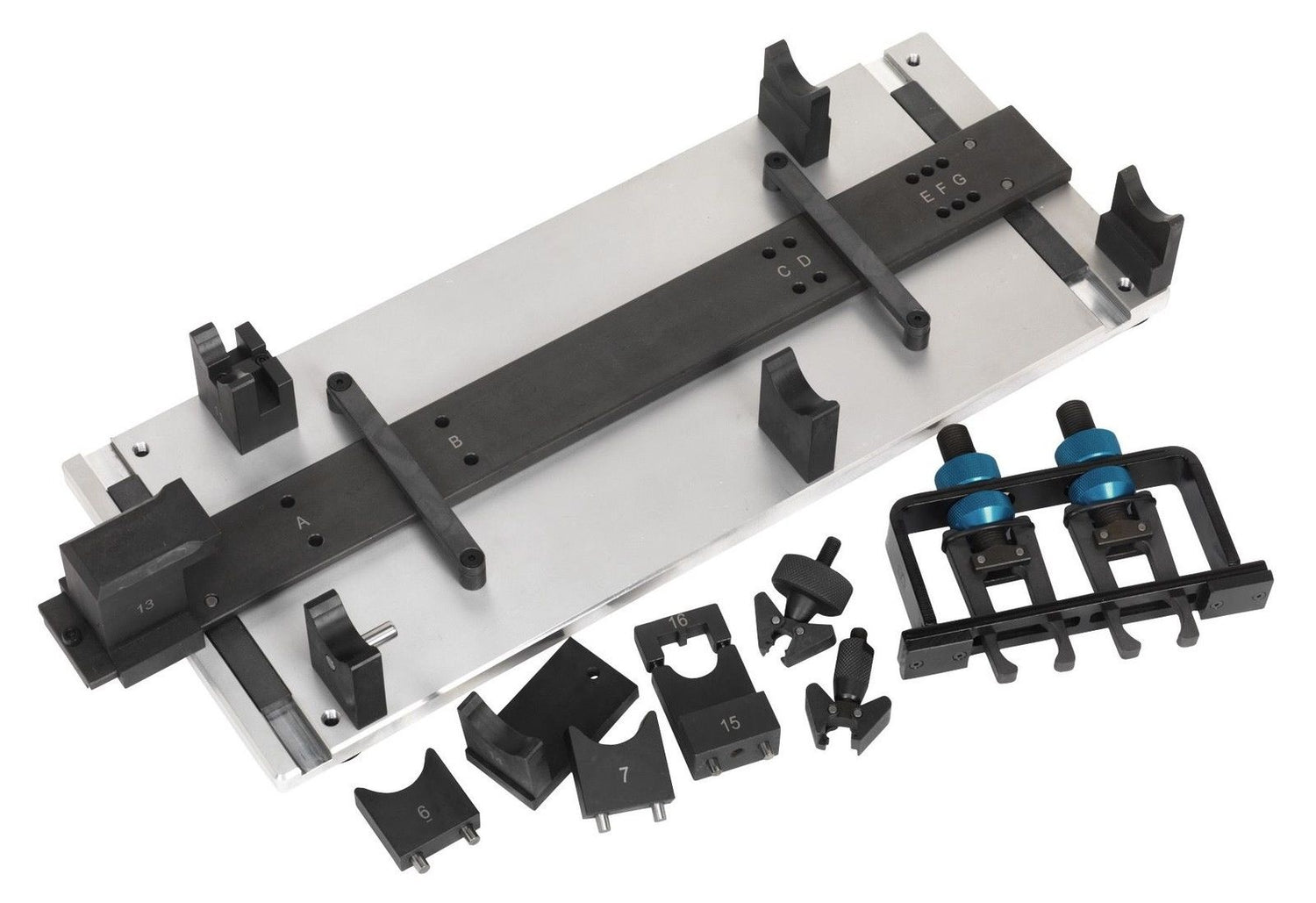

Kit contents

• Camshaft alignment tool (OEM T40094)
• Camshaft alignment tool (OEM T40094/1)
• Camshaft alignment tool (OEM T40094/2)
• Camshaft alignment tool (OEM T40094/9)
• Camshaft alignment tool (OEM T40094/10)
• Camshaft alignment tool (OEM T40094/11)
• Camshaft alignment tool (OEM T40095)
• Camshaft alignment tool (OEM T40096/1)

Technical specifications

OEM reference numbers:

• VAG: T40094, T40094/1, T40094/2, T40094/9, T40094/10, T40094/11, T40095, T40096/1
