CABLE REEL PVC 4 SOCKET 15M (72570)

Brand
Vorel
Entity responsible for this product in the EU
TOYA S.A.More
Series
GRF
Length
15 m
Extension cord type
drum
Max. current
16 A
Voltage
230 V a.c.
Frequency
50 Hz
Socket type
E
Plug type
E & F
Earthing
yes
Socket quantity
4
Wire insulation type
H05VV-F
Wire section area
3Gx1.0 mm2
Reel material
PVC
Color
black
Protection grade
IP20
Max. load capacity (completely coiled wire)
900 W
Max. load (cable fully unrolled)
2300 W
Switch
no
Stand / tripod
no
Weight
2.1 kg
Symbol
72570

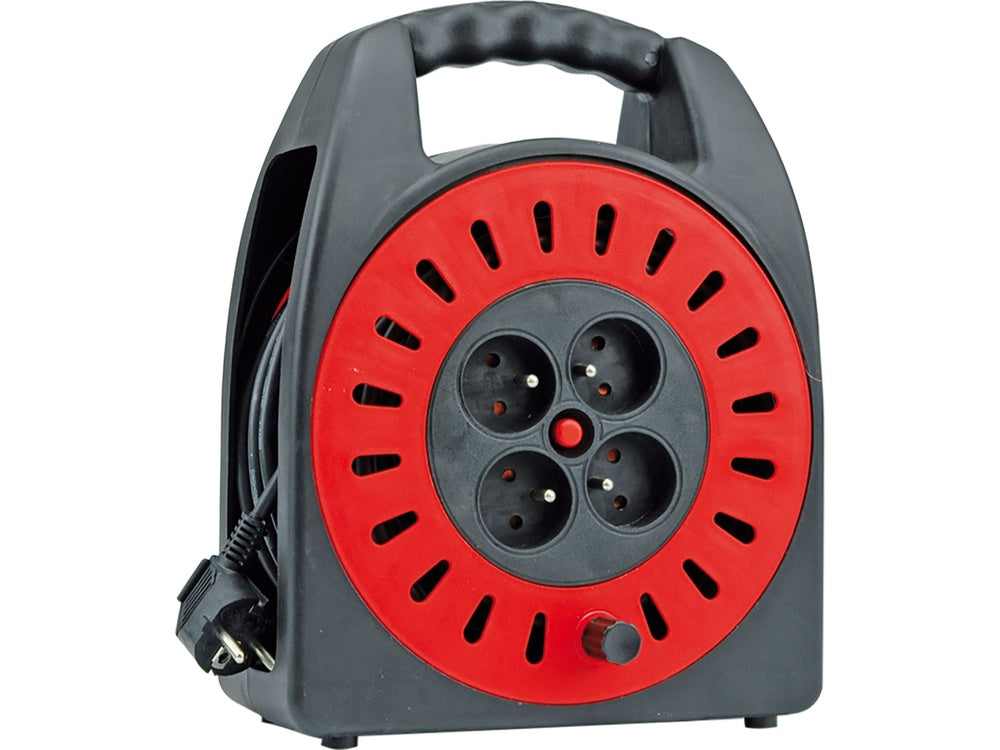

Vorel 72570 brand drum extension cord with a length of 15 meters with 4 outlets, thermal protection and child protection. The plastic housing combines the functions of the stand and the drum. A handle located at the edge of the drum speeds up retraction, and the closed design prevents the cord from unwinding on its own during transport.

Voltage and frequency rating: ~230V/50Hz
Maximum load: 900 W - coiled cable, 2300 W - uncoiled cable
copper three-conductor cable of 1 mm2, length 15 m
./li>
Polyvinyl chloride insulation is highly resistant to mechanical damage and most solvents, stiffens at low temperatures<
thermal protection will cut off the power supply at a cable temperature of 56C +-5C
child protection in the form of plastic flaps and a special mechanism makes it difficult to access the socket openings
Designation H05VV-F denotes a tire cable made according to the harmonized standard (H), for a rated voltage of 300/500V (05)<, with polyvinyl chloride insulation (V), with polyvinyl chloride sheath (V) and flexible multi-stranded conductors (-F).

Technical data:

unit: pcs
color: black
number of outlets: 4
extension cord type: reel
grounding: yes
length [m]: 15
conductor cross-section: 1
number of conductors [pcs.]: 3
insulation type: VV-F
