CABINET SANDBLASTER 90L (YT-55840)

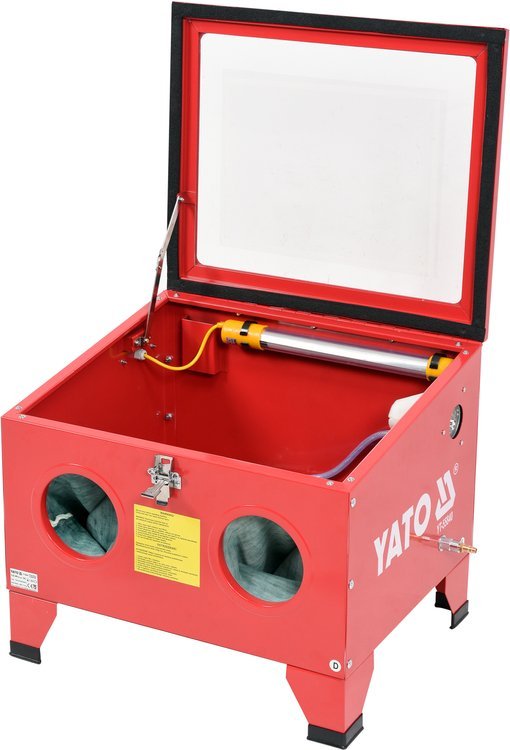

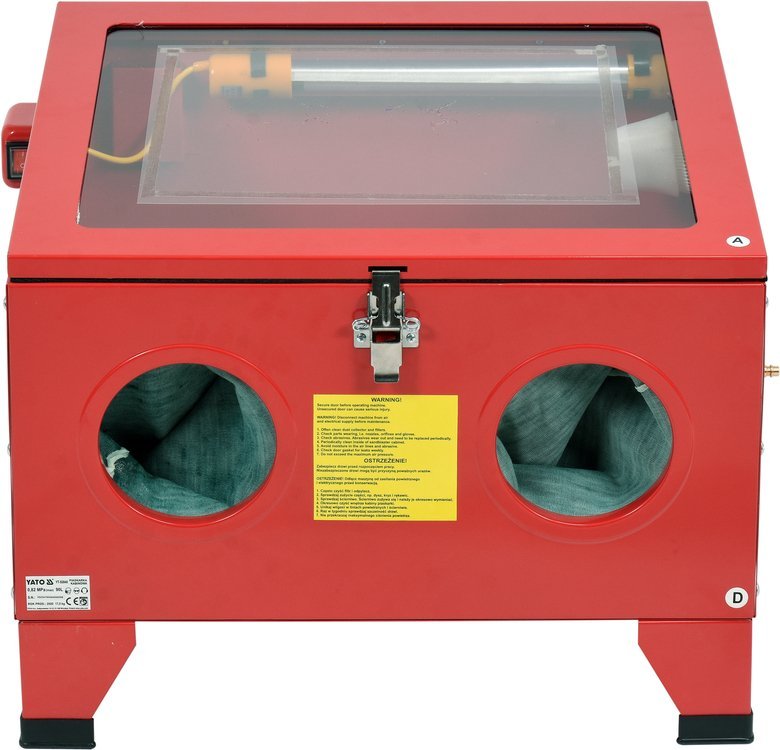

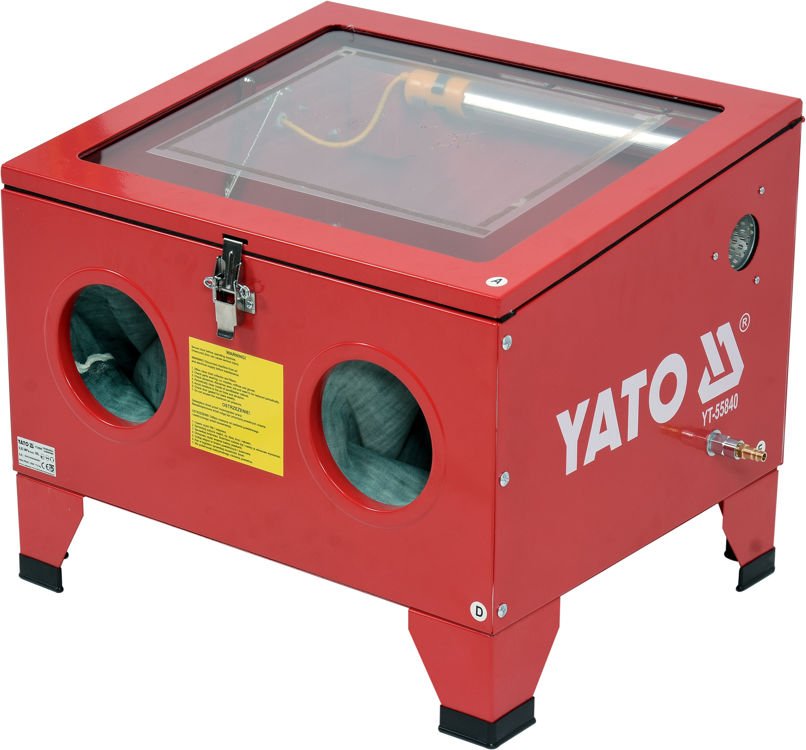

The YATO YT-55840 sandblasting cabinet is an effective PRO-class device made of sheet steel, designed for quick and convenient removal of rust, paint, and dirt using a circulating abrasive. Standard connection. The device has a large 485x390 mm window with a replaceable protective film. Strong grilles. The workspace is brightly illuminated by a 12V fluorescent lamp. The device has a drain opening for quick abrasive material replacement. Integrated PVC rubber gloves. Non-slip, rubber-coated feet.

Rated power [W]: 8

Operating pressure [MPa]: 0.27-0.82

Air consumption [l/min]: 424-707

External dimensions [mm]: 585x485x494

Internal dimensions [mm]: 580x480x350

Container volume [l]: 90

The YATO YT-55840 sandblasting cabinet complies with the following European standards: EN ISO 12100:2010, EN ISO 13849-1:2015, EN 60204-1:2006 + A1:2009, EN 1248:2001 + A1:2009, EN 61000-6-1:2007, EN 61000-6-3:2007 + A1:2011, EN 61000-3-2:2014 and EN 61000-3-3:2013 and is manufactured in accordance with the requirements of European Union directives: 2006/42/EC Machinery and Safety Elements, 2014/30/EU Electromagnetic Compatibility (EMC) Directive, 2011/65/EU Restriction of the Use of Certain Hazardous Substances, 2014/35/EU Low Voltage Equipment.

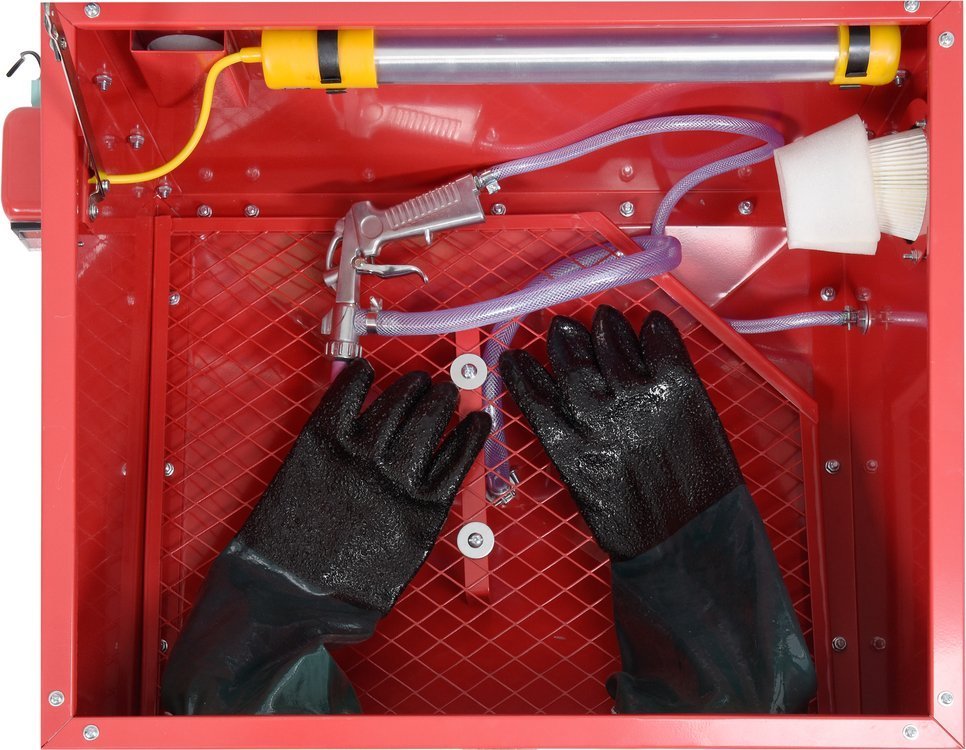

The YATO YT-55840 sandblasting cabinet comes with a sandblasting gun with 4 interchangeable ceramic nozzles of 4, 5, 6, and 7mm, an abrasive material suction hose, an air connection hose with an adapter, 4 interchangeable films for window protection, integrated gloves, and Teflon tape for sealing.

Model year: 2020

Total weight [kg]: 17.500

YATO YT-55840 user manual PDF
