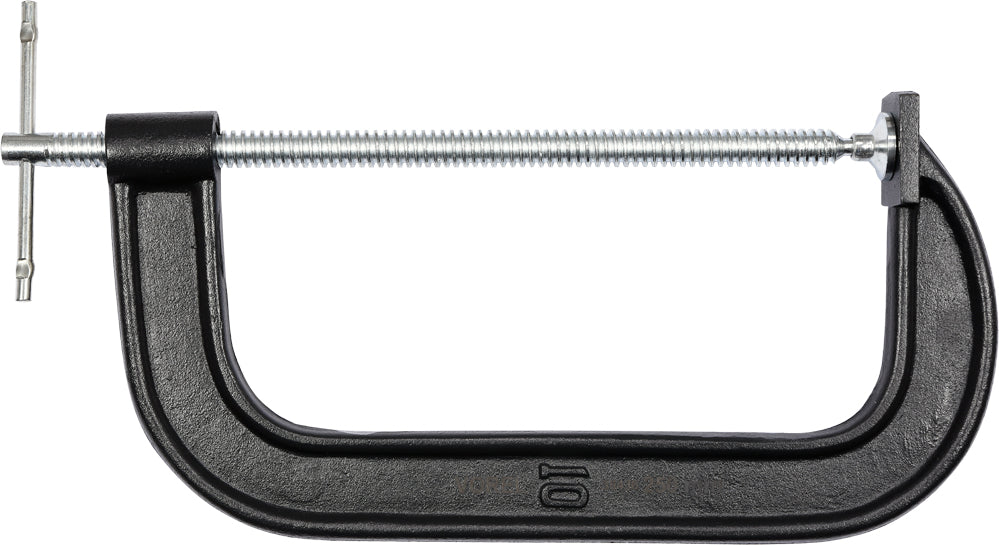

C CLAMP 10" (38436)

Index number 38436
EAN 5906083005978
Manufacturer Vorel
Gross weight (kg) 2.3330
Size [mm] 250
C type clamp
Size [inch] 10

Product description
Sturdy clamps made of high quality malleable cast iron. They have a screw with a special threaded screw, made of A3 steel with galvanized finish.
Body with high stiffness, resistant to twisting and bending. Corrosion-resistant surface with a layer of powder-coated lacquer. The clamping screw has a movable safety pin against falling out. It allows very tightening of the material to be tightened. The specific design also ensures high vibration resistance, which causes clamping loosening.
A large metal platen plate, which is pivotally mounted on the ball joint, facilitates the precise adjustment of the compression to the crimped material.
The C-type screw is one of the most crimping clamps, so it is used in
Extreme building conditions. When installing heavy steel structures, carpentry and roofing work, often used in welding work.
Destination / Application
For effective, very strong crimping of various materials.
Technical data
Index Number 38436
EAN 5906083005978
Brand Vorel
PCS unit
Gross Weight (kg) 2.3330
Master Carton MC 6
Pal 240
Size [mm] 250
Type of compression C
Size [cal] 10

10", LIGHT DUTY, BODY MATERIAL: MALLEABLE CAST IRON, POWDER COATING, SCREW MADE OF A3 STEEL, ZINC PLATED, FORCE PRESSURE (KG): 420
