BRAKE PAD THICKNESS GAUGE (GE1703)

MEASURES BRAKE LINING FROM 0 TO
1/2" IN 1/64" GRADUATIONS.

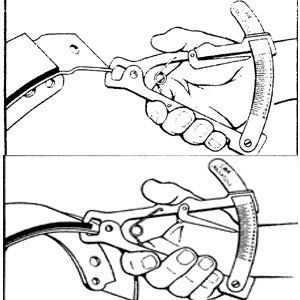

APPLY JAWS TO BRAKE SHOE ONLY AS
SHOWN BELOW. KEEPING JAWS ON SHOE,
MOVE THE INDICATOR ARROW TO "0",
THIS WILL AUTOMATICALLY SUBTRACT
THE SHOE THICKNESS FROM THE TOTAL
MEASUREMENT.
APPLY JAWS TO SHOE AND LINING AS
SHOWN BELOW. THE ARROW WILL INDICATE
THE AMOUNT OF LINING REMAINING.
