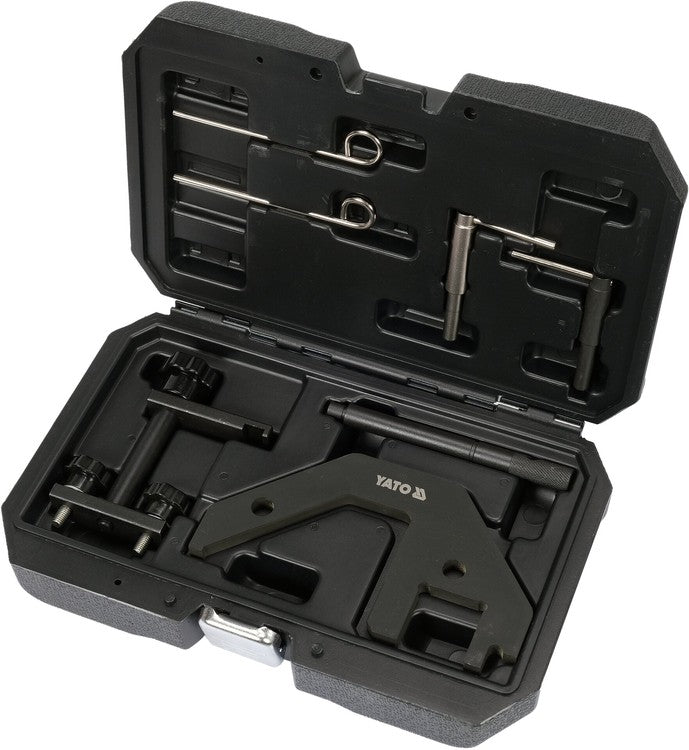

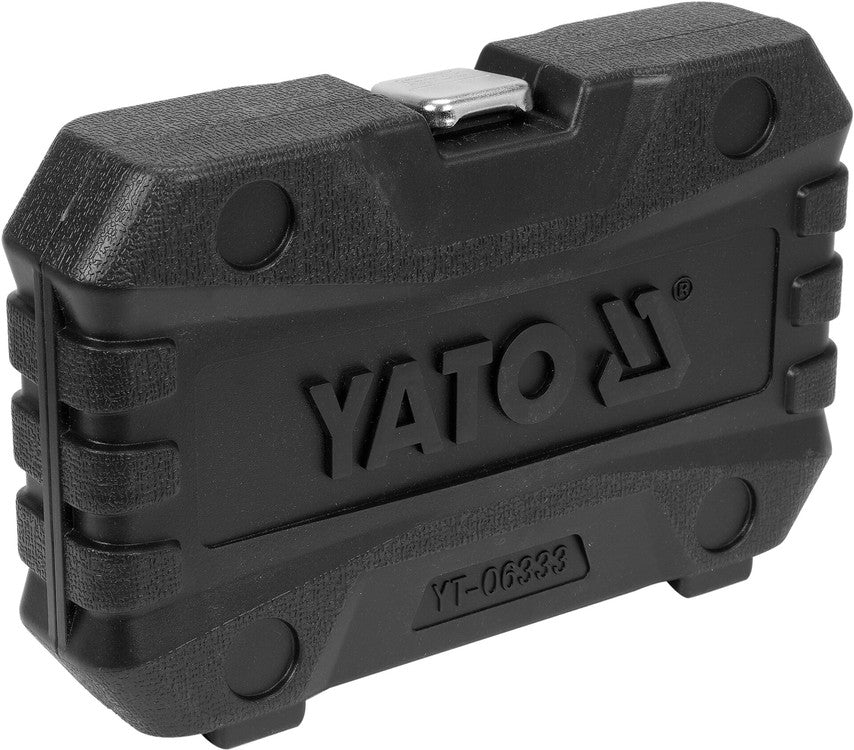

BMW CAMSHAFT ALIGNMENT TOOL (YT-06333)

Product description

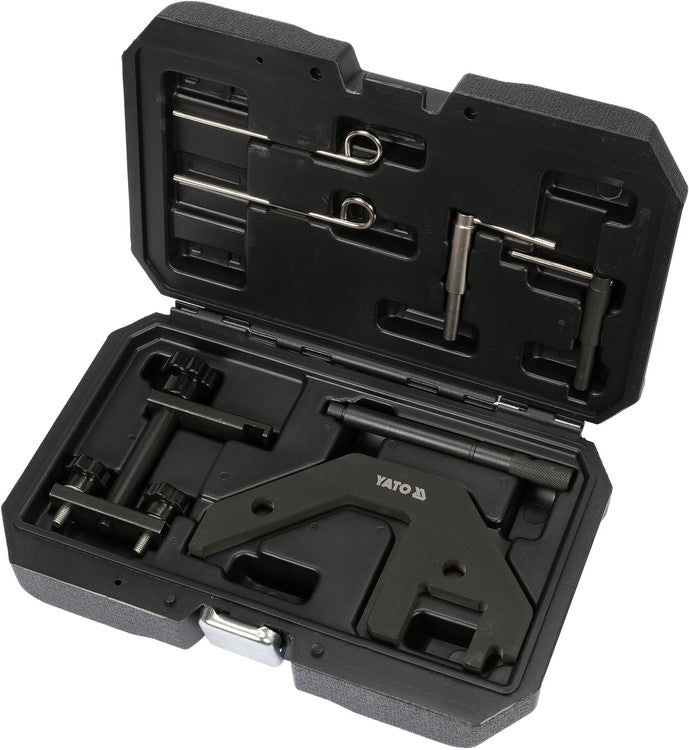

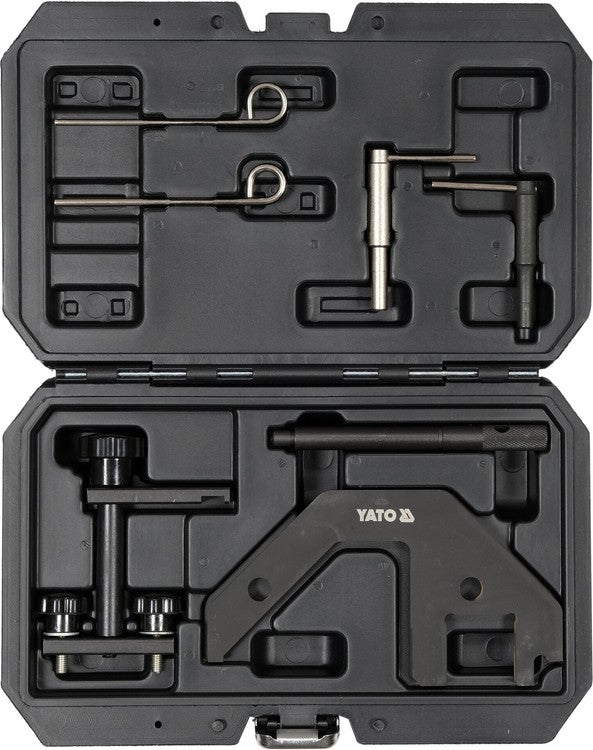

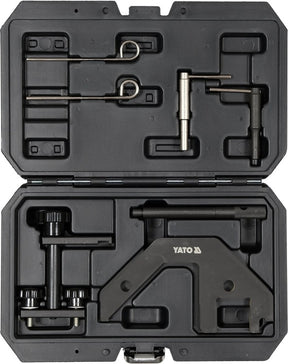

This 7-piece timing locking tool set is designed for servicing the timing systems of BMW diesel engines. The kit is used to lock and align the camshaft, crankshaft, and other critical components during timing belt or chain replacement, engine repairs, and maintenance procedures. It is suitable for a range of BMW diesel engines with engine codes M47, M47TU, M47T2, M57, M57TU, and M57TU2.

The set covers a wide selection of BMW diesel models produced between 1997 and 2010, including compact, sedan, touring, coupe, and SUV variants. It provides the necessary tools to ensure correct positioning of engine components, helping to prevent misalignment during reassembly.

Compatible vehicles

• 1 Series (E87): 118d (03-07), 120d (03-07)
• 3 Series (E46, E90, E91): 318d/td (00-08), 320d/crd (97-08), 325d (06-10), 330d/xd/crd (98-08)
• 5 Series (E39, E60, E61): 520d (99-10), 525d/xd (99-10), 530d/xd (98-10), 535d (04-10)
• 6 Series (E63, E64): 635d (04-10)
• 7 Series (E38, E65, E66): 730d (03-10)
• X3 (E83): 2.0d (03-07), 3.0d (03-10)
• X5 (E53, E70): 3.0d (00-10)

Kit contents

• 7 timing locking tools (OEM references not specified in source)

Technical specifications

• Material: carbon steel
• Number of pieces: 7

OEM table

• BMW: M47, M47TU, M47T2, M57, M57TU, M57TU2
