BEARING PRESS SET | 27 PCS. (SK7007)

The universal set SK7007 is a PRO-class tool kit designed for quick and efficient extraction and pressing of silent blocks, hydraulic and ball bearings, bearing bushes, rubber bushes, shaft seals, and other components without damaging them.

The pressing plates and sleeves can be used with conventional workshop presses. The tools are supplied in a convenient plastic case.

Suitable for many car models, light and commercial vehicles, and trucks.

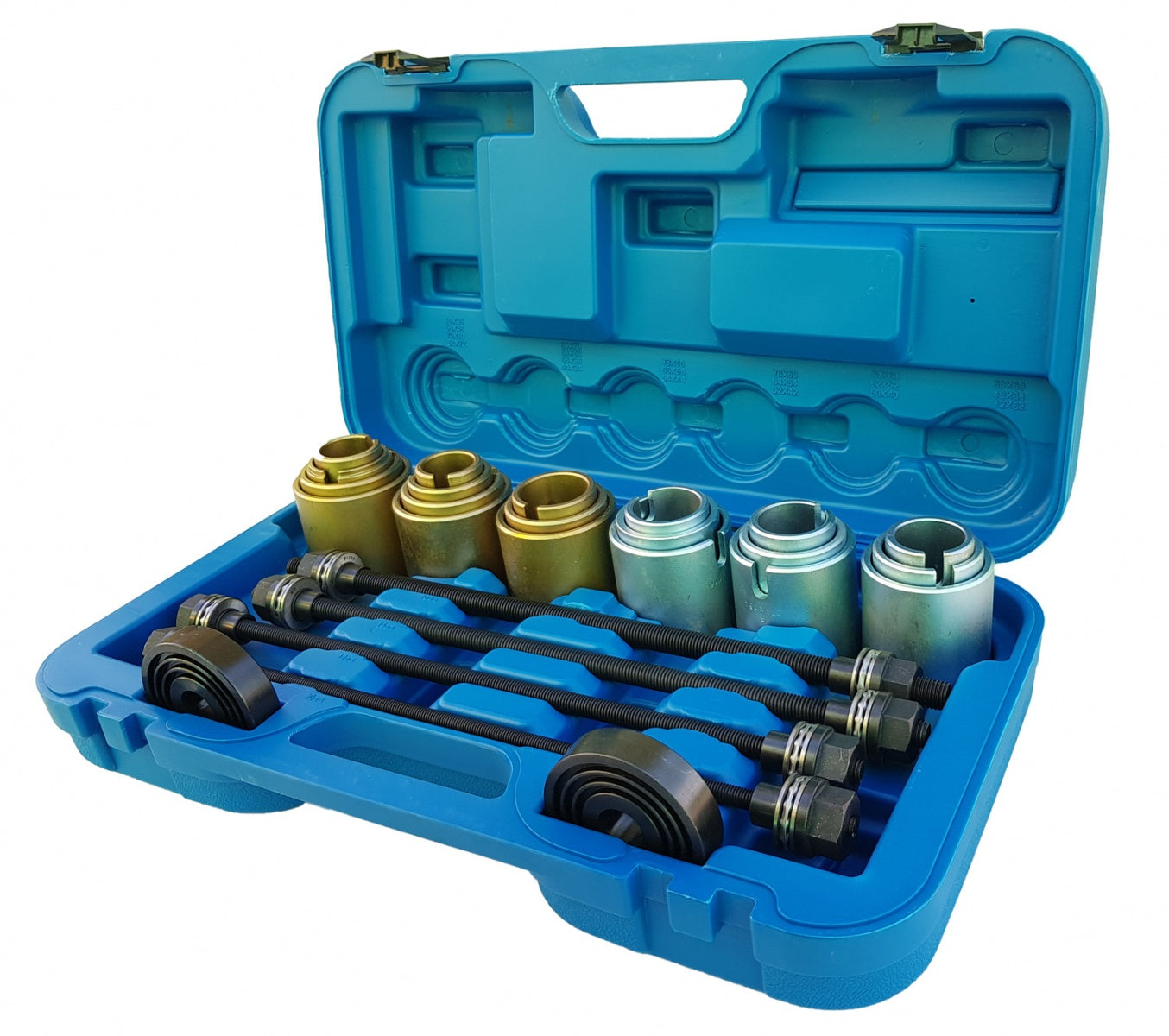

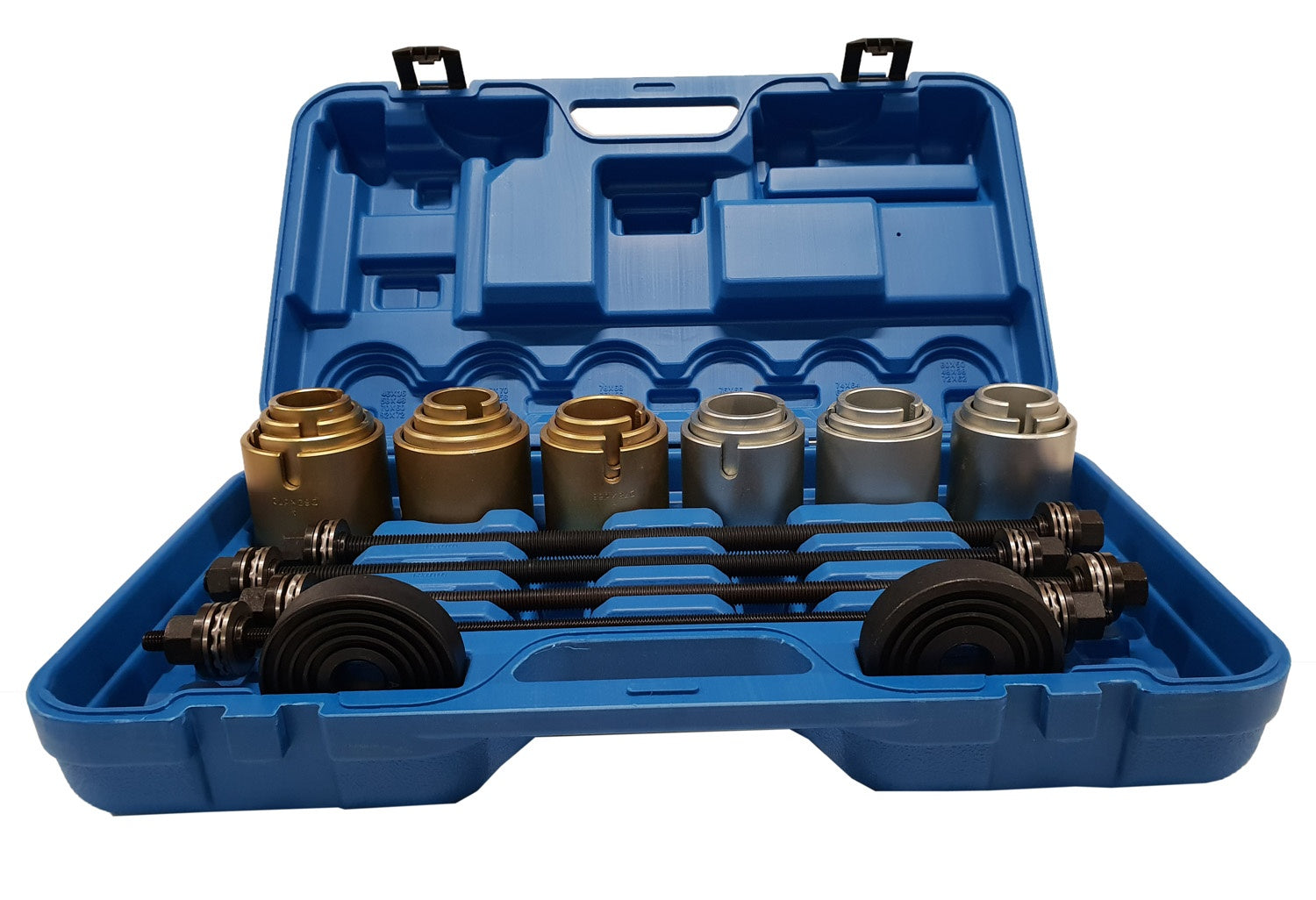

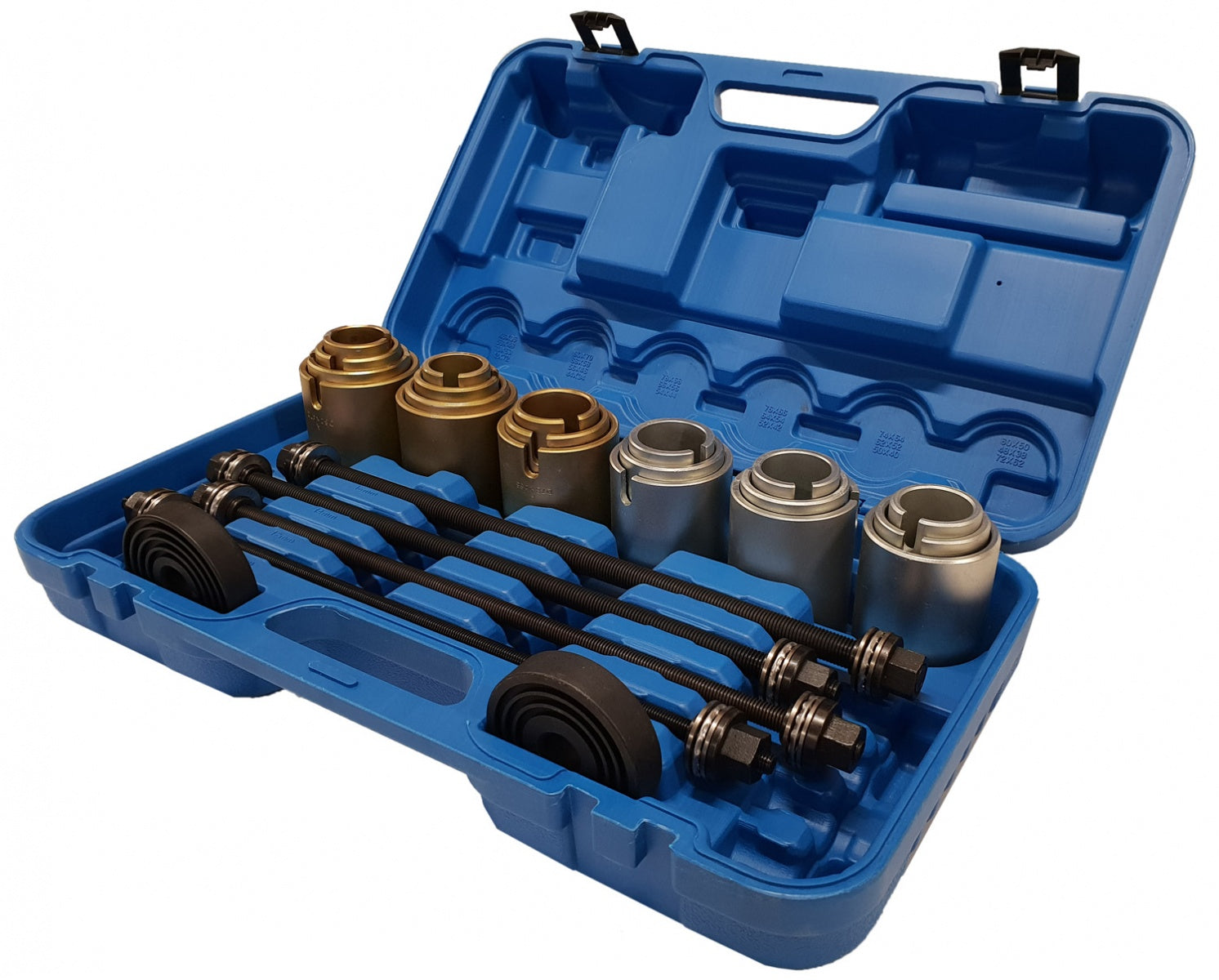

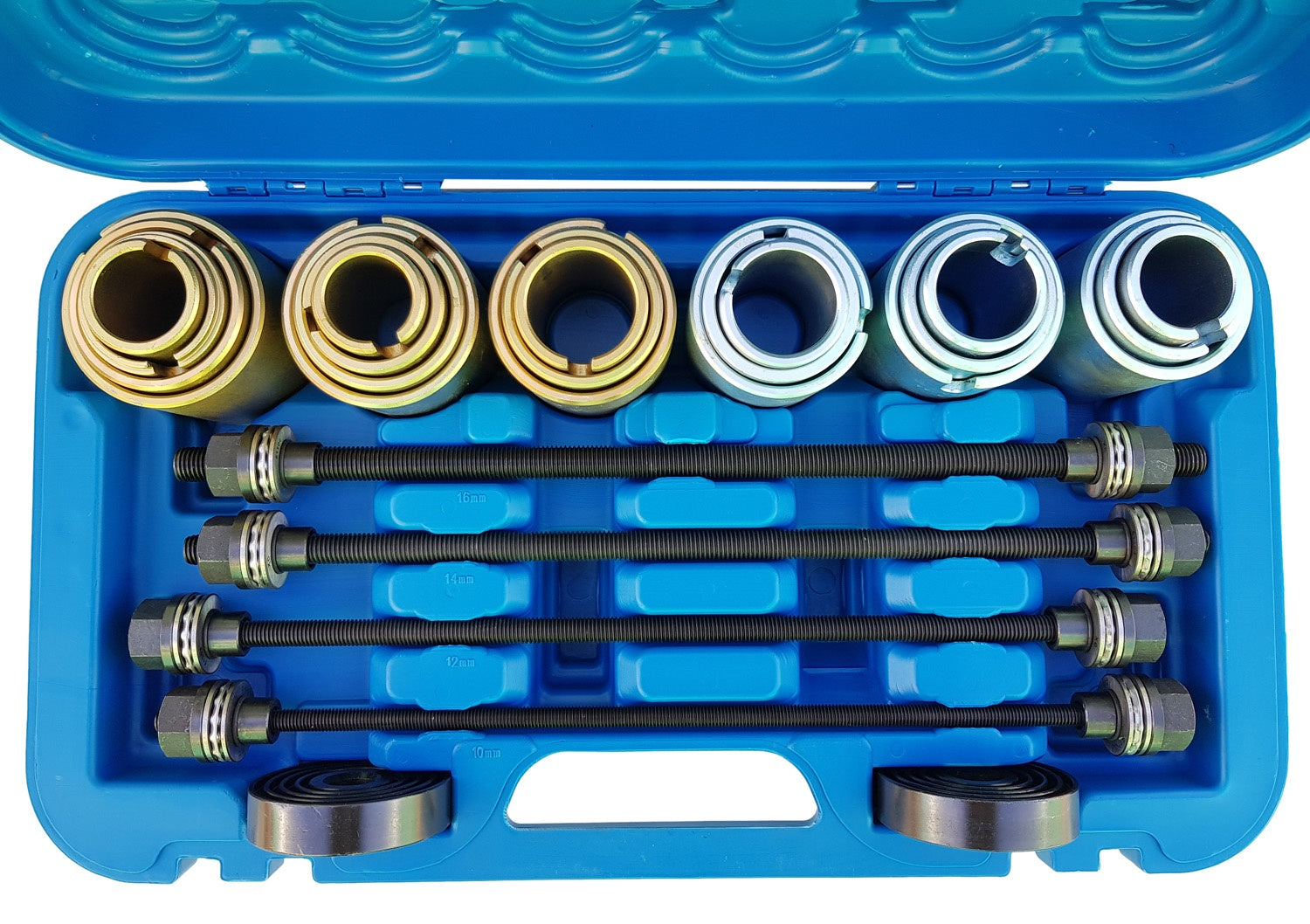

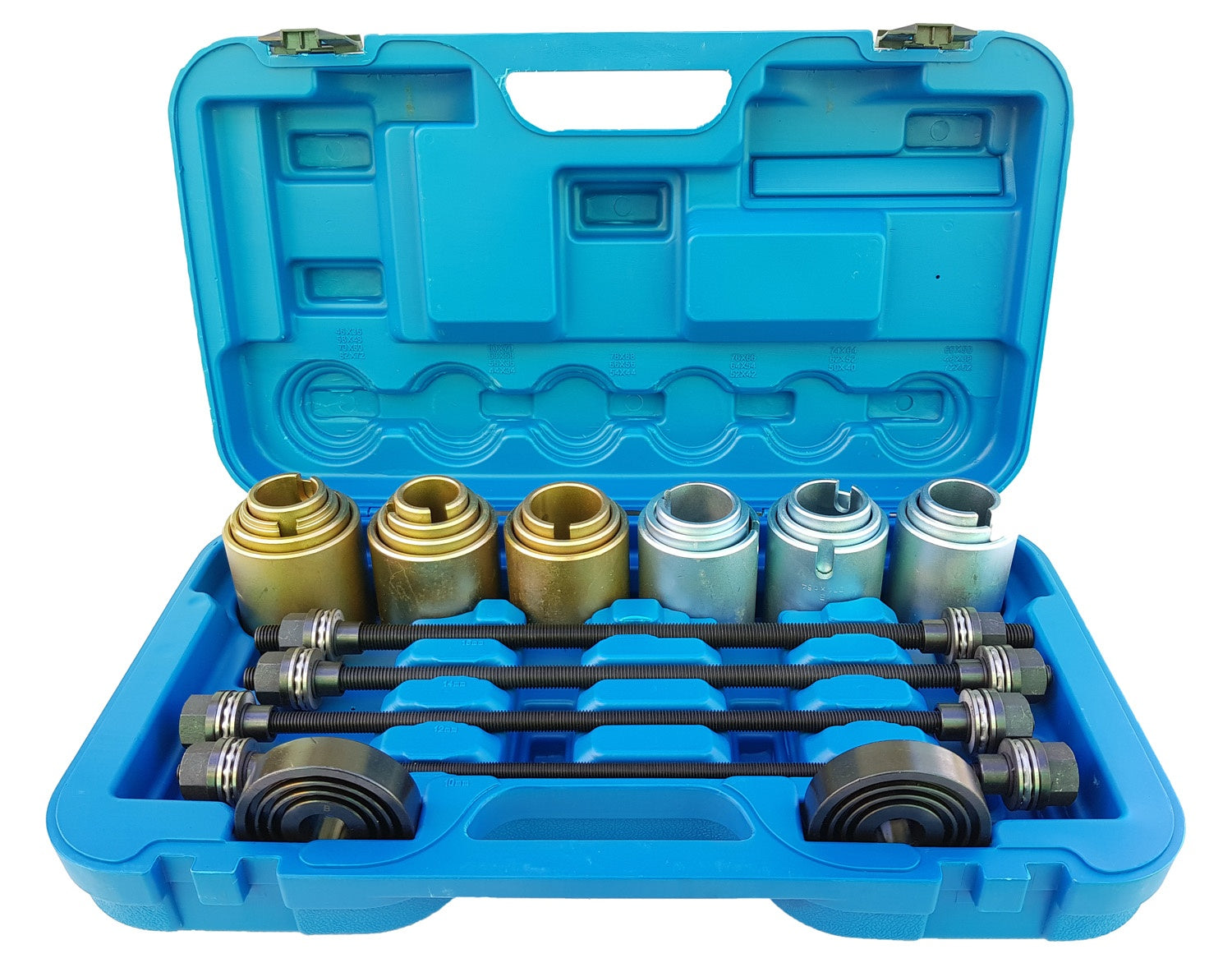

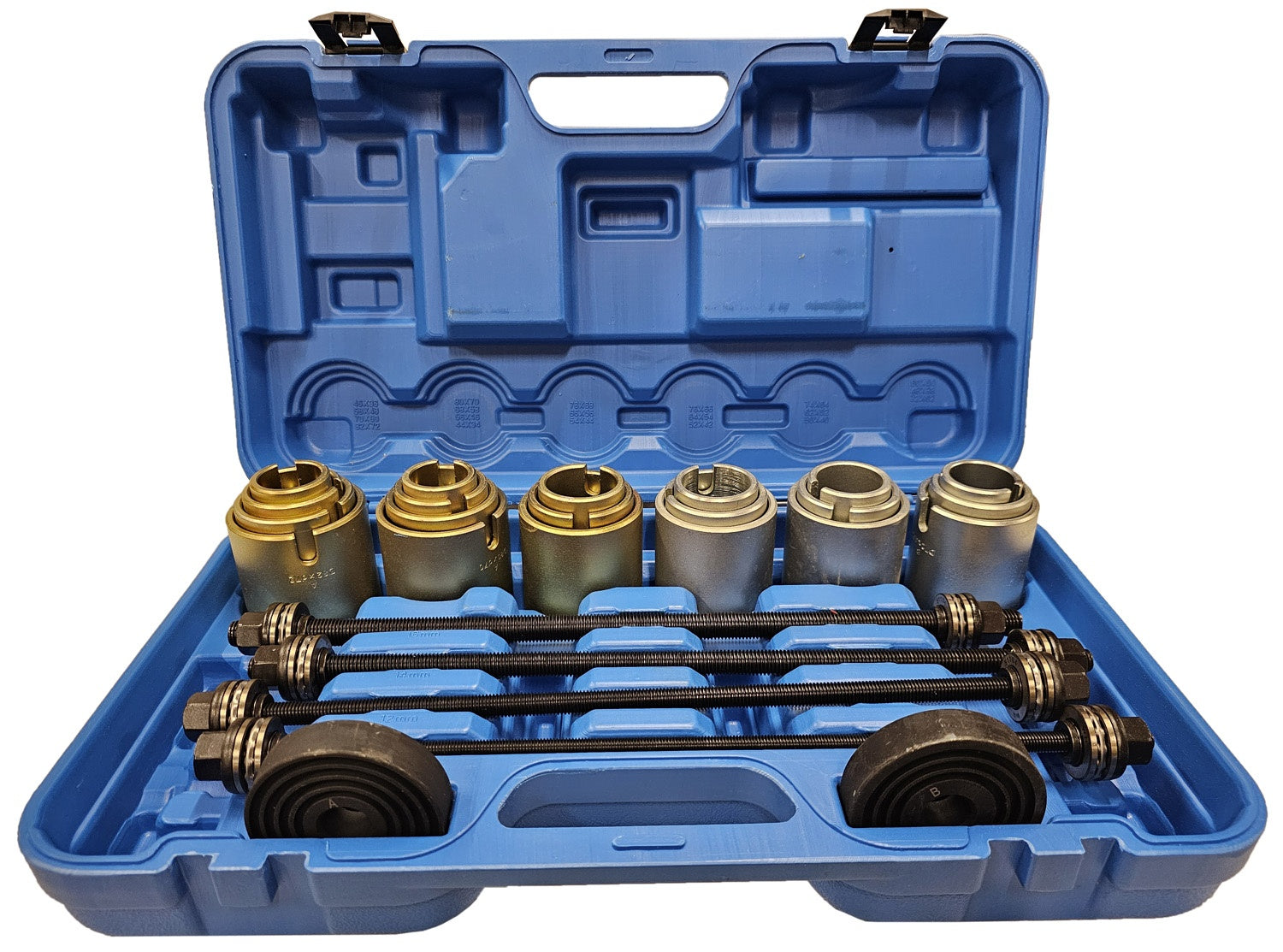

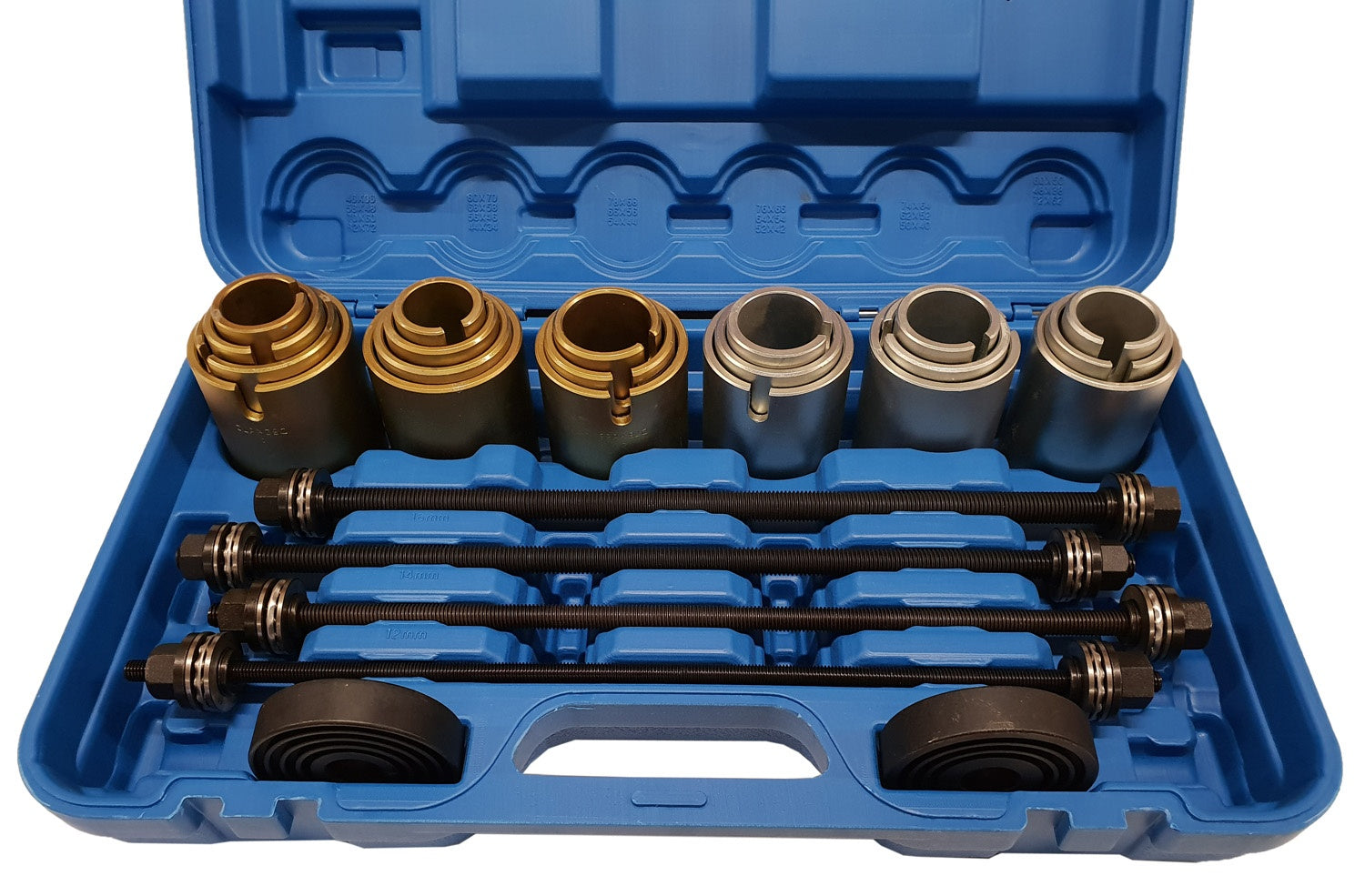

Kit contents and technical specifications:

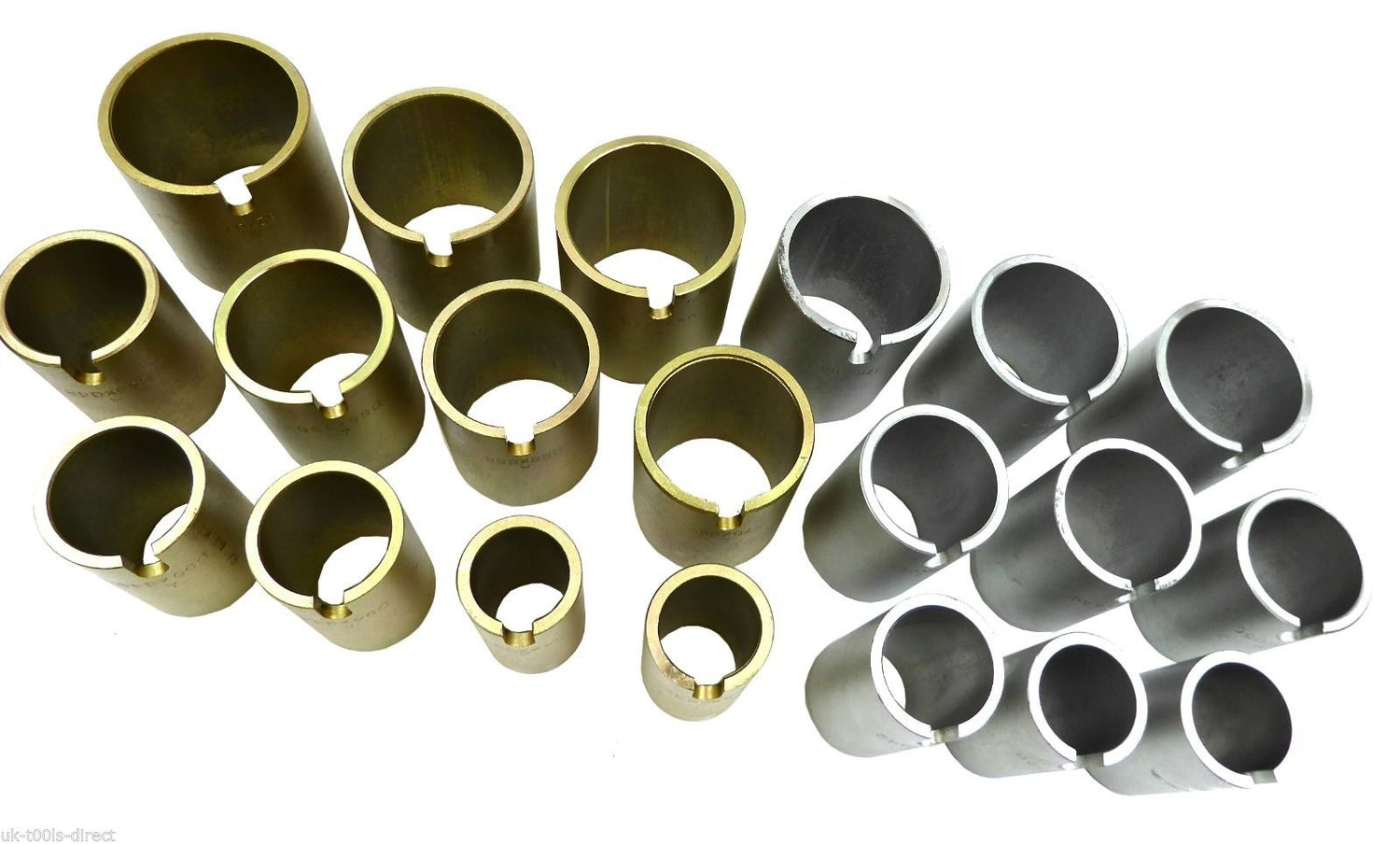

20 x pressing sleeves:

- inner diameter [Ø, mm]: 34 | 36 | 38 | 40 | 42 | 44 | 46 | 48 | 50 | 52 | 54 | 56 | 58 | 60 | 62 | 64 | 66 | 68 | 70 | 72

- outer diameter [Ø, mm]: 44 | 46 | 48 | 50 | 52 | 54 | 56 | 58 | 60 | 62 | 64 | 66 | 68 | 70 | 72 | 74 | 76 | 78 | 80 | 82

sleeve wall thickness [mm]: 5

sleeve height [mm]: 94

4 x extraction spindles with nuts [mm]: M10 x 2.0 | M12 x 2.0 | M14 x 2.5 | M16 x 2.5 | L=450

2 x pressing plates [Ø, mm]: 83 x 20

1 x tool case

total weight [kg]: 19.410

SK7007 User Manual PDF
