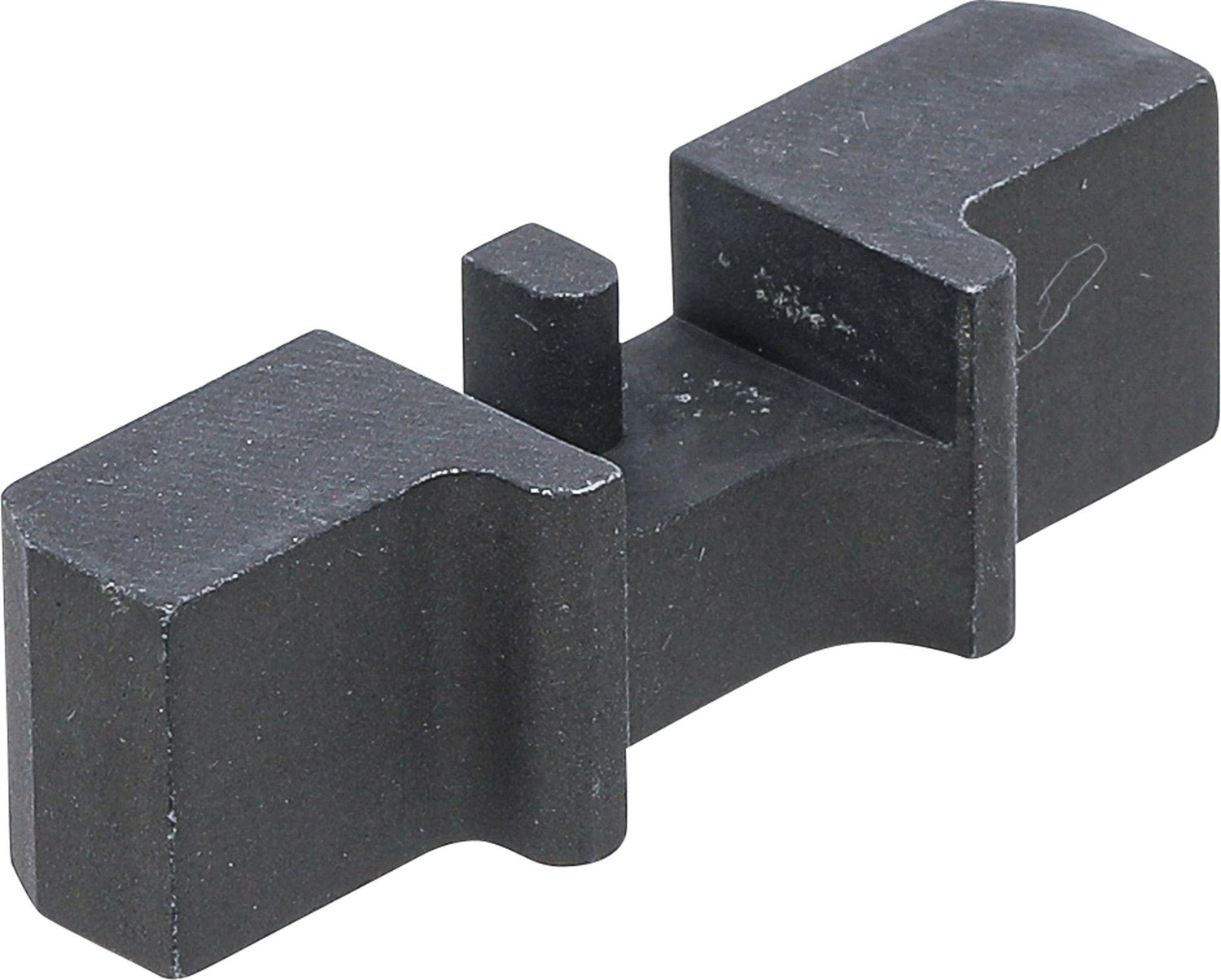

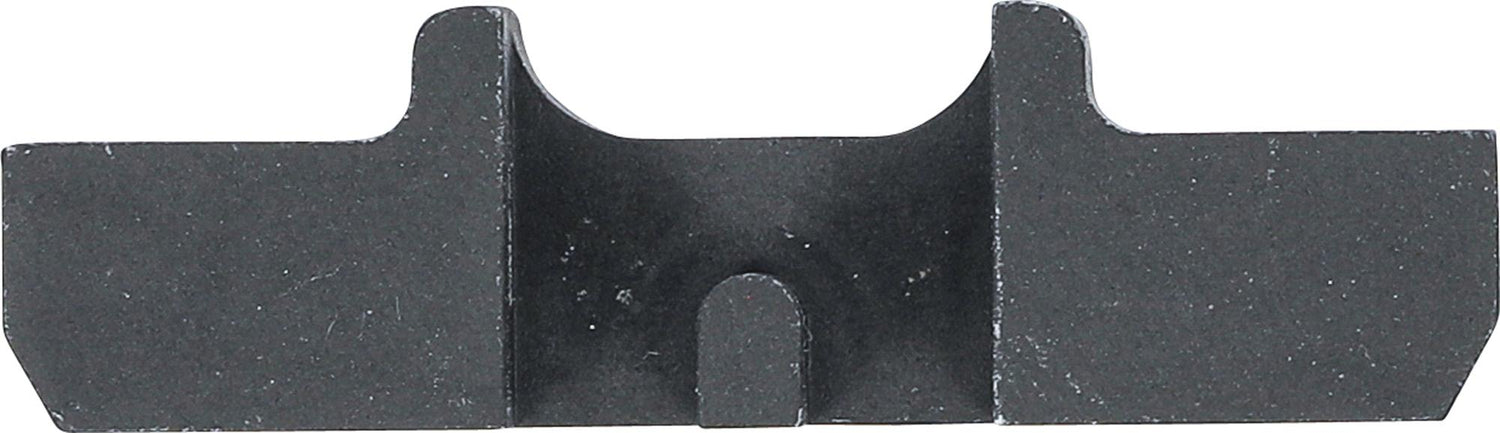

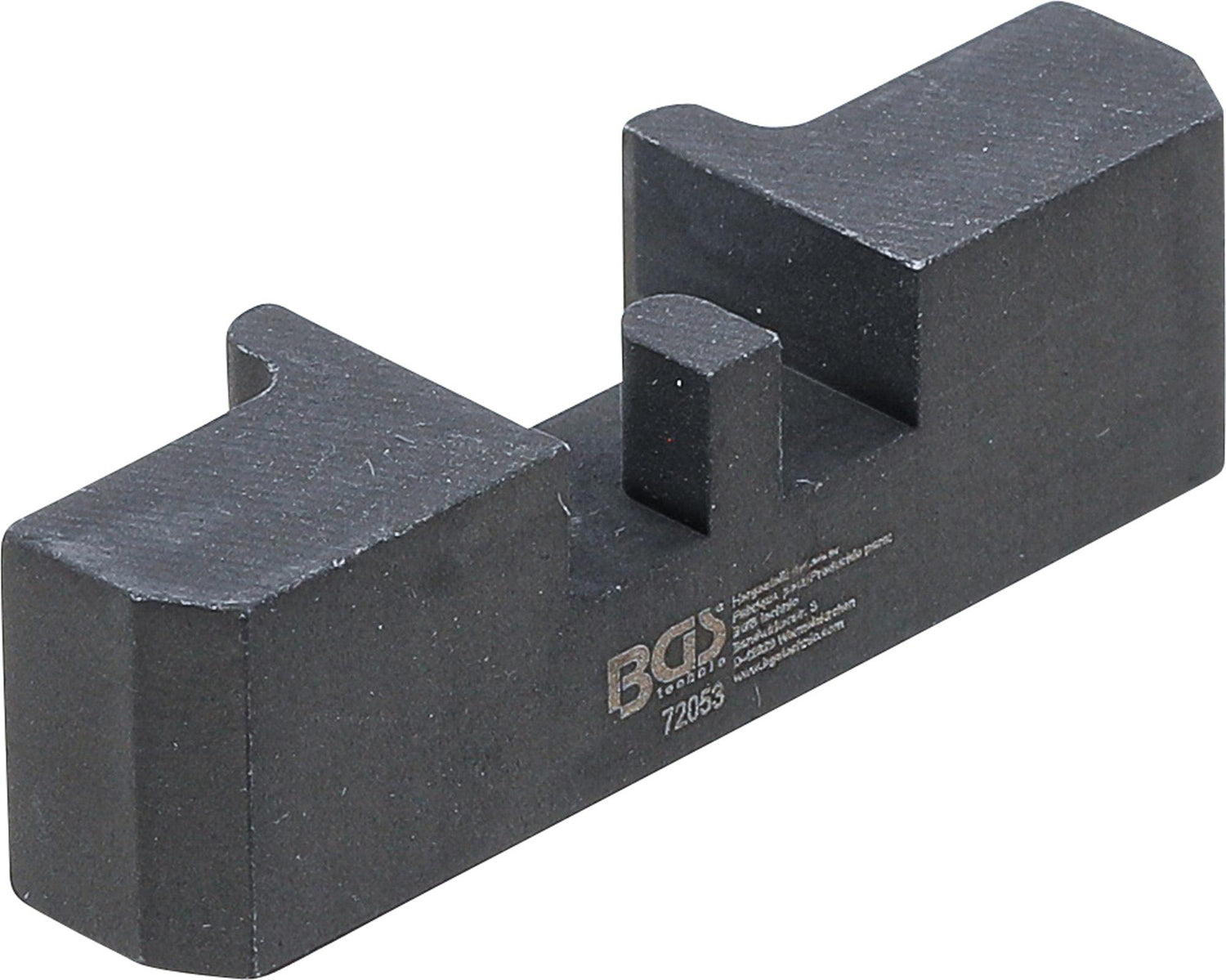

BALANCER SHAFT ALIGNMENT TOOL | FOR VAG (72053)

Product description

This balancer shaft alignment tool is designed for locking the balancer shaft during the disassembly and assembly of the balancer shaft module. It is specifically intended for use on select VAG group engines, providing secure positioning of the balancer shaft to facilitate accurate and safe maintenance procedures. The tool is suitable for both 1.6L and 2.0L diesel engines, covering a range of engine codes as used in various Audi, Seat, and Volkswagen models from 2007 onwards.

The tool is used when working on the balancer shaft module, a component critical to engine smoothness and vibration reduction. By locking the balancer shaft in place, it allows for precise alignment during service operations, minimizing the risk of component misalignment or damage.

Compatible vehicles

• Audi
• A3 1.6L (2009-) — engine codes: CAYB, CAYC
• A3, A4, A6, Q5 2.0L (2007-) — engine codes: CBAB, CBBB, CBAA, CFFB, CAGA, CAHA, CAGB, CAHB, CAGC
• Seat
• Exeo 2.0L (2009-) — engine codes: CAGA, CAHA
• Volkswagen
• Golf, Golf Plus 1.6L (2009-) — engine codes: CAYB, CAYC
• Tiguan, Passat, Eos, Golf, Golf Plus 2.0L (2008-) — engine codes: FCA, CAAA, CAAB, CAAC, CCHA, CAVA, CBAB, CBDA, CBDD, CBBB, CBAA, CBAC, CBDA, CBDC

Kit contents

• Balancer shaft alignment tool (OEM T10255)

Technical specifications

• Drive profile: Internal square
• Drive profile size, metric: 6.3 mm
• Drive profile size, inch: 1/4"
• Output profile: E-Type
• Material: Chrome Vanadium Steel
• Length: 135 mm
• Width: 90 mm
• Height: 20 mm
• Gross weight: 78 g
• Surface finish: Satin chrome plated

OEM reference numbers

• Audi: T10255
• Seat: T10255
• Skoda: T10255
• Volkswagen: T10255
