BALANCE SHAFT PULLER | FOR AUDI, VW (9065)

Product description

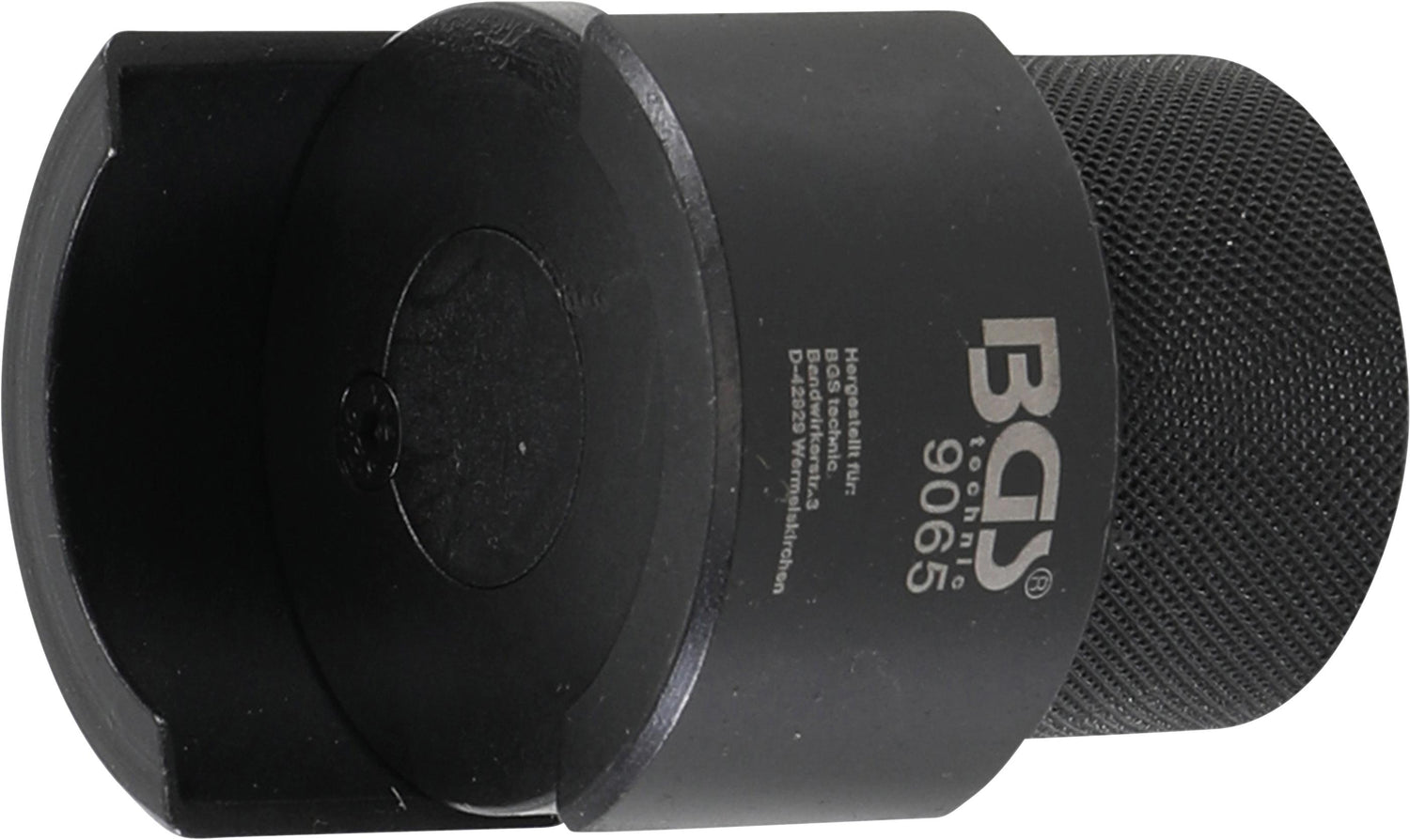

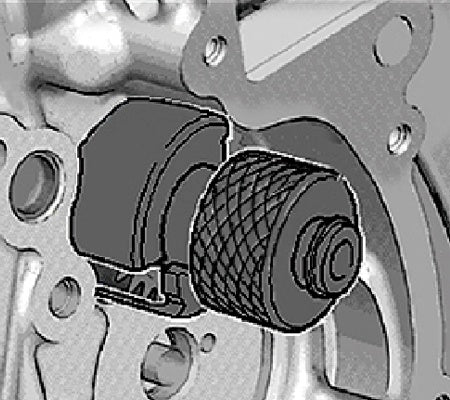

This balancer shaft removal tool is designed for the efficient extraction of the balancer shaft in 4-cylinder 1.8 and 2.0 L injection engines equipped with a timing chain. It is used during engine repair or maintenance procedures that require the removal of the balancer shaft, such as timing chain service or internal engine work. The tool features an internal M8 x 1.25 mm thread for compatibility with a chipping hammer, facilitating straightforward removal.

This tool is compatible with a range of Audi and Volkswagen group vehicles, specifically those fitted with the applicable 4-cylinder engines. It is also suitable for use as a complement to other timing chain service tools.

Compatible vehicles

• VW: Golf (since 2004), Passat (since 2006), Passat CC (since 2009), Tiguan (since 2008), Eos (since 2006)
• Audi: A3 (since 2004), A4 (since 2008), A5 (since 2008), TT (since 2007)

Kit contents

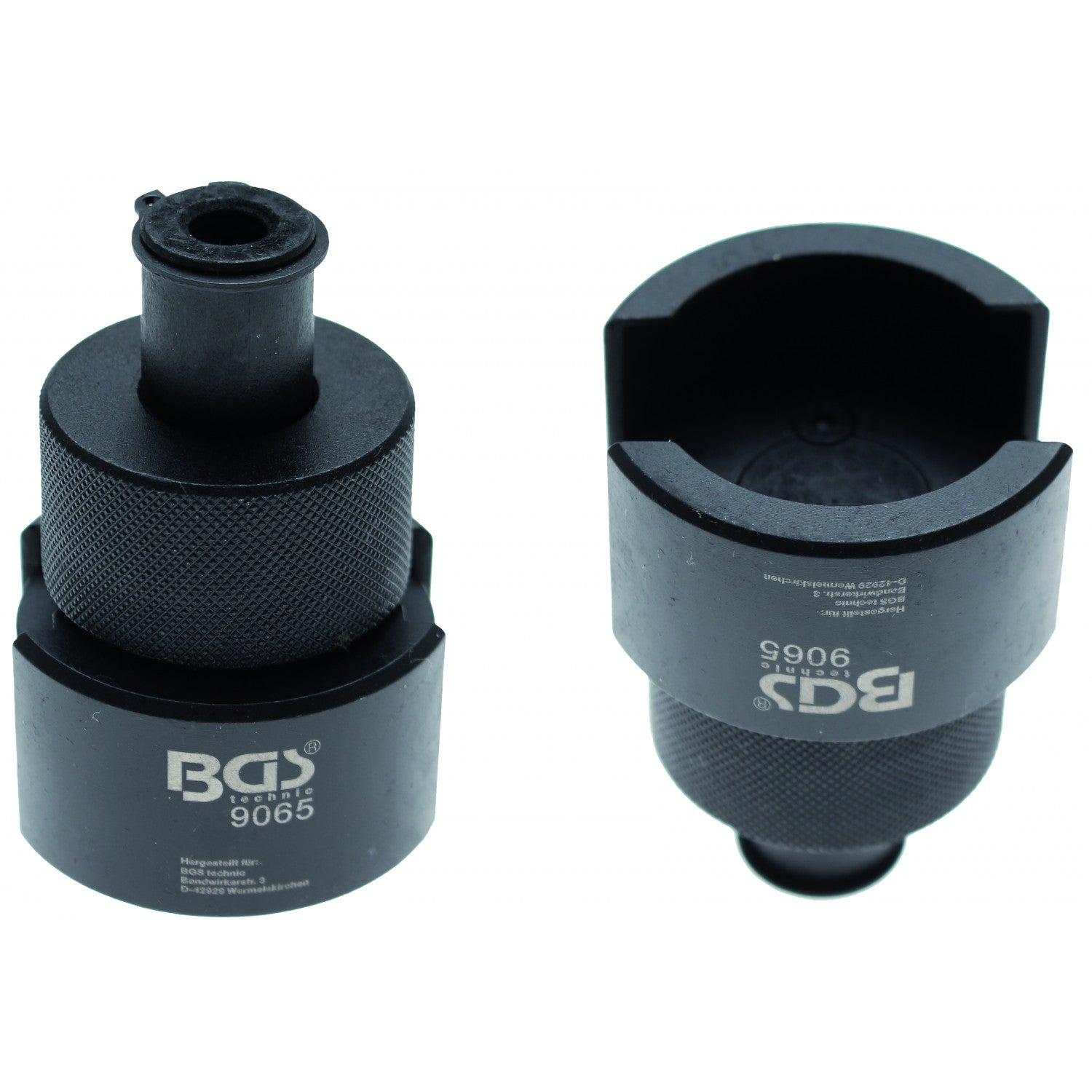

• Balancer shaft removal tool (OEM T10394)

Technical specifications

• Gross weight: 330 g
• Internal thread: M8 x 1.25 mm

OEM reference numbers:

• Volkswagen: T10394
• Audi: T10394
• Seat: T10394
• Skoda: T10394
