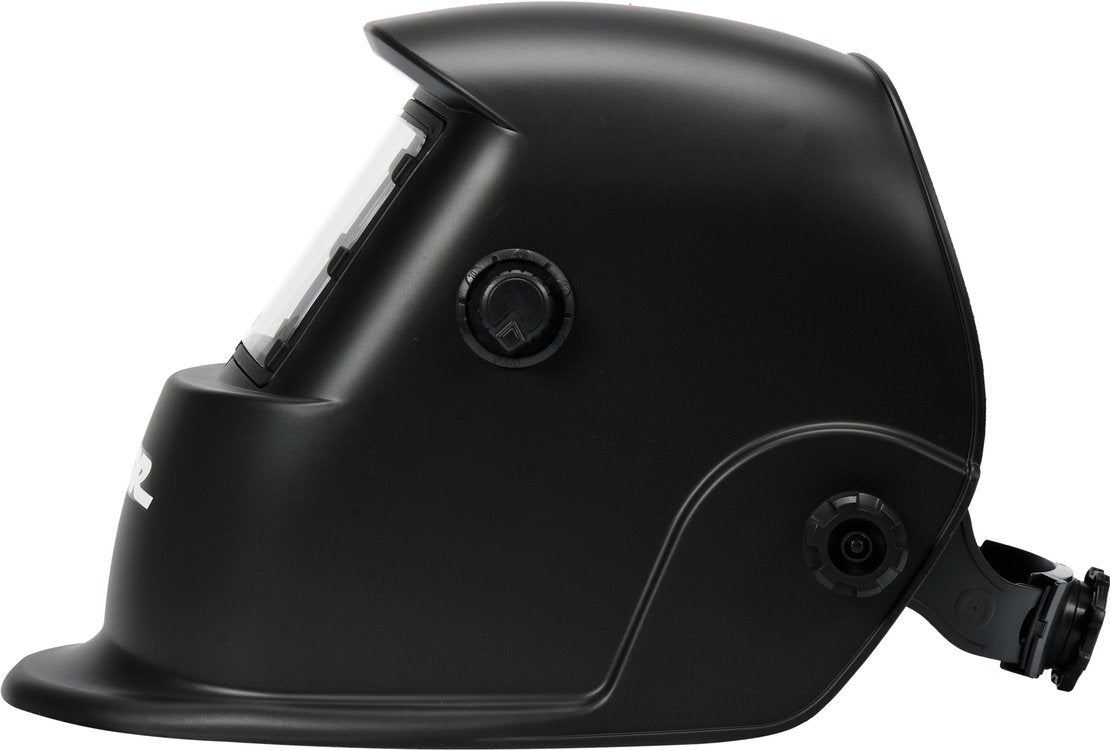

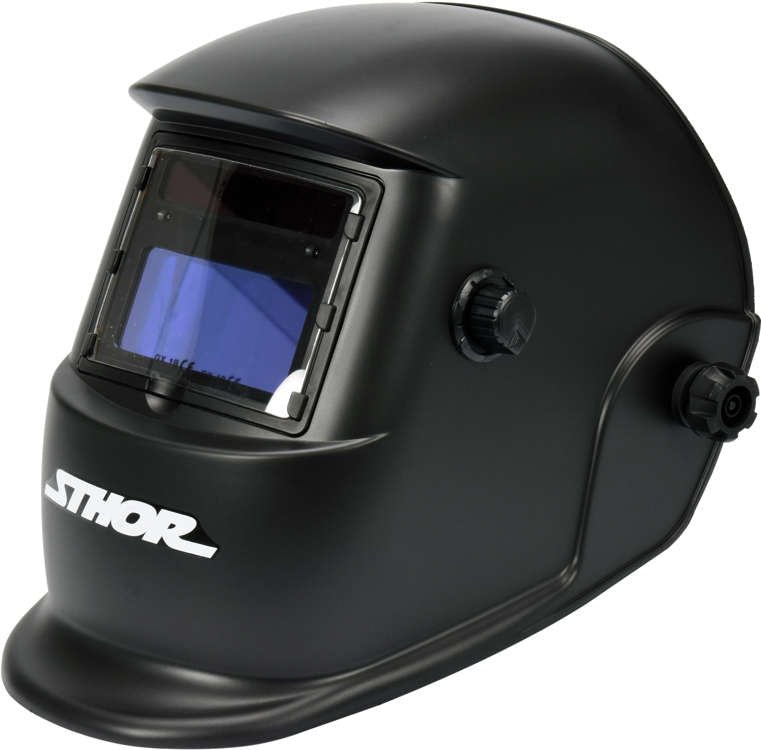

AUTO- DARKENING WELDING HELMET (74480)

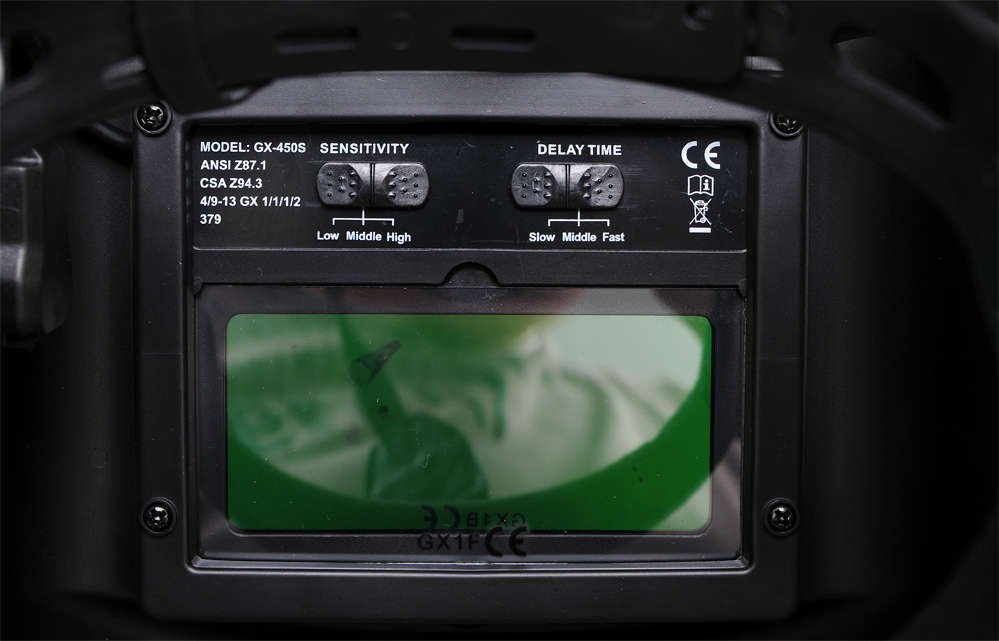

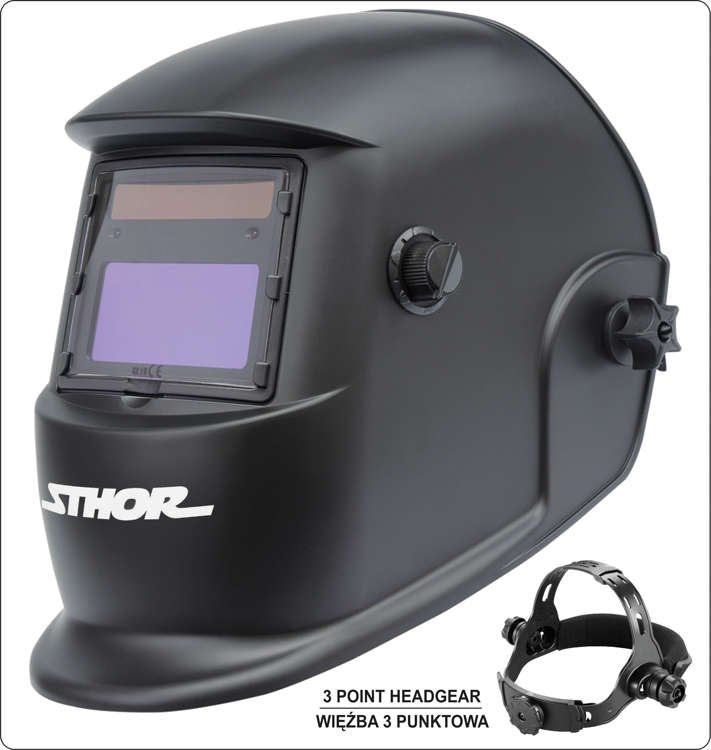

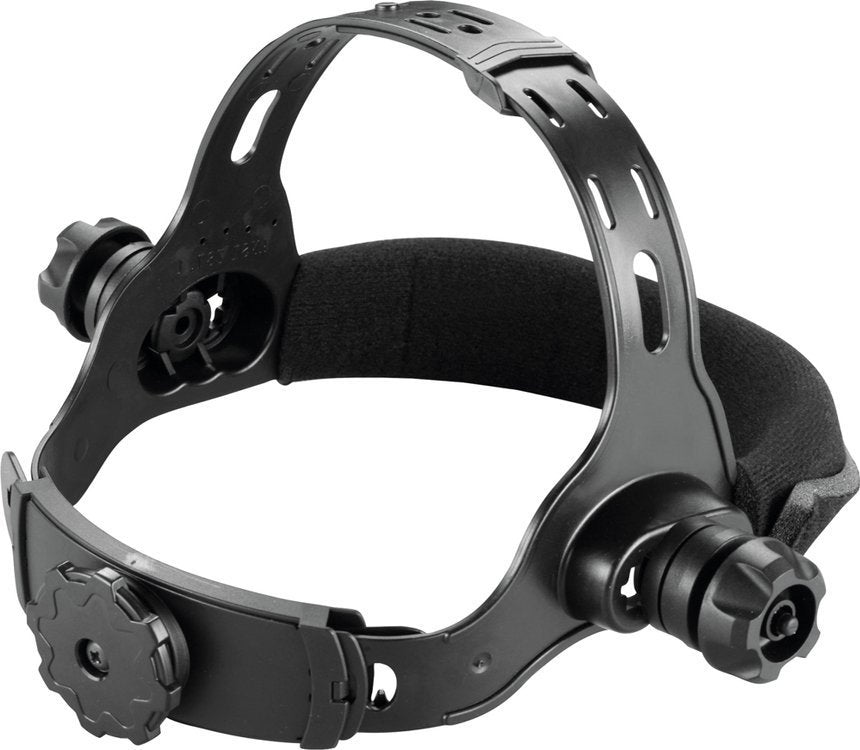

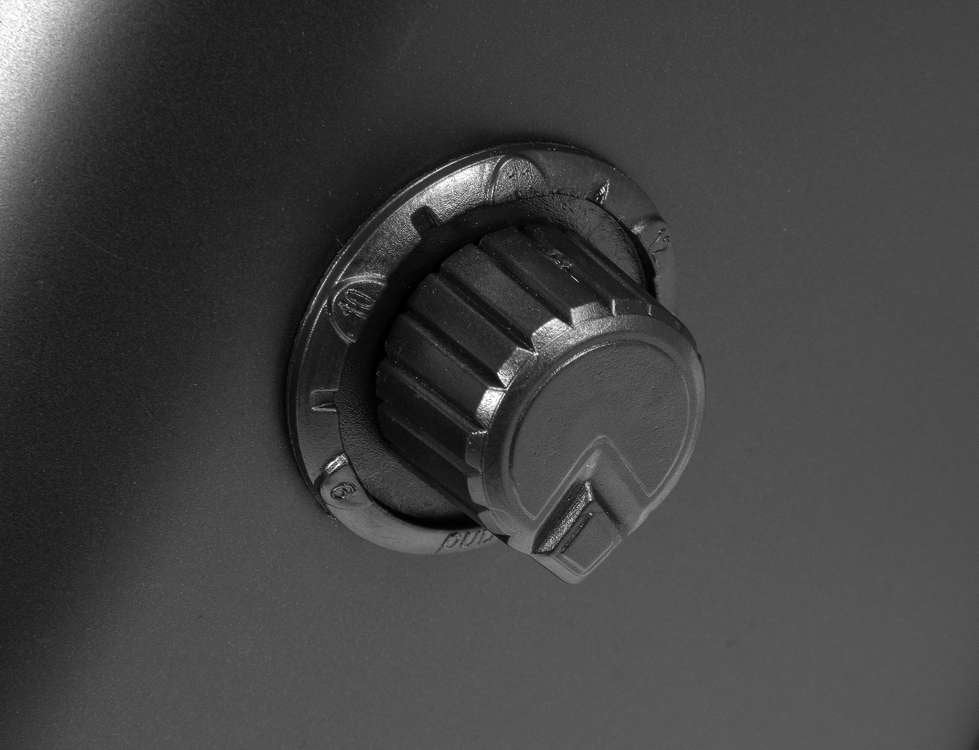

Welding helmet with auto-darkening filter. 1/1/1/2 optical class. High-quality filter equipped with 2 arc sensors provides a field of view of 92 * 42 mm, dark state DIN 9-13, light state DIN4, response time 1/15000 s., Lightening time 0.25-0.85 s., And darkening time 0.25-08 sec. In addition, the filter provides protection against UV / IR rays at the DIN16 level. The helmet has a smooth adjustment of sensitivity and delay. It is powered by a solar cell and has an automatic on / off function. The helmet also has a grinding protection function. It can be used in the temperature range from -5 degrees C to +55 degrees C. In addition, it is equipped with a very comfortable 3-point harness with adjustable height and occipital position.

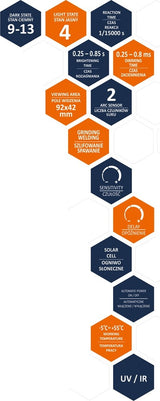

optical class 1/1/1/2
field of view: 92 x 42 mm
response time 1/15000 s
welding / grinding function
DIN 16 UV / IR protection

Purpose / application
welding and grinding
Parameters
Power: solar cell
Functions: welding / grinding
Filter dimensions [mm]: 110x90
Filter: auto-darkening
Number of sensors [pcs]: 2
Field of view [mm]: 92x42
Light condition [DIN]: 4
Dark condition [DIN]: 9-13 '
Response time [ms]: 1/15000 '
Welding method: MMA / MIG / MAG / TIG
