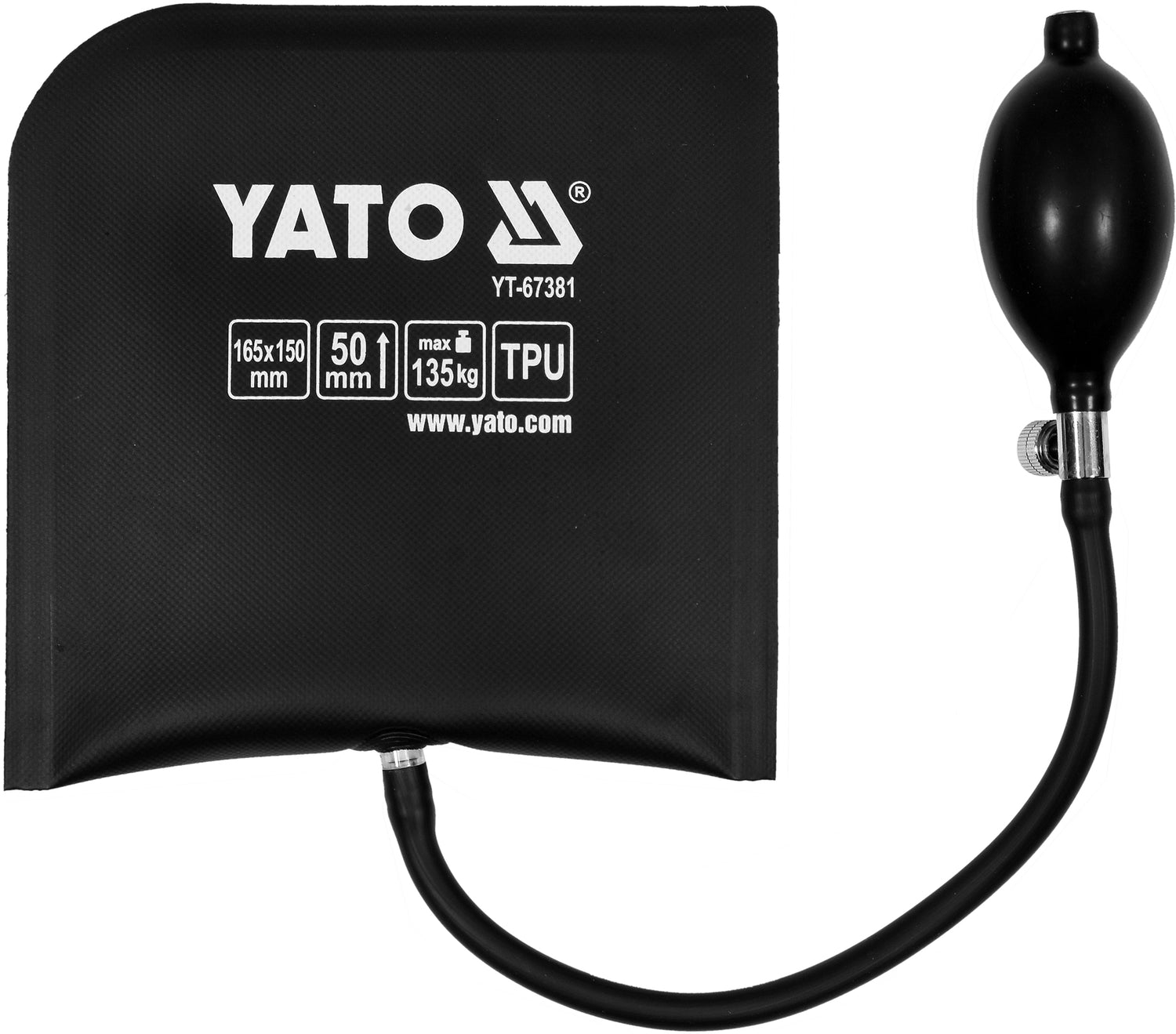

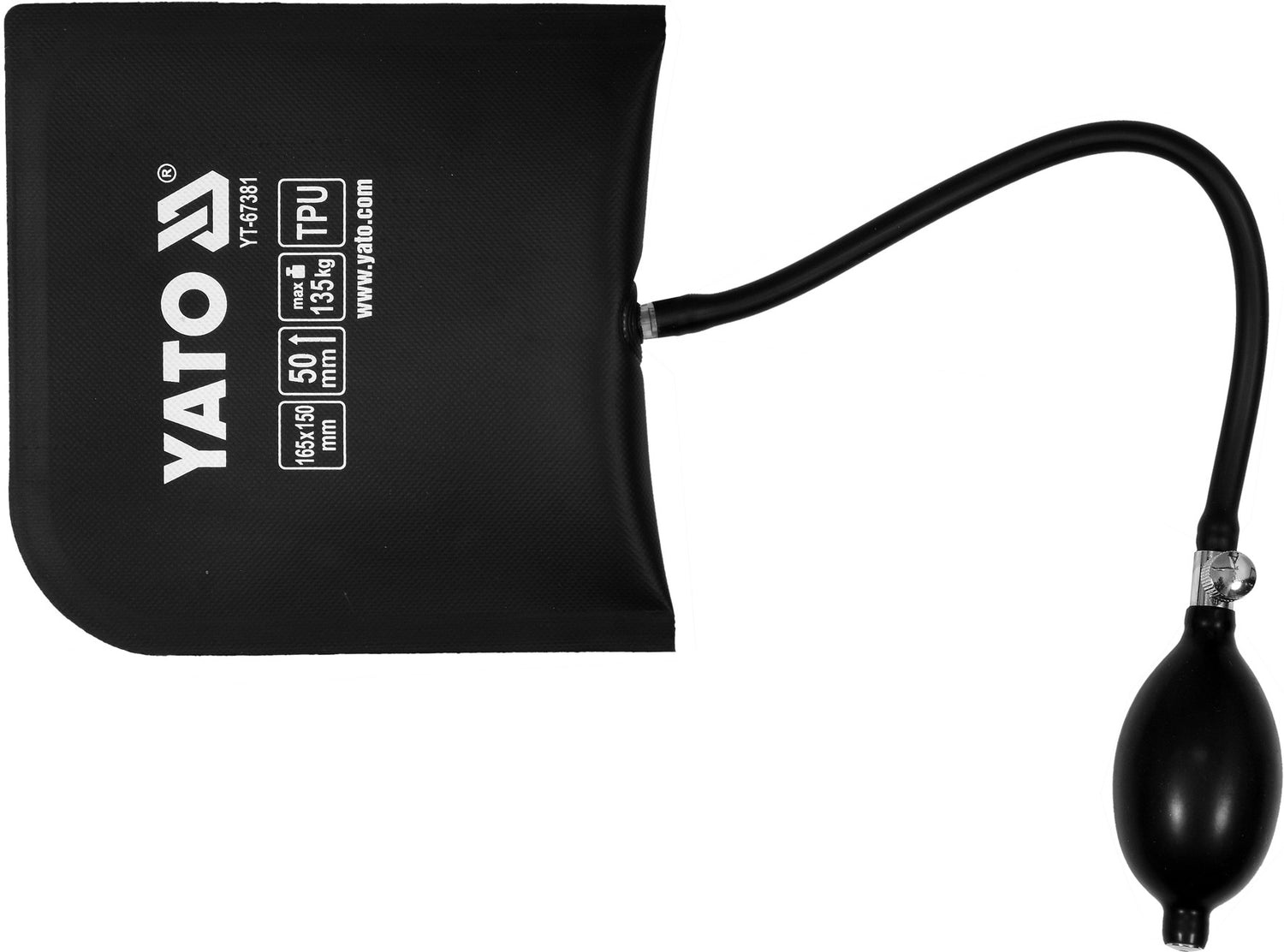

AIR PUMP WEDGE (YT-67381)

Pneumatic mounting cushion. It has a durable all-metal control valve. Cushion material - black reinforced polypropylene.

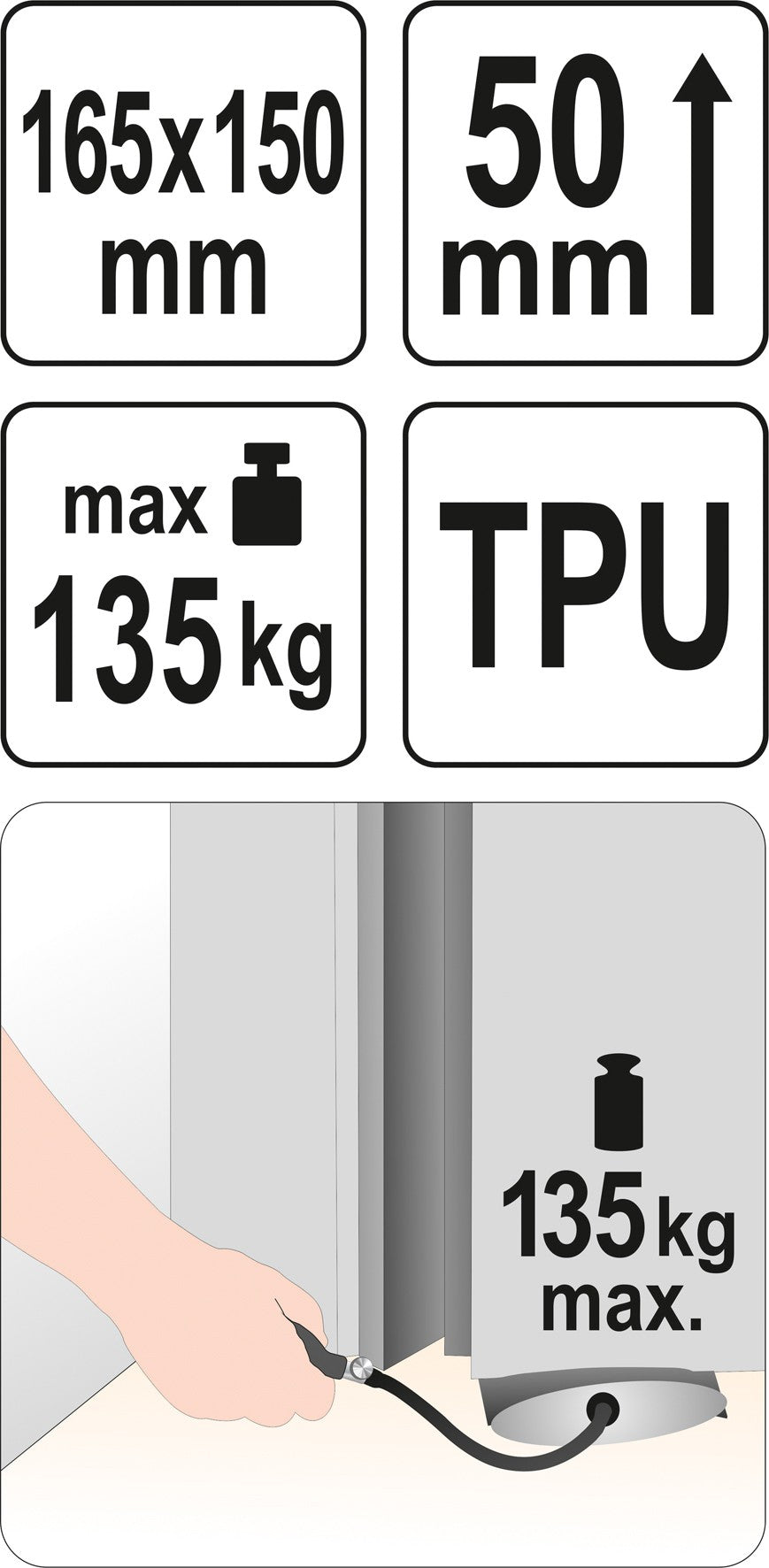

dimensions: 165 x 150 mm
lifting capacity: 135 kg
lifting height max: 50 mm
tubing length: 250 mm
Purpose / Application
For the positioning of heavy workpieces weighing up to approx. 135 kg. It allows you to easily move / lift, move, level / e.g. furniture, window or door frames, washing machines, refrigerators, parts and devices for various technical works.
Usage method
Place an empty cushion (approx. 2 mm thick) in the desired place, close the control valve and use a pump at the end of the hose to force air into the cushion causing it to swell and move the object. To remove the cushion, turn the valve, gradually releasing air.
Technical data
Index number YT-67381
EAN 5906083067983
Brand Yato
Gross weight (kg) 0.1670
Master Carton MC 48
