AIR PUMP WEDGE SET 3 PCS (YT-67385)

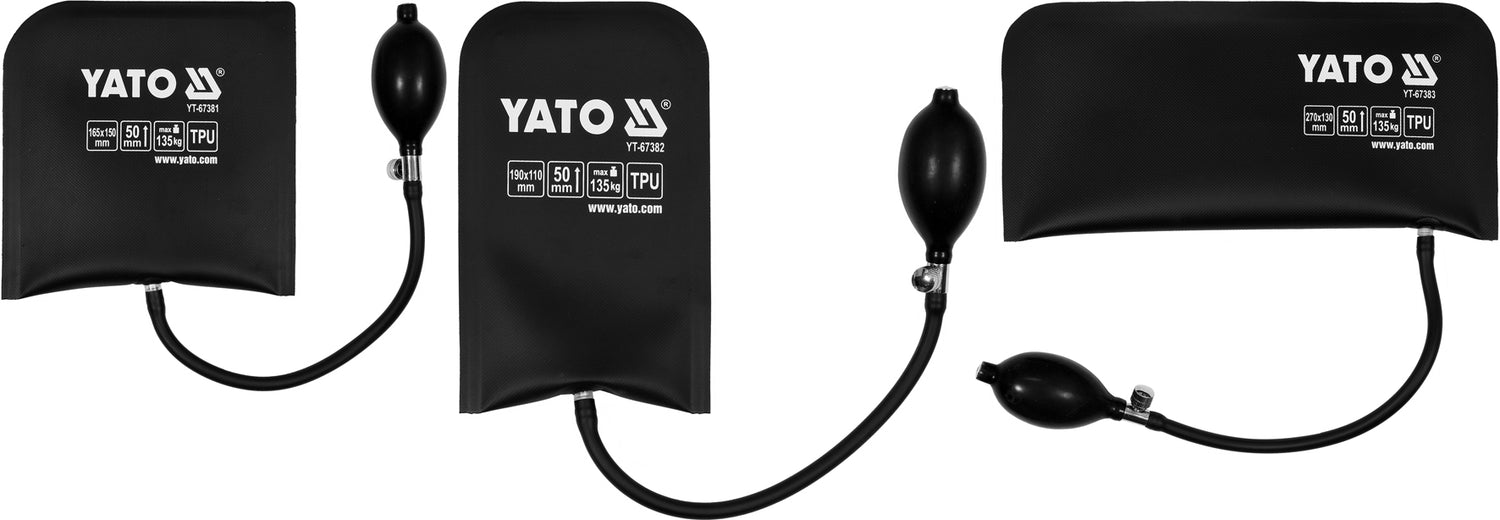

Pneumatic mounting cushions. Cushion material - black reinforced polypropylene. They have durable all-metal control valves.

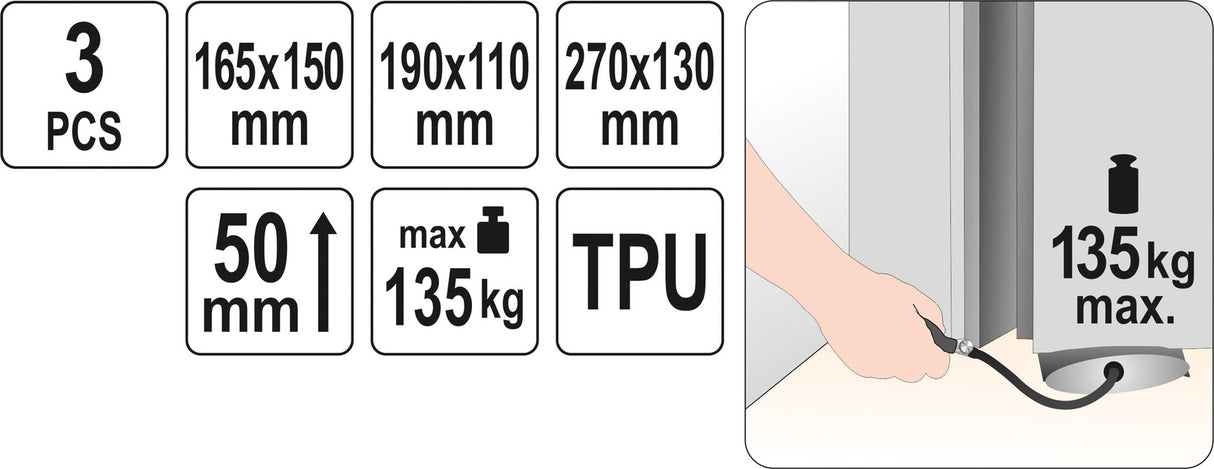

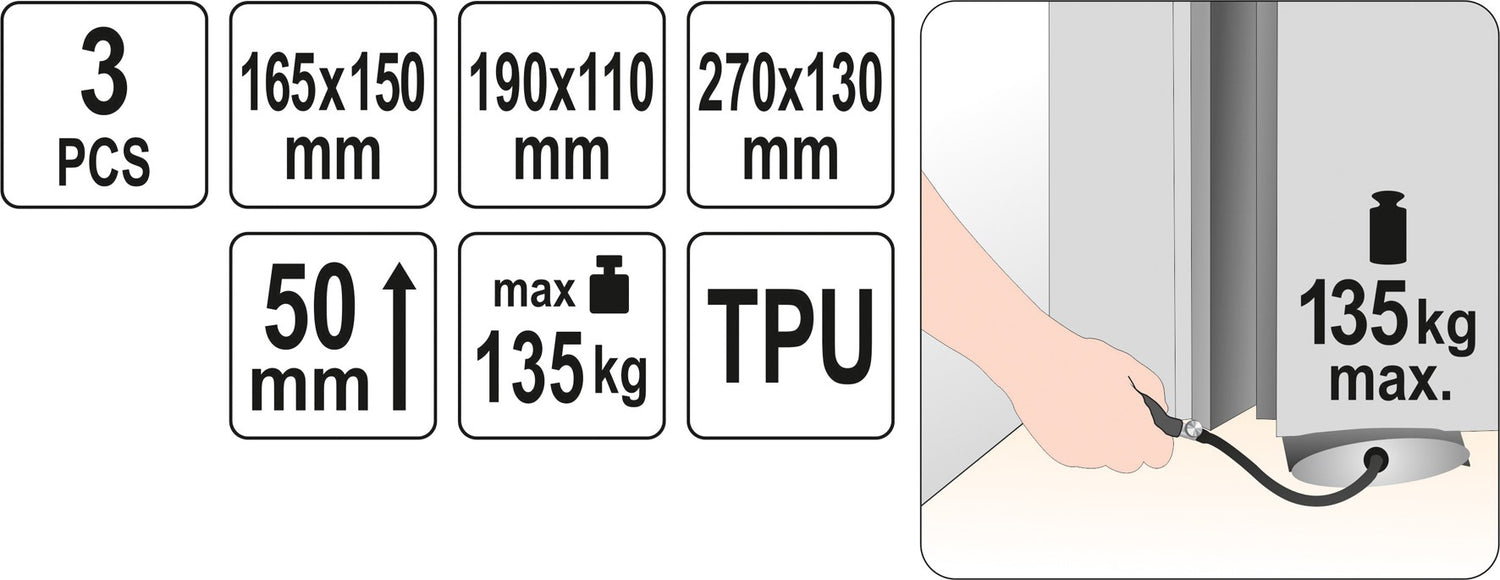

The set consists of three pillows with the following dimensions:

165 x 150 mm
190 x 110 mm
270 x 130 mm
lifting capacity: 135 kg
lifting height max: 50 mm
tubing length: 250 mm
Purpose / Application
For the positioning of heavy workpieces weighing up to approx. 135 kg. Allows easy movement / lifting, sliding, leveling / e.g. furniture, window or door frames, washing machines, refrigerators, parts and devices for various technical works
Usage method
Place an empty cushion (approx. 2 mm thick) in the desired place, close the regulating valve and use a pump at the end of the hose to force air into the cushion causing it to swell and move the object. To remove the cushion, turn the valve, gradually releasing air.
Technical data
Index number YT-67385
EAN 5906083068027
Brand Yato
Gross weight (kg) 0.4080
Master Carton MC 48
Pile 192
