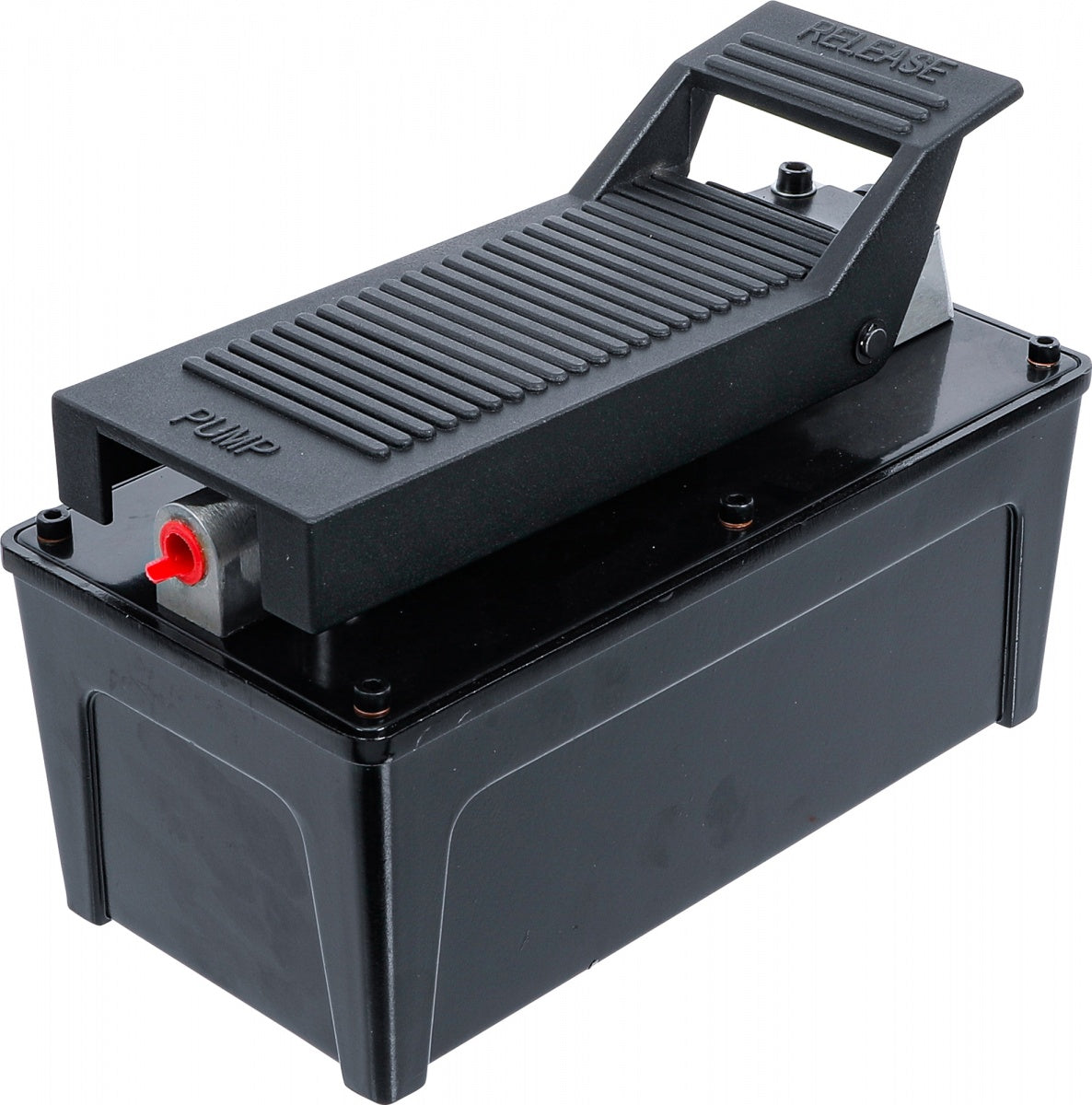

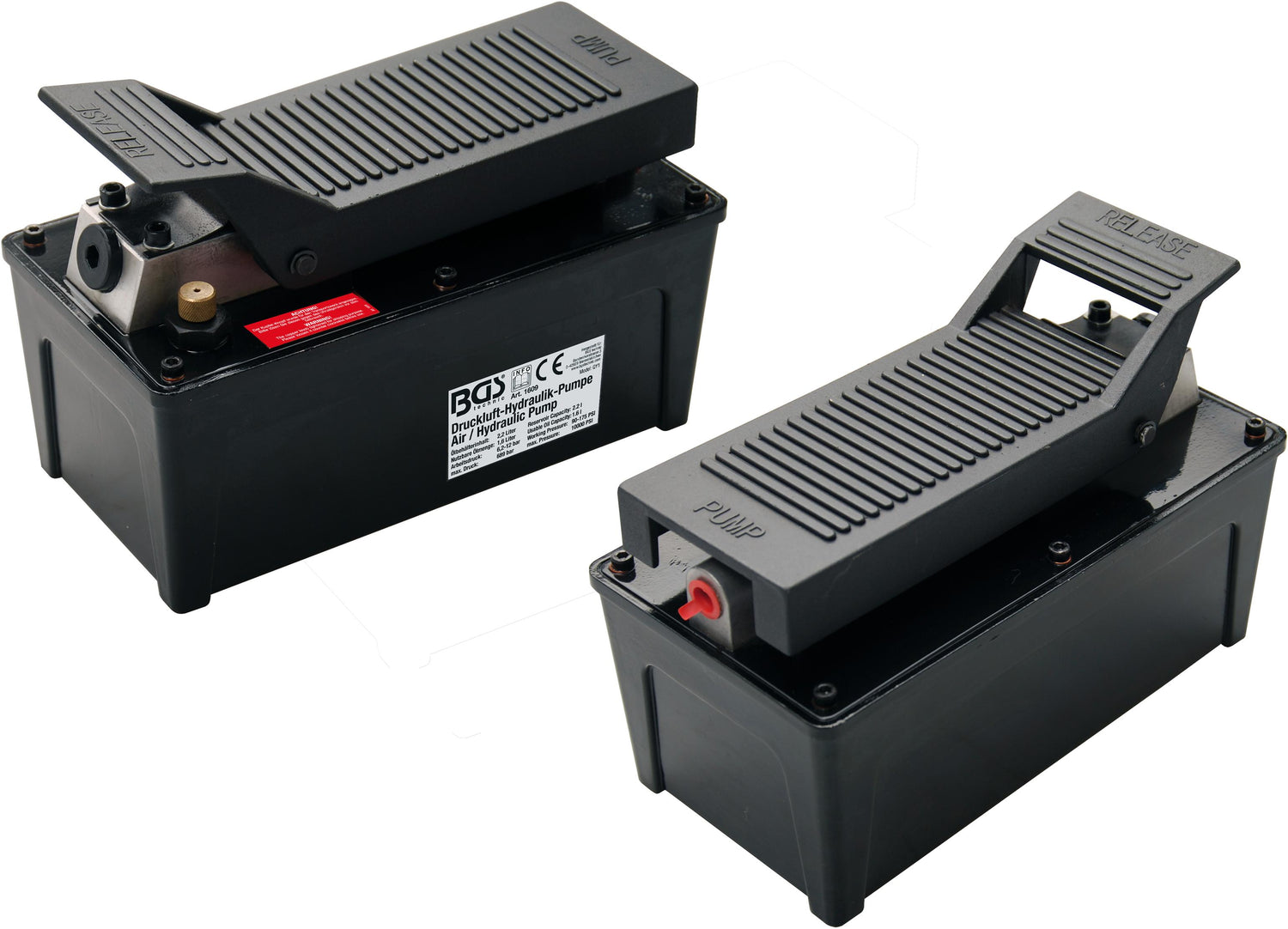

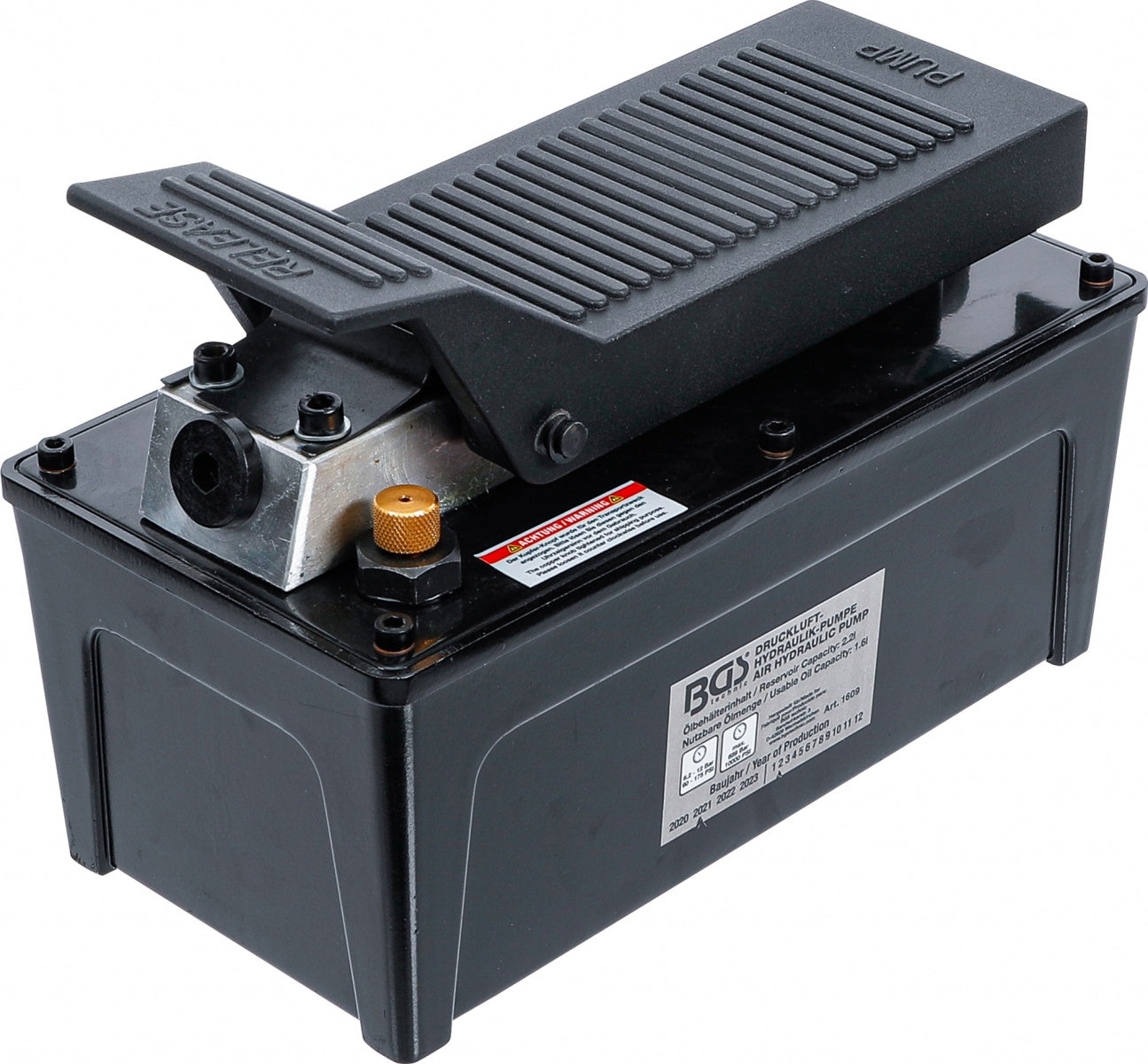

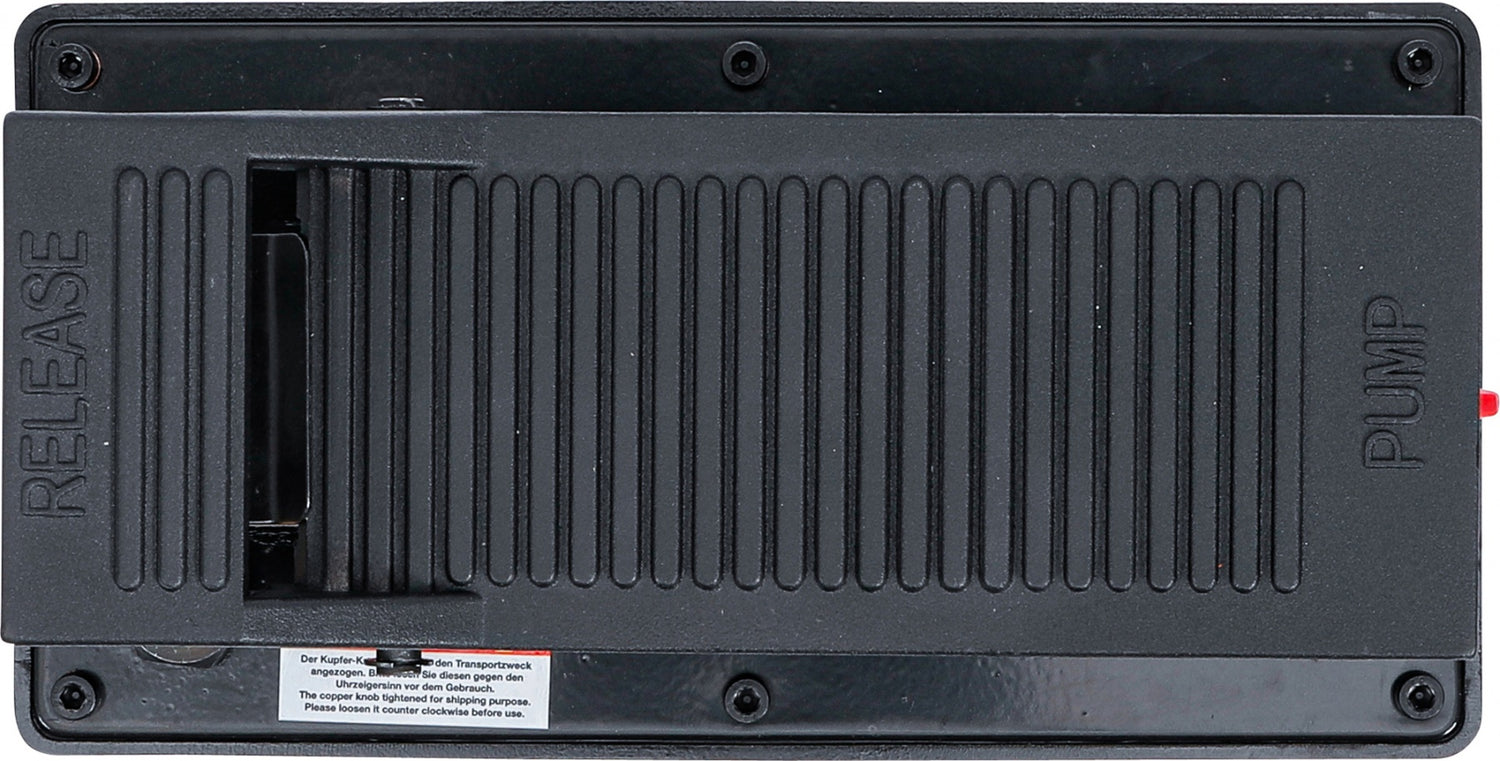

AIR HYDRAULIC PUMP | 689 BAR / 10,000 PSI (1609)

suitable for all BGS hydraulic tools
compressed air supply: 6.2 - 9.6 bar
compressed air connection: 6.3 mm (1/4") x 18 NPT
pressure oil connection: 10 mm (3/8") x 18 NPT
max. output pressure: 689 bar (10000 psi)
oil tank capacity: 2.2 l
usable oil capacity: 1.6 l
weight 8.5 kg
dimensions: 261 x 135 x 185 mm
Technical data
Gross weight8110 g
