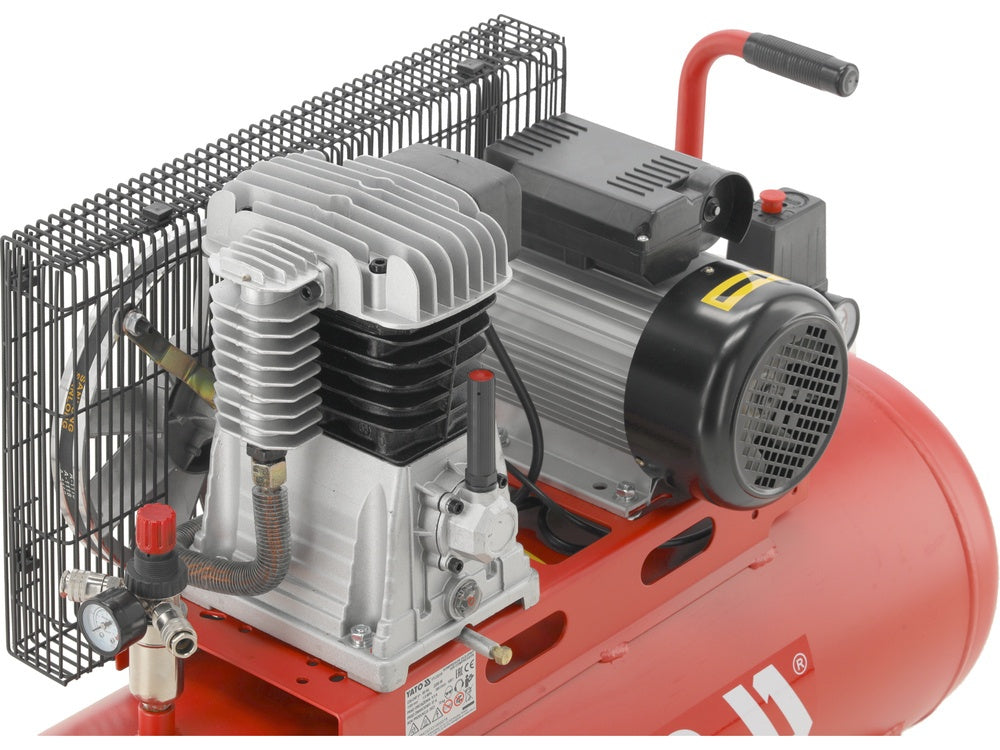

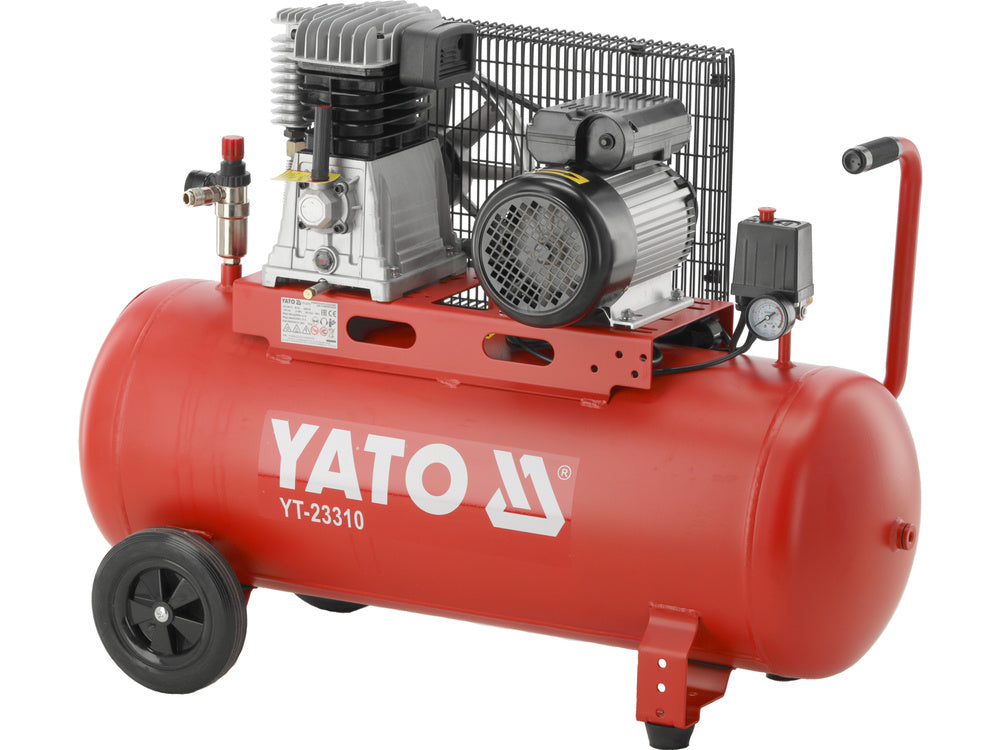

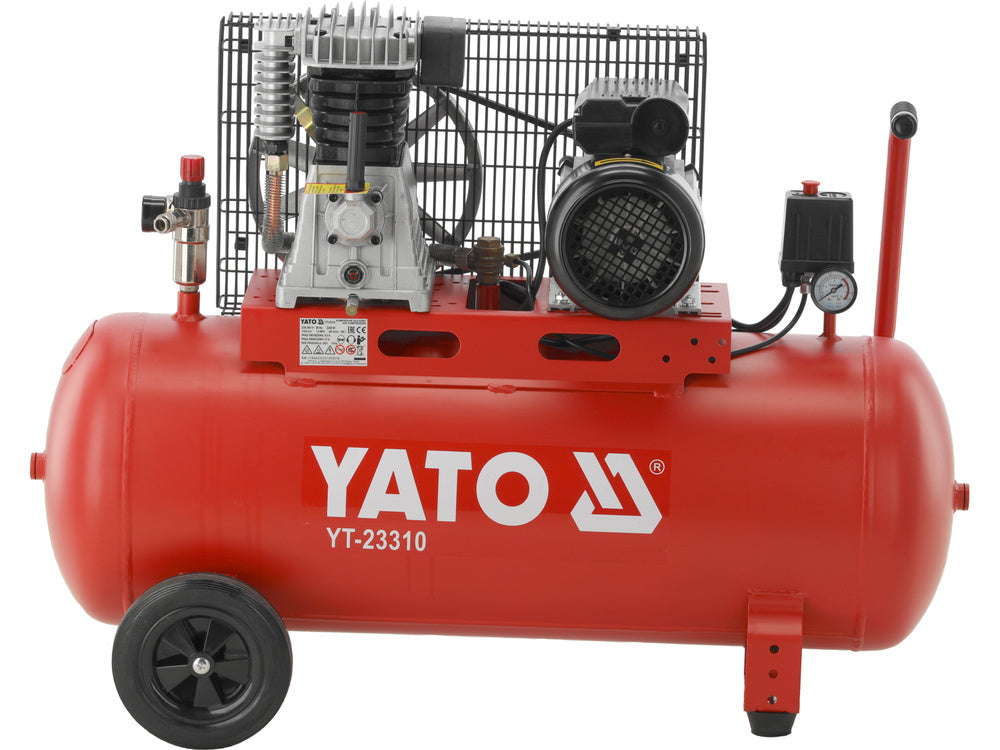

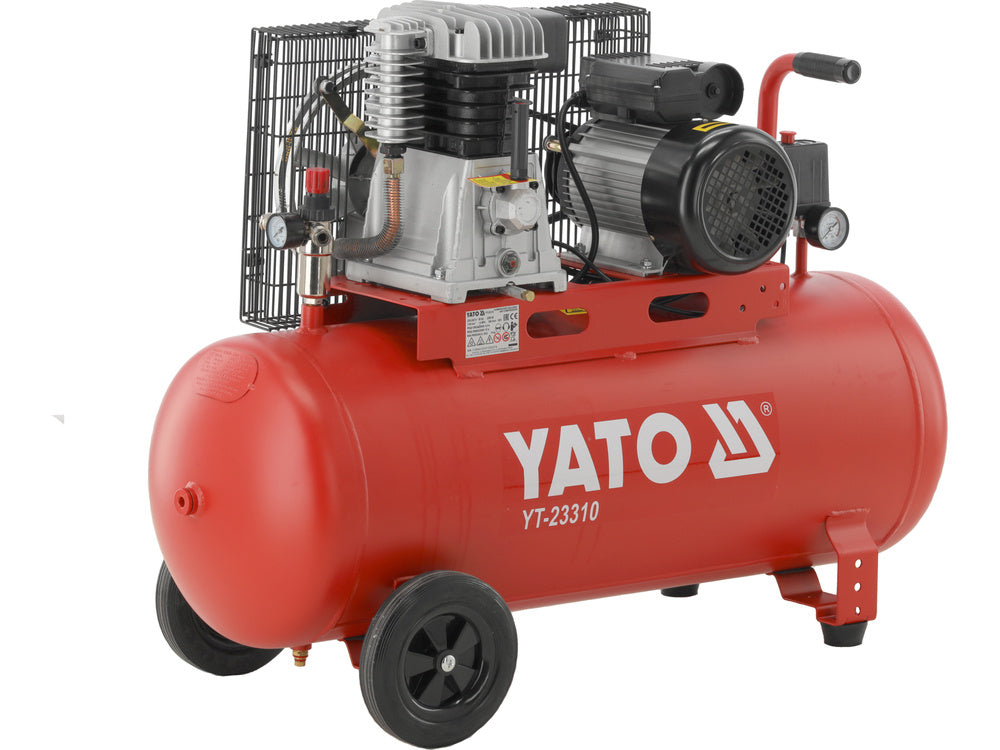

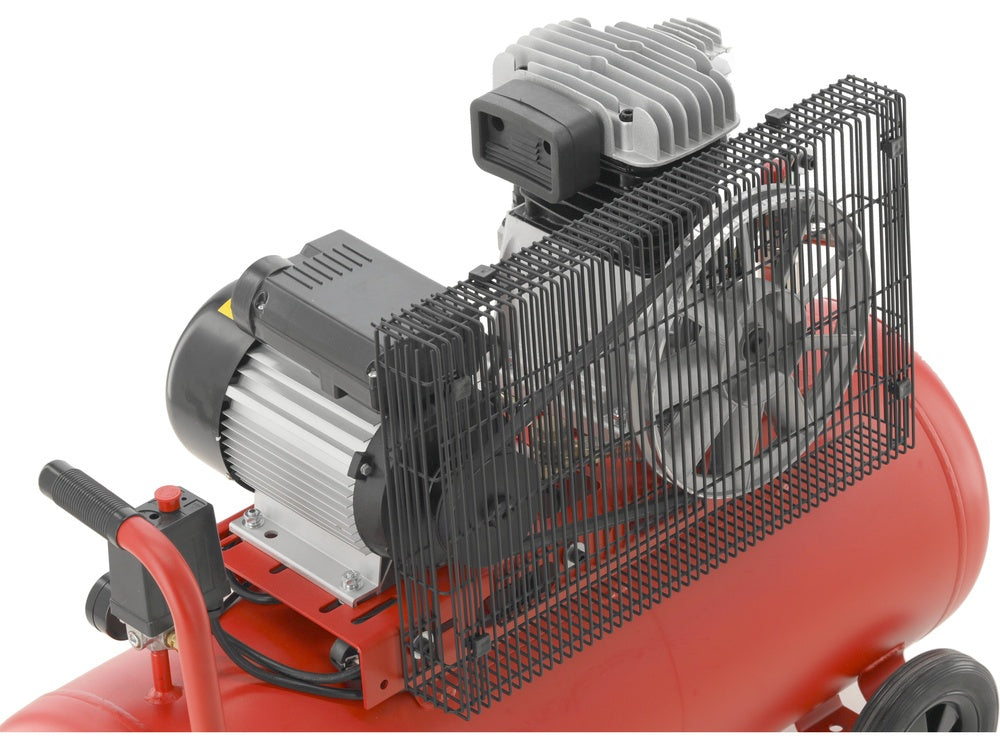

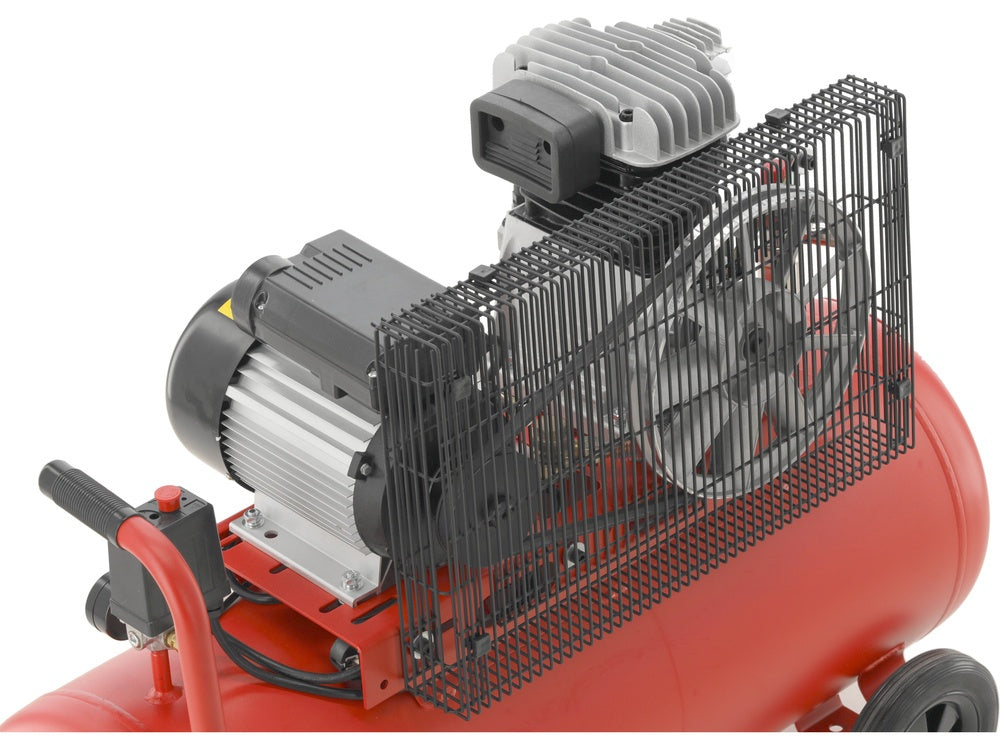

AIR COMPRESSOR 100L (YT-23310)

Dimensions: 108 x 39 x 77


OIL COMPRESSOR 100L
YT-23310
Brand
Yato
Symbol
YT-23310
Series
GRG
Tank capacity
100 L
Set contents
compressor, quick connector x2
RPM
1100 min1
Weight
70kg
Voltage
230 V a.c.
Power
2200 W
3 HP
Efficiency
360 l/min
Security level
IP20
Frequency
50 Hz
Electrical insulation class
AND
Sound pressure
74.7 3.0 dB(A)
Acoustic power
93.8 2.28 dB(A)
Max pressure
1 / 10 / 145 MPa/bar/PSI
Colic
YES
Number of wheels
2
Manometer
YES
Number of cylinders in the engine
2
Short-circuit current
57A
Load current
9.5 A

Oil compressor with two connections and pressure regulation. It is used for driving devices with compressed air, blowing holes and cleaning surfaces. It is invaluable support in industry, construction, workshops and agriculture.

power: 2200 W (3 HP)
tank capacity: 100 l
capacity: 360 l/min
filling time: 240 s
maximum pressure: 10 bar (145 PSI)
tank dimensions: 350 x 1020 mm
tank wall thickness: 2.75 mm
engine speed: 2850 rpm
weight: 70 kg
voltage: 230V
quick connectors: 2 pcs

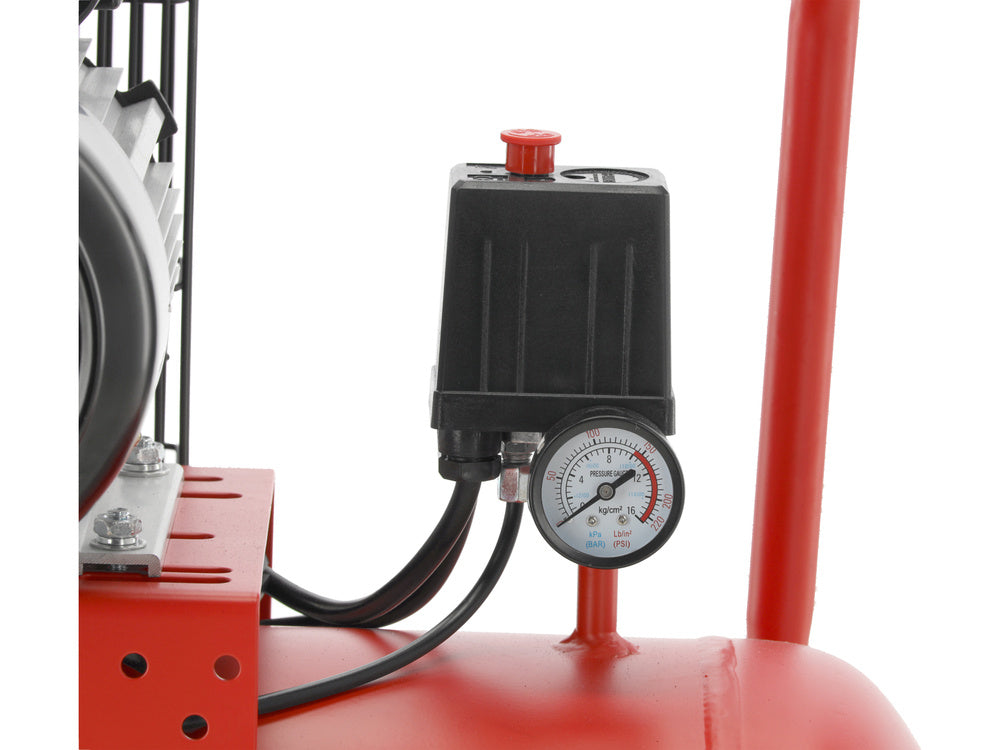

pressure gauges: 2 pcs

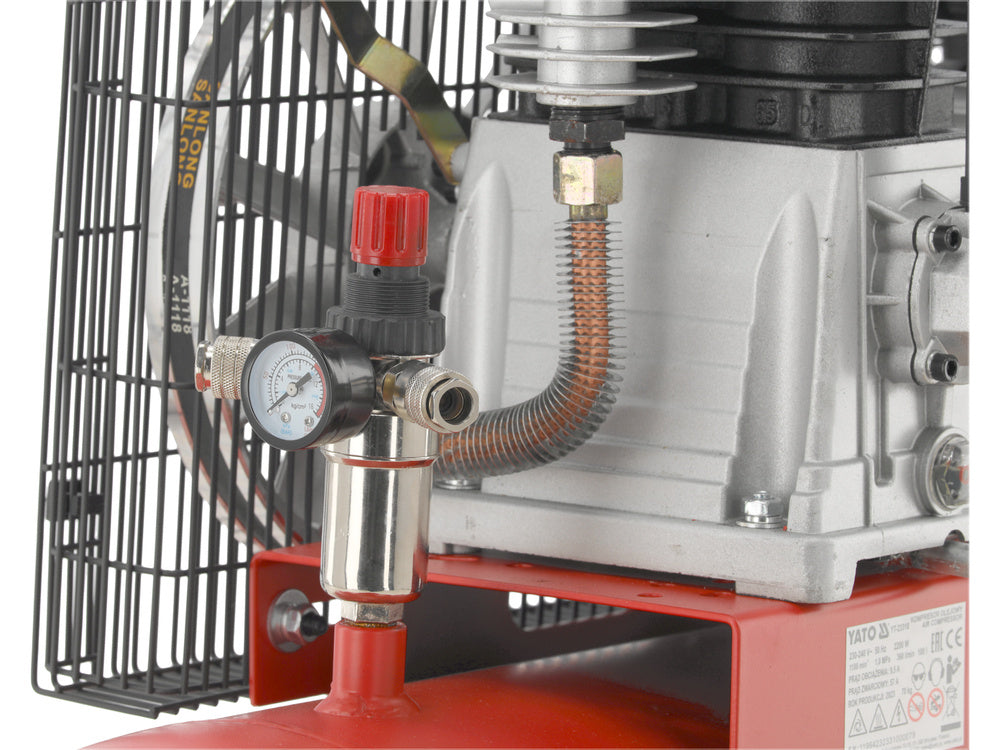

pressure regulator: 1 pc
