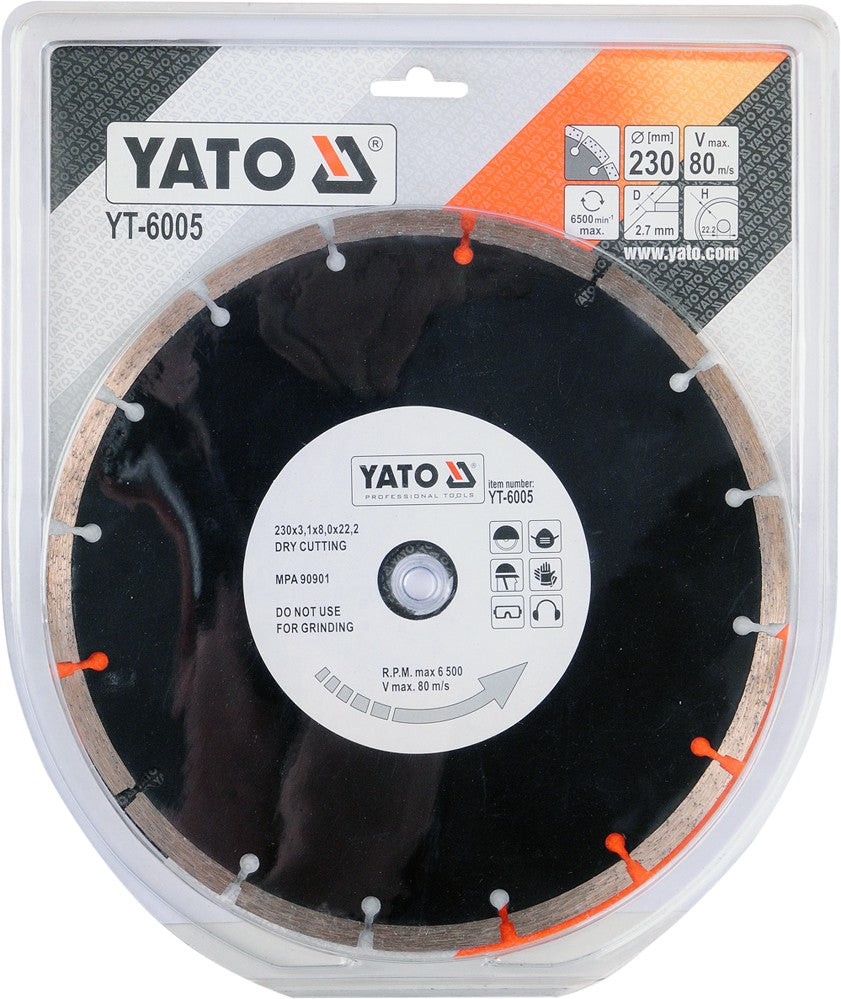

DIAMOND BLADE SEGMENTED - HS 230 (YT-6005)

Brand
Yato
Symbol
YT-6005

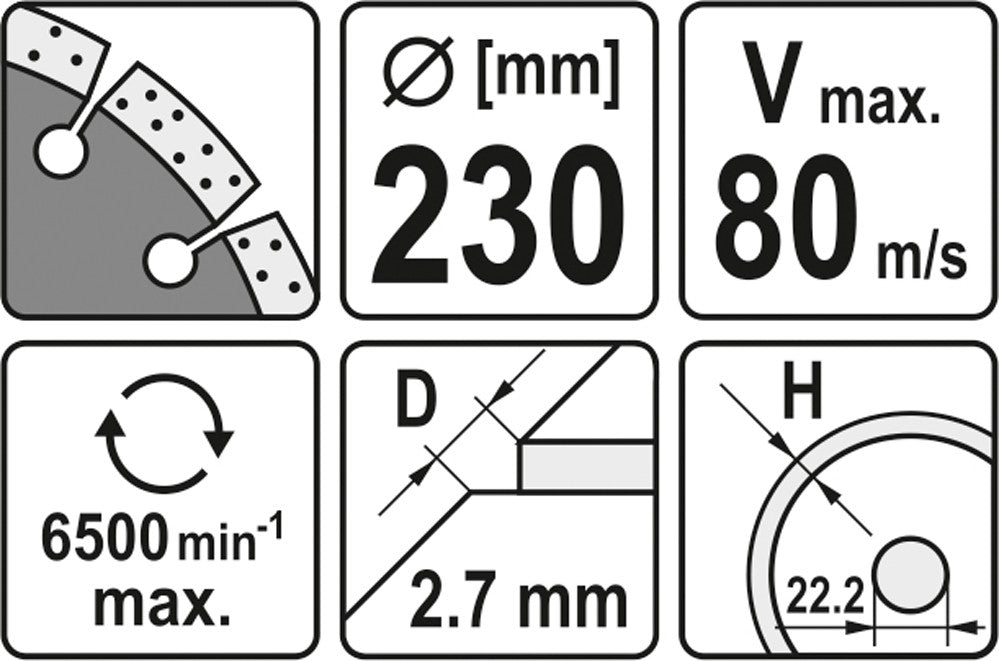

Diameter
230mm
Mounting hole diameter
22.2mm
Cutting segment height
8mm
Cutting segment thickness
2.7mm
Chemical composition of the cutting segment
Fe 25%, Cu 53%, Sn 7%, Ni 7%, Co 8%, diamond coating 13%
Material
65Mn steel
Max. RPM
6500 min1
Max. linear speed of the disc
80 m/s
Application
hardened concrete, brick, silicate brick, granite, masonry, stone, refractory materials
Type of work
dry

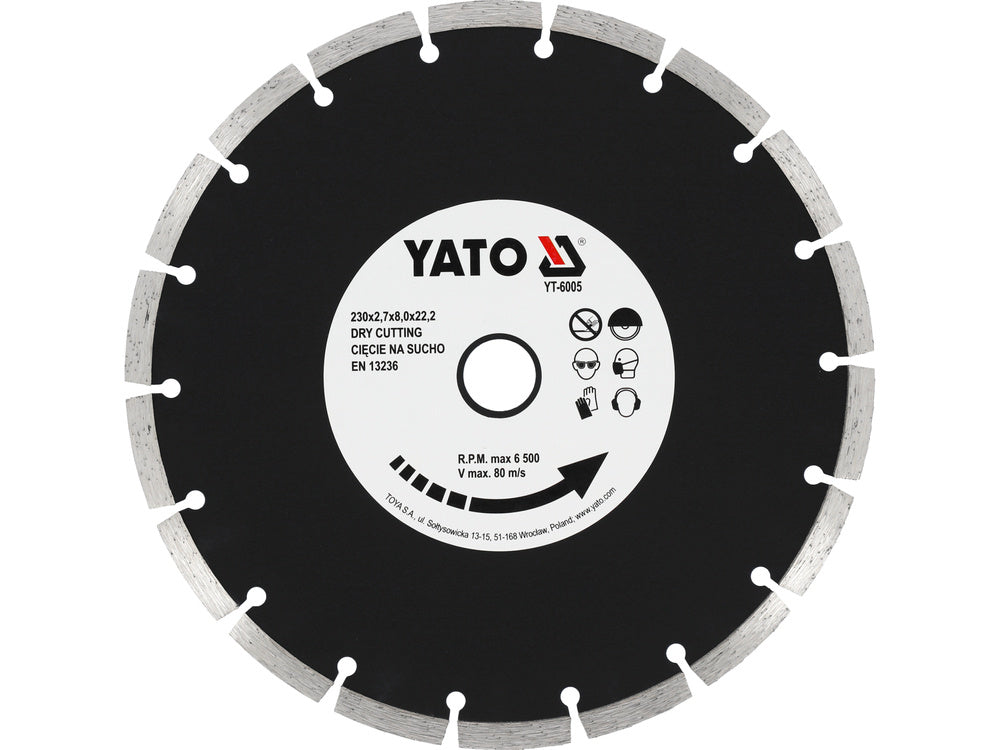

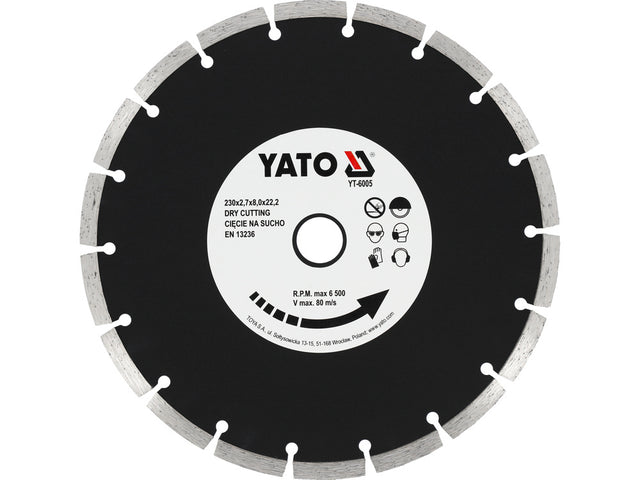

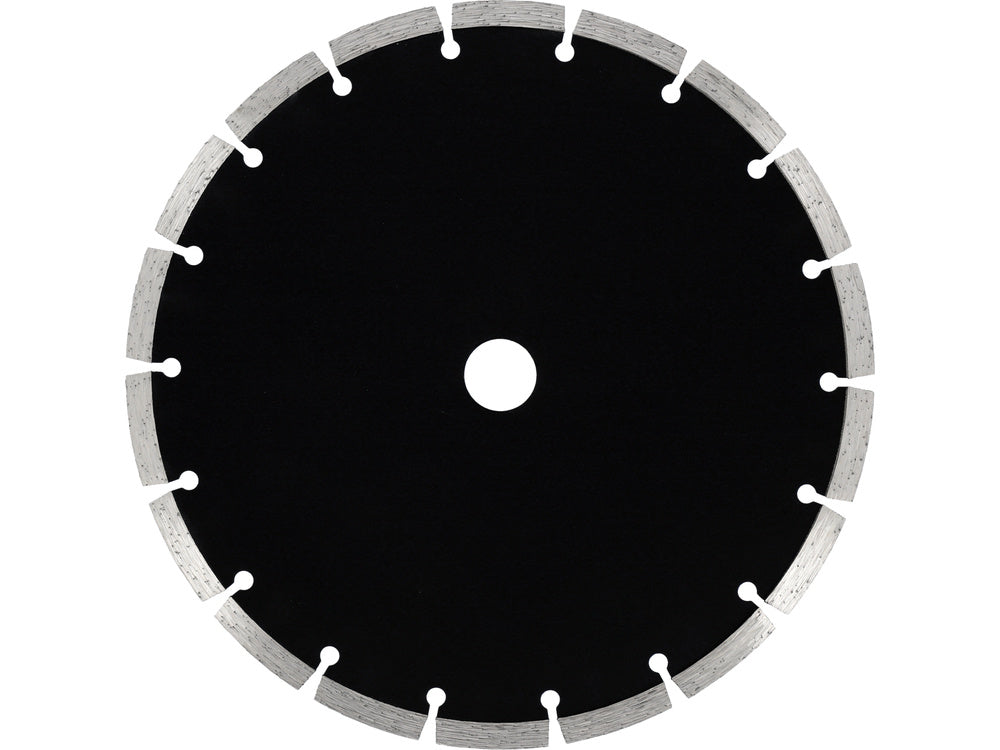

Diamond disc for angle grinders, equipped with 8 mm high laser-welded segments.

Designed for dry operation.

Recommended for cutting hardened concrete, brick, silicate brick, granite, masonry, and stone.

Recommended speed approx. 6500 rpm
