ENGINE LOCKING TOOL SET | FORD 2.5, VOLVO 1.6 - 2.5 AND 2.4D (SK1179)

Product description

This engine timing tool kit is designed for setting the camshaft and crankshaft timing when replacing the cylinder head gasket. It is suitable for a range of Ford and Volvo engines, covering both petrol and diesel variants. The kit provides the necessary tools to accurately align and hold the camshaft and crankshaft in position during engine maintenance procedures, such as cylinder head removal and installation.

The kit serves Ford 2.5 Turbo (Euro 4) engines with codes HUBA, HUWA, HYDA, and JZDA, as well as a wide selection of Volvo engines from 1.6 to 2.5 liters, including both naturally aspirated and turbocharged variants, and the 2.4D diesel engine. It is applicable for use on various Ford and Volvo models produced from the mid-1990s through 2010, making it suitable for workshops servicing these vehicles during timing belt or cylinder head gasket replacement.

Compatible vehicles

Ford

• Focus 2.5 RS / ST (2005-)
• Mondeo 2.5 (2005-)
• S-Max 2.5 (2005-)
• Galaxy 2.5 ST (2005-)

Volvo

• C30 (2006-2010)
• C70 (1998-2010)
• S40 (1996-2010)
• S60 (2000-2009)
• S70 (1997-2007)
• S80 (1998-2006)
• V40 (1996-2010)
• V50 (2004-2010)
• V70 (1997-2007)
• XC70 (2002-2007)
• XC90 (2002-2010)

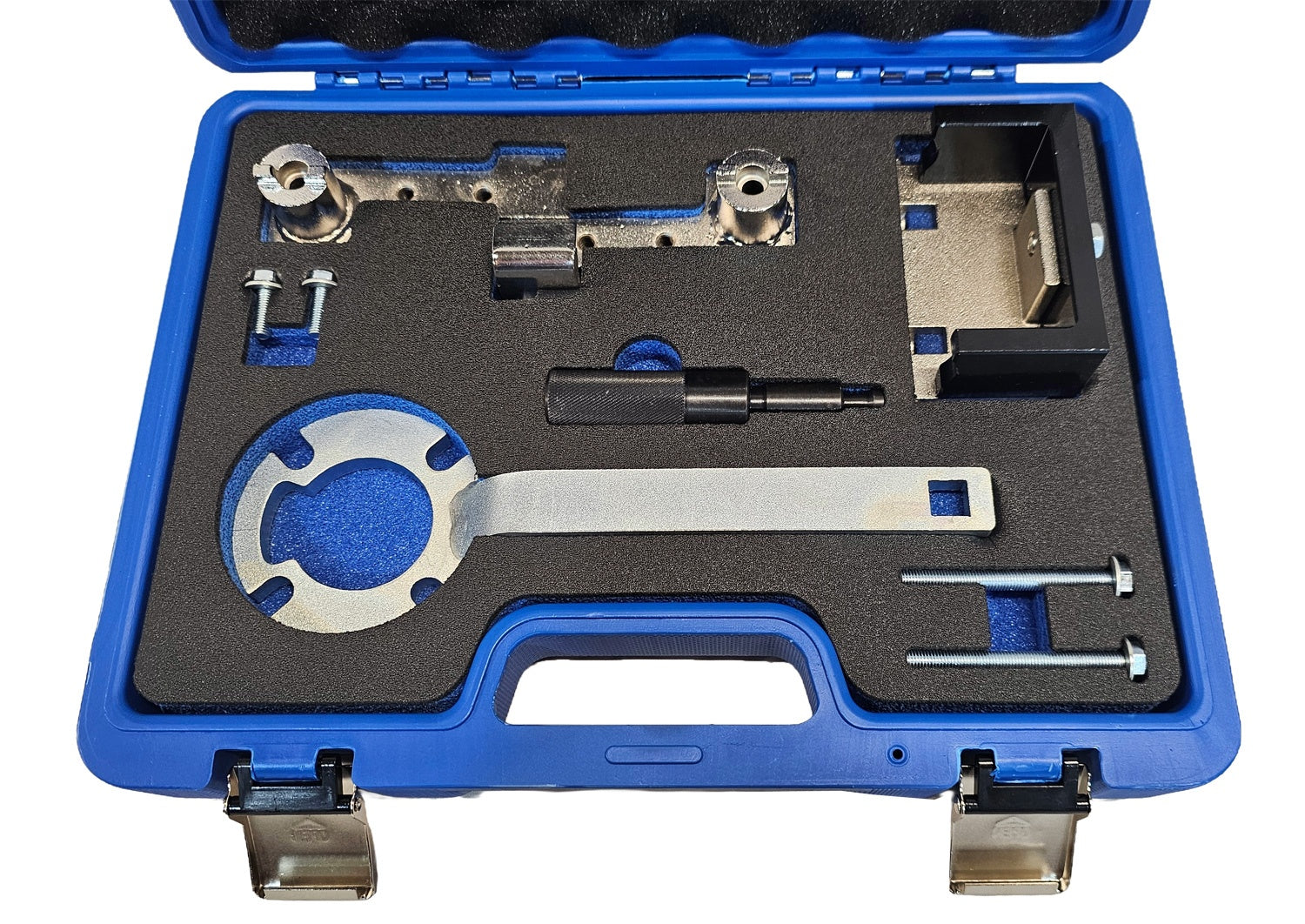

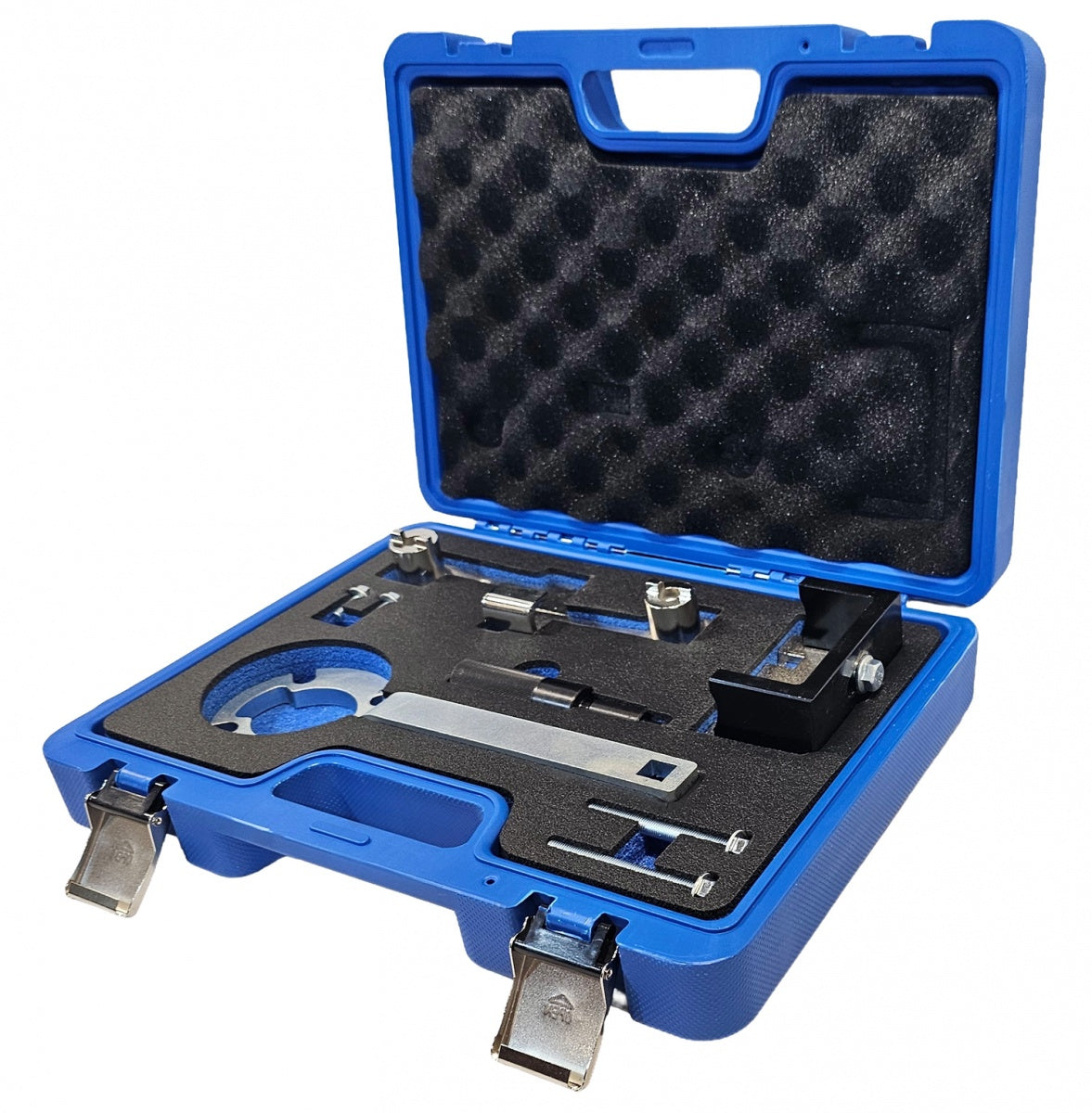

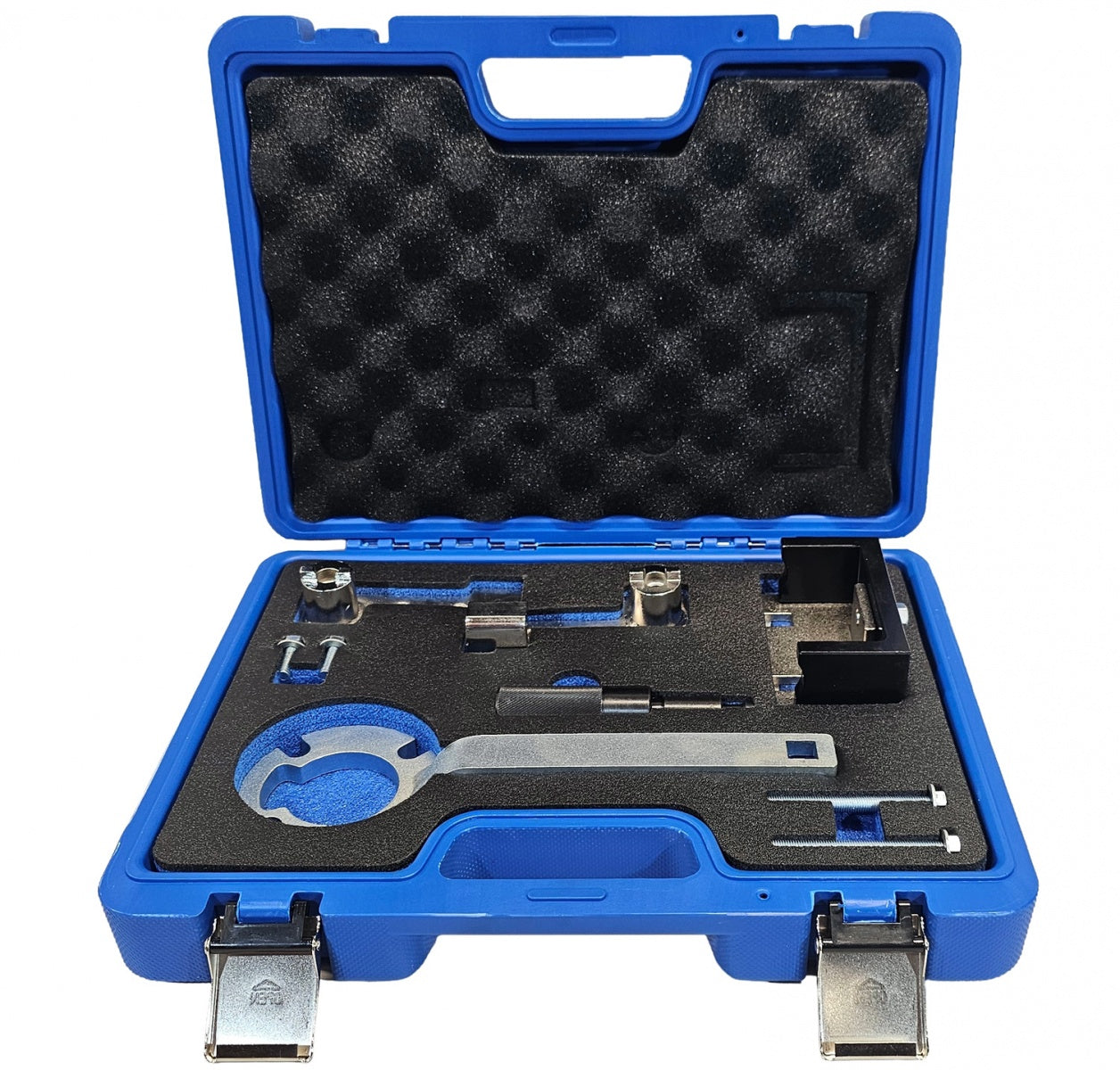

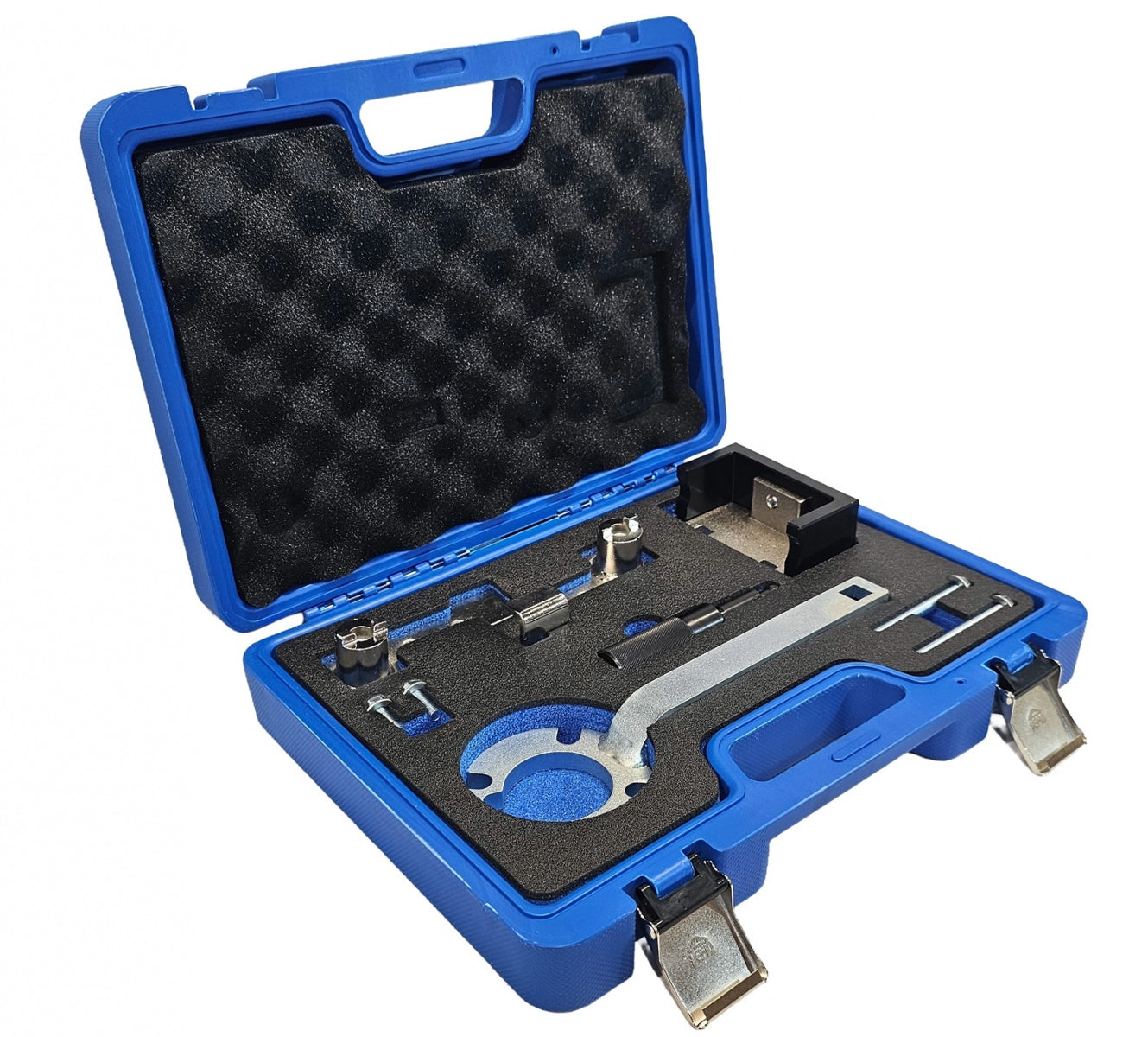

Kit contents

• Crankshaft pulley holding tool (OEM 999 5433 / 303-1179)
• Camshaft alignment tool (OEM 303-1178)
• Crankshaft alignment tool (OEM 303-1182)
• Camshaft holder (OEM 303-1183)

Technical specifications

OEM reference numbers by brand:

• OEM 999 5433 / 303-1179
• OEM 303-1178
• OEM 303-1182
• OEM 303-1183
