CORDLESS HYDRAULIC PRESSING PLIERS FOR PEX PIPES | 18 V | 50 KN | NARROW HEAD FOR HARD-TO-REACH PLACES | WITHOUT BATTERY (YT-21734)

Index
YT-21734
Barcode
5906083134777
Unit of measure
PCE
Volume
34.944
Weight
9.2

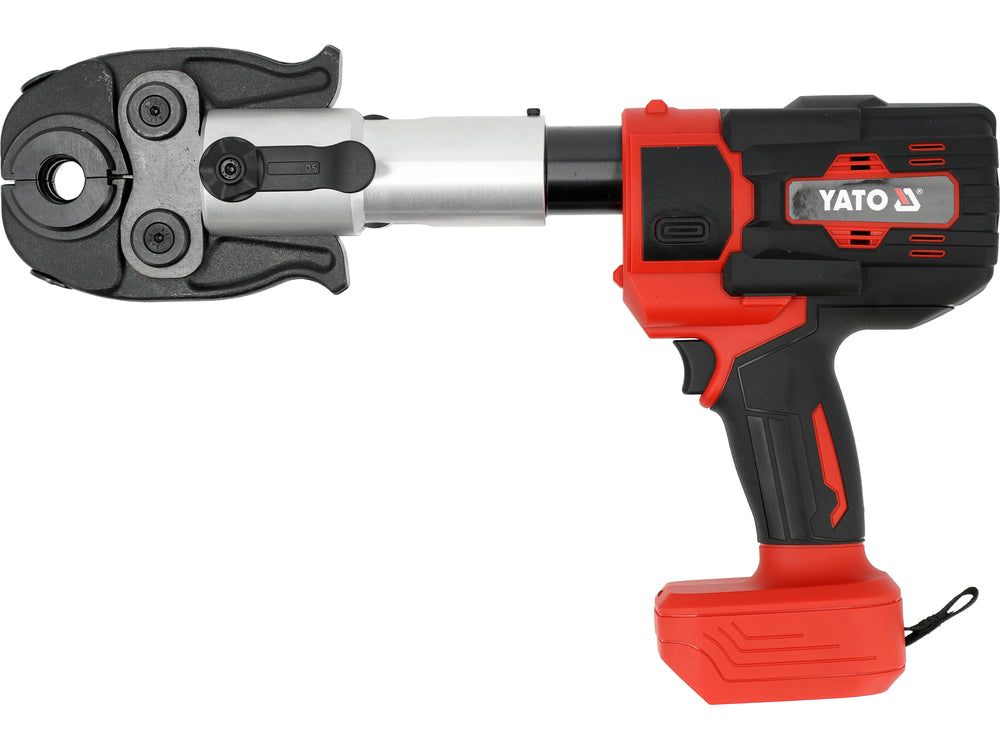

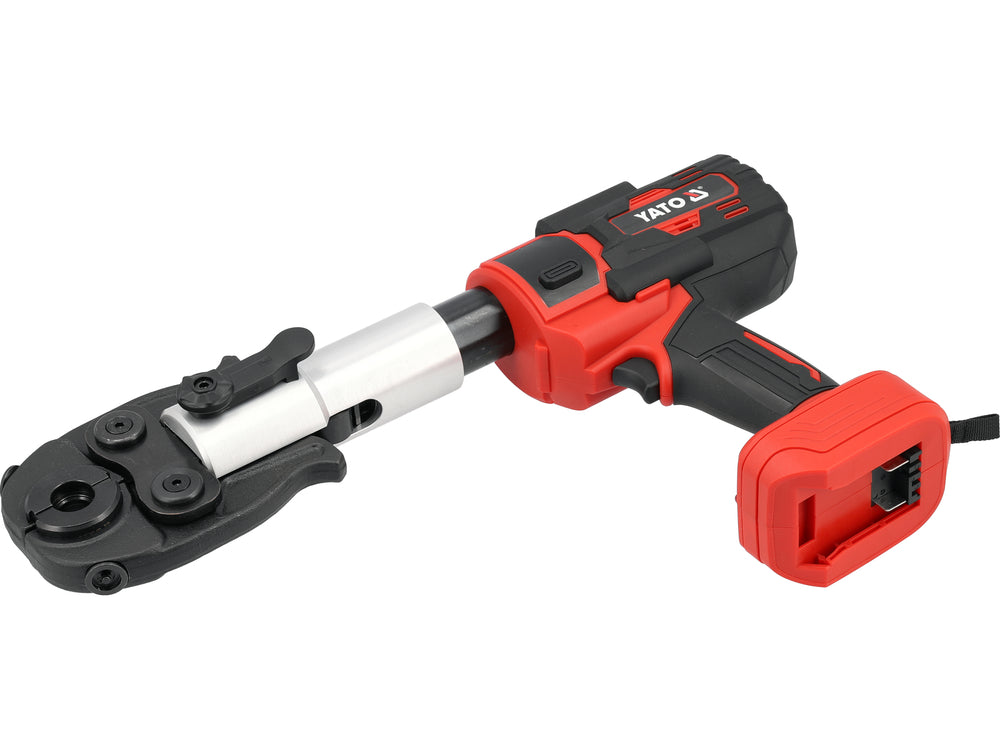

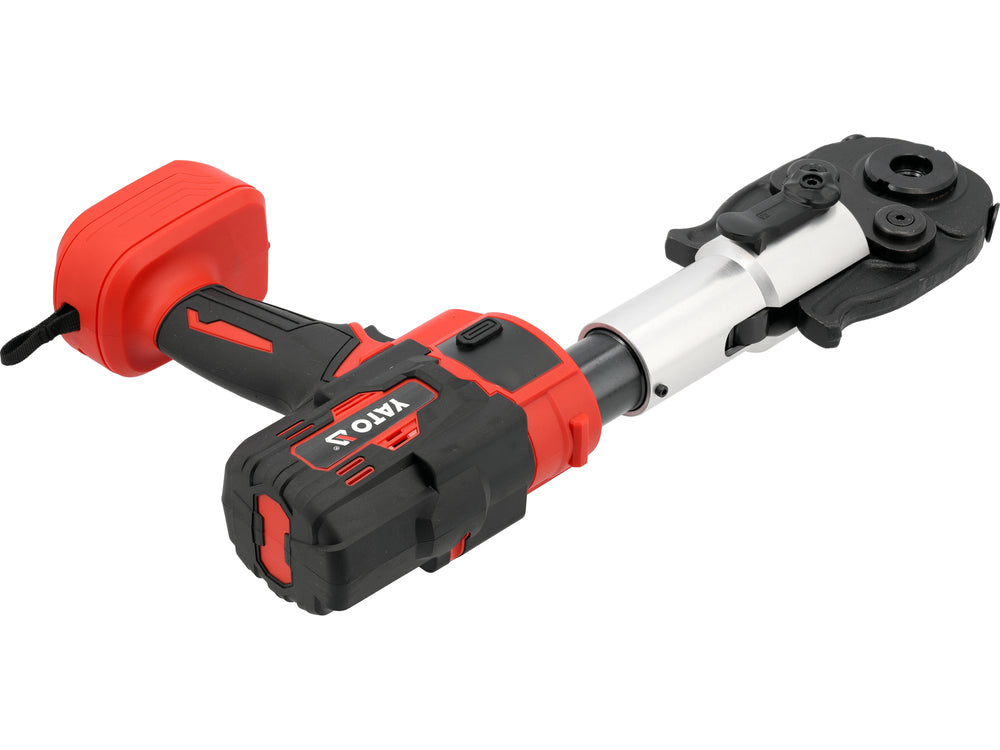

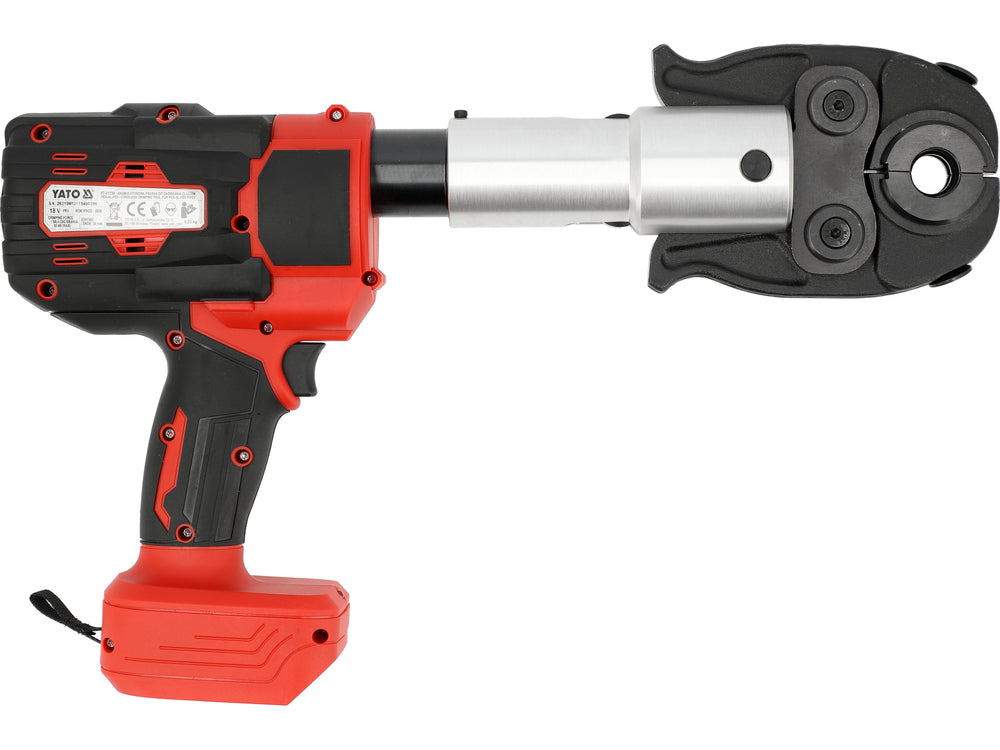

The battery-powered hydraulic crimper YT-21734 is designed for making durable connections in water and heating installations with PEX-AL-PEX multilayer pipes. The device supports the most popular crimp profiles U and TH, and with a crimping force of 50 kN, it enables quick, repeatable, and precise connections in accordance with installation system requirements.

Key features:

18 V Li-Ion battery power*
efficient brushed motor
maximum crimping force: 32 kN
piston stroke: 30 mm

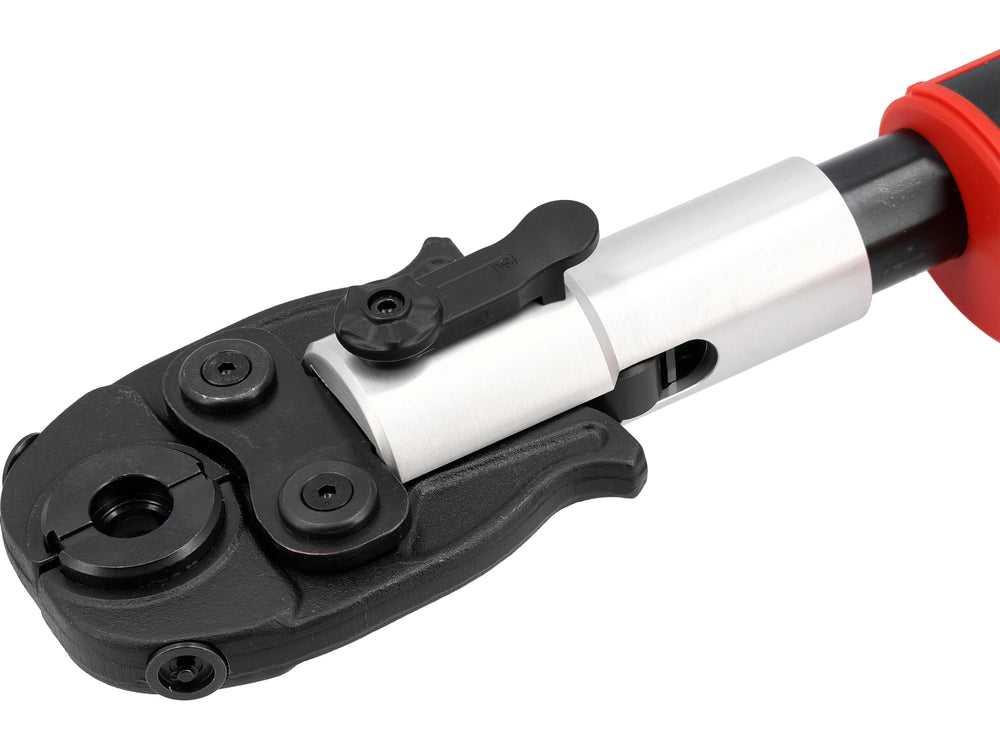

narrow head for access in hard-to-reach places
*The tool is supplied without a battery and charger. Compatible batteries for the YATO 18 V system: YT-828461 (2 Ah), YT-828462 (3 Ah), YT 828463 (4 Ah), YT-828464 (6 Ah), and YT-828465 (9 Ah).

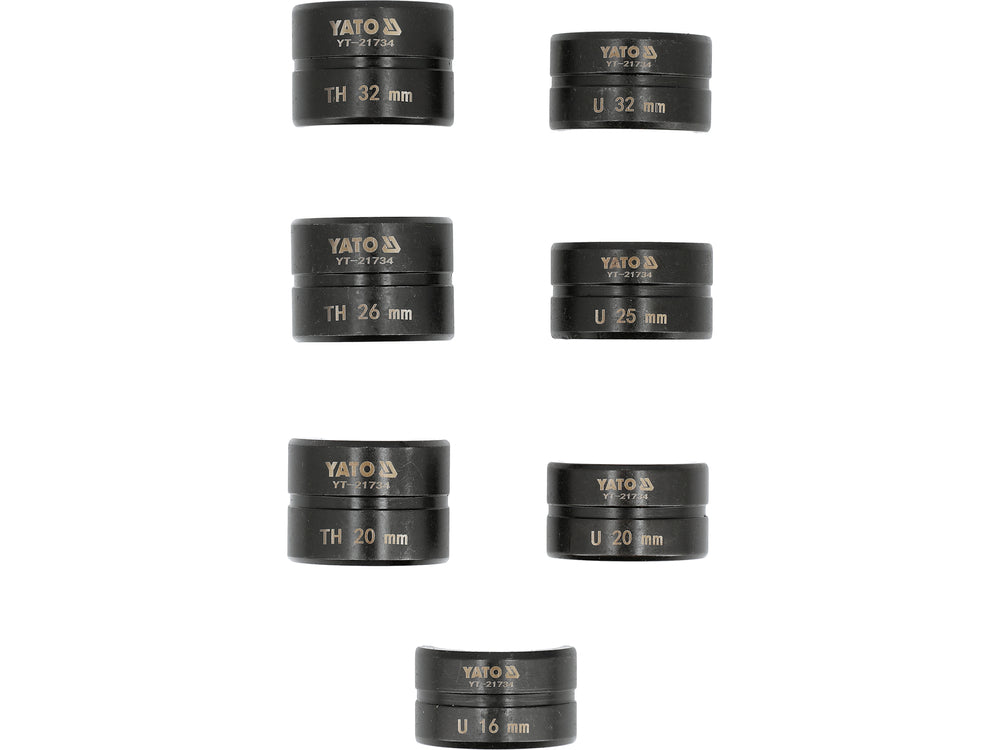

Supported profiles and crimp sizes:

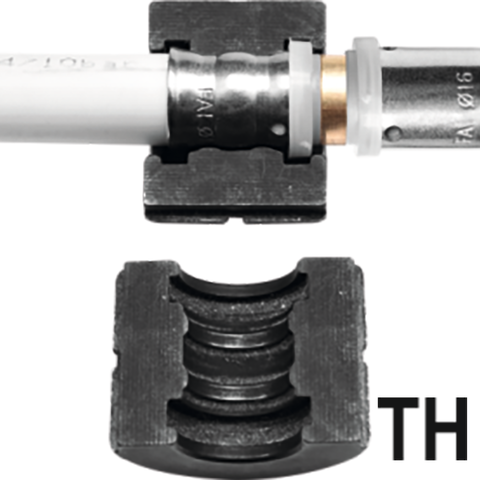

TH Profile

16 mm
20 mm
26 mm
32 mm
U Profile

16 mm
20 mm
25 mm
32 mm

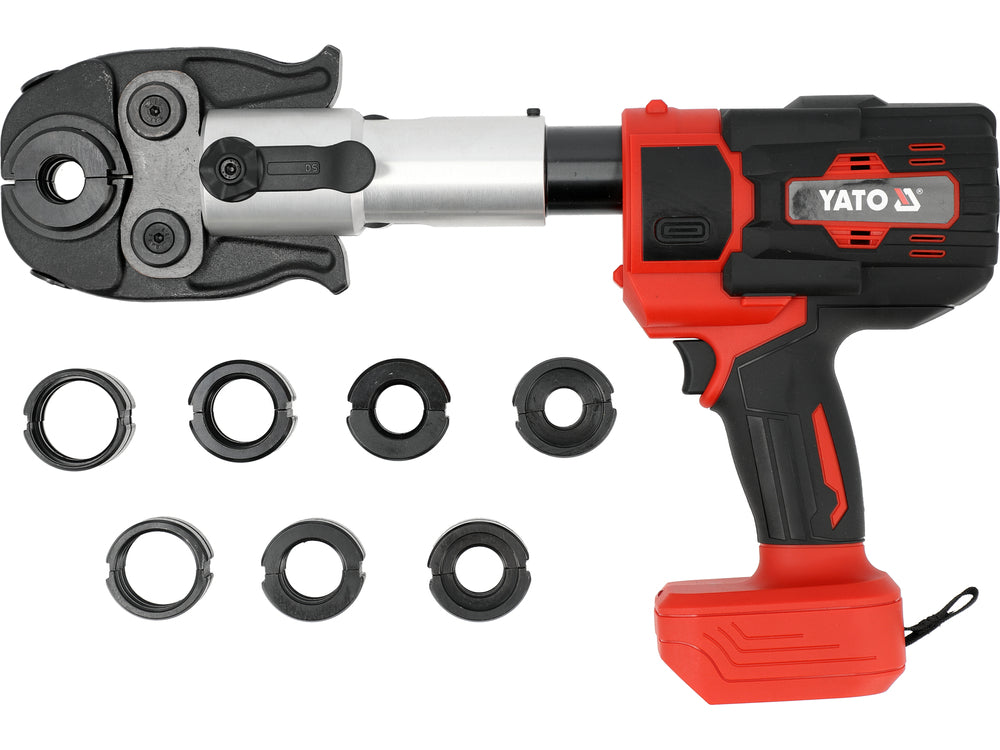

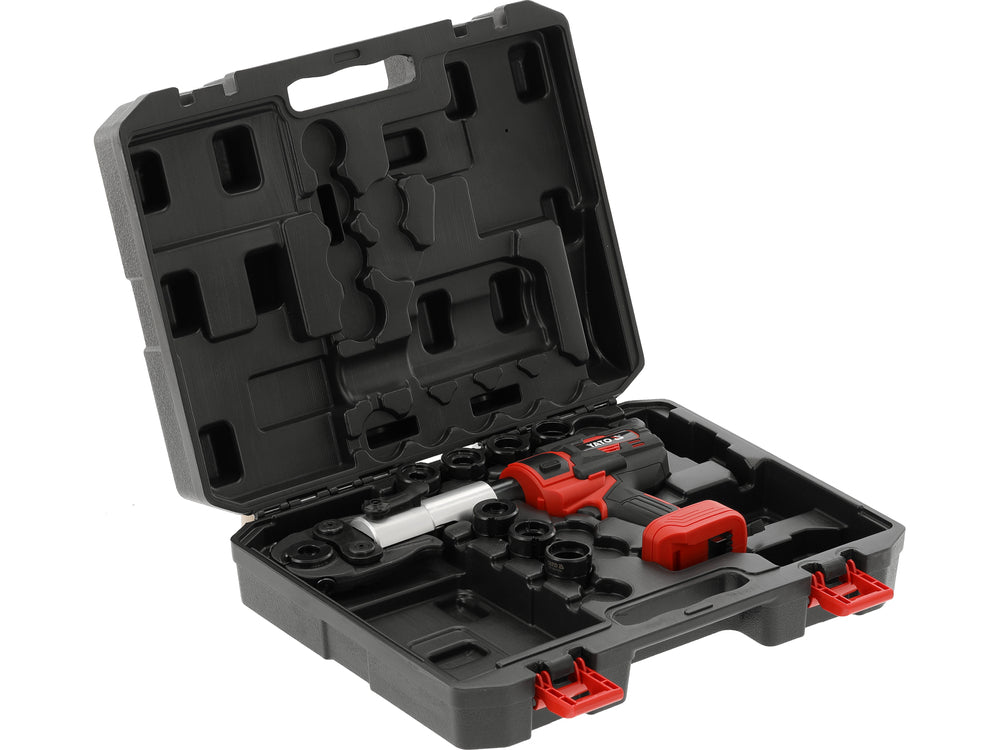

Set contents:

hydraulic crimper
crimping jaws
4 TH dies: 16 / 20 / 26 / 32 mm
4 U dies: 16 / 20 / 25 / 32 mm
Technical specifications:

voltage: 18 V DC
crimping force: 50 kN
piston stroke: 30 mm
Compatibility with dies: YT-21752, YT-21753, YT-21754, YT-21755, YT-21756, YT-21757.

Applications:

installation of water systems
installation of central heating systems
plumbing and installation work
crimping connectors in PEX-AL-PEX systems
